Terraform Modularization for DRY Deployment from DEV to UAT and Input Infrastructure Information

terraform

Contents

Trouble we have in Intermediate Terraform Project Stage

Although we might have

  • Modularized our resources by the logically grouped files like loadbalancer.tf, networking.tf, rds.tf, etc, and then;

  • Created all the related resources, policies, and even imported the output's from one module to another one;

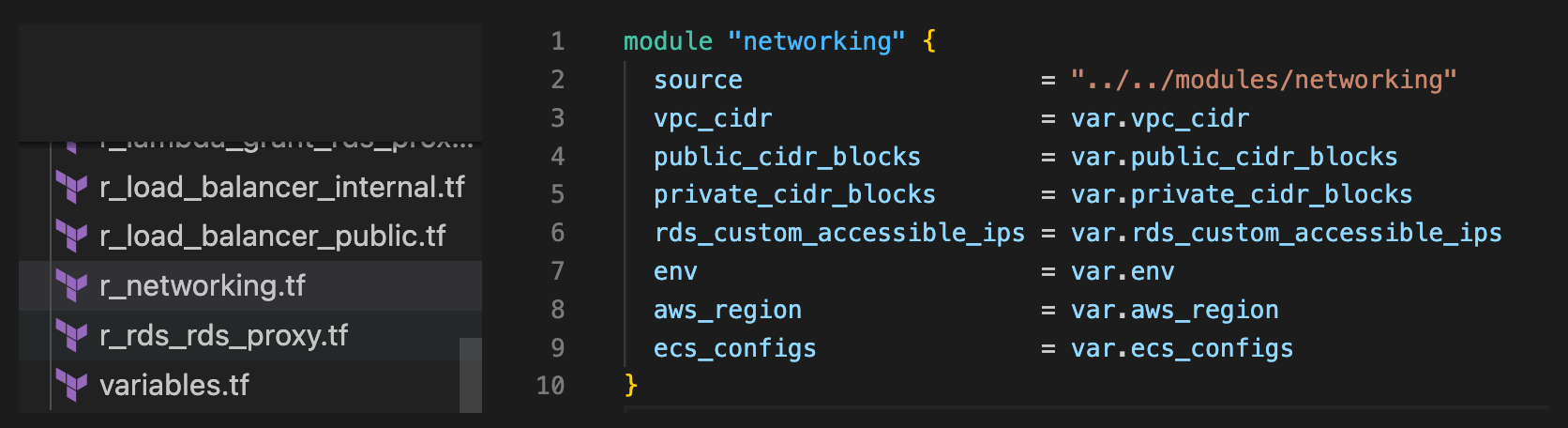

We might still be facing an intermediate situation like the following:

  • This works fine at the beginning, but we come across the trouble when moving from DEV to UAT, all those r_xxx.tf files have to be copied to UAT.

  • Not only that, any changes in an r_xxx.tf file must be done twice, and even thrice if we have PROD as well.

Further Modularization

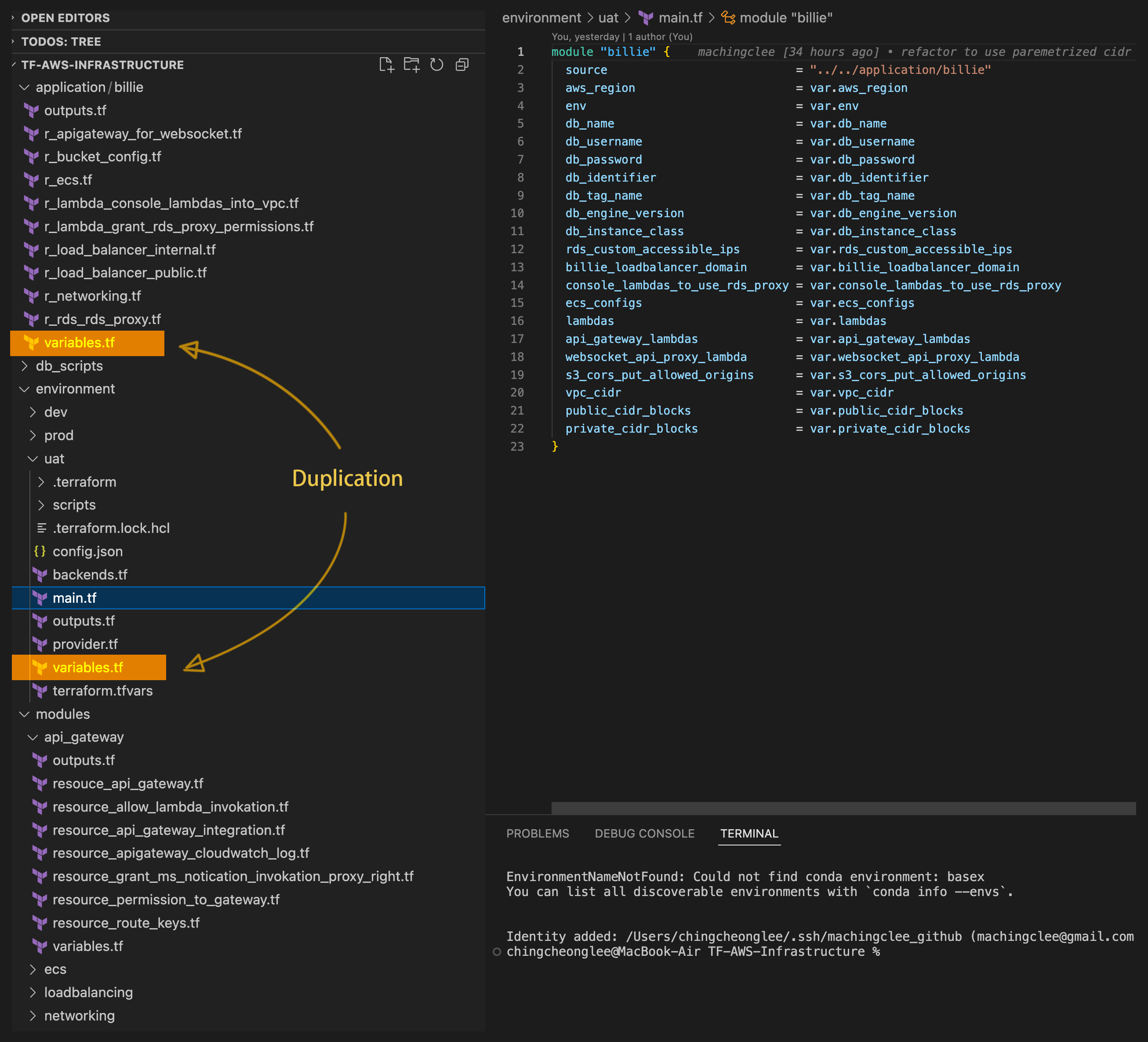

The new structure

  • We have only one module in dev/, uat/ and prod/, this makes sure all environments share exactly the same infrastructure.

  • Now the only code duplication are the variables.tf files, which is to determine the interface of terraform.tfvars.

  • The duplication is acceptable because in DEV, UAT and PROD it is likely to have slightly different infrastructures.

  • Note that we have kept the nesting level application/billie/r_xxx.tf the same as environment/uat/r_xxx.tf relative to the modules folder in order to keep the module source attribute the same (minimize code changes).

Internal state transition

Now problem arises, in the past we have terraform apply-ed once, aws resources have been created and the aws resource ids have been bound to our internal state.

An id in an internal state follows the following pattern, let's take a networking module as an example:

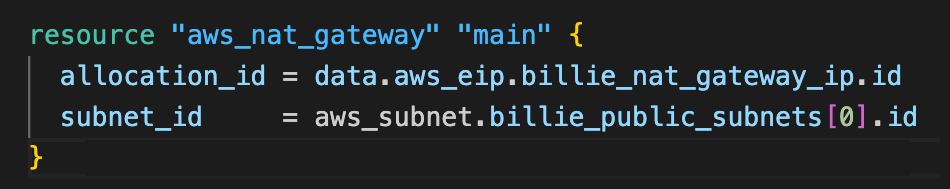

and in this module we have a resource:

then terraform creates an id in the internal state

module.networking.aws_nat_gateway.main

and bind it to the aws resource id. The binding is saved in the terraform cloud.

Now because of one more level of modularization, the new internal state id should be

module.billie.module.networking.aws_nat_gateway.main

Namely, we simply prepend all the existing id's by module.billie. This can be achieved by:

Transition script
RESOURCES=$(terraform state list)
NEW_MODULE="module.billie"

# Move each resource to the new module structure
for RESOURCE in $RESOURCES; do
  # Skip if already in module.billie
  if [[ $RESOURCE == "$NEW_MODULE.*" ]]; then
    echo "Skipping $RESOURCE (already in $NEW_MODULE)"
    continue
  fi

  # Create the new address with module.main prefix
  NEW_RESOURCE="$NEW_MODULE.$RESOURCE"
  terraform state mv "$RESOURCE" "$NEW_RESOURCE"
done

echo "Migration completed!"
echo "Run 'terraform plan' to verify the migration."

Be patient about the process as each terraform state mv makes an API call to terraform cloud and each call takes 3 to 5 seconds.

Critical Mistake to Avoid

Make sure to change the namespace

Since we are using terraform cloud, make sure to change

terraform {
  cloud {
    organization = "billie"
    workspaces {
      name = "billie-uat"
    }
  }
}

Otherwise we will remove the existing resources in DEV and create resources in UAT.

Output After Further Modularization

New outputs.tf

Before further modularization we should have created a map that consists of all the value we wish to export:

// application/billie/outputs.tf

locals {
  // group and post-process all the resource data here
  ...
  rds_proxy_endpoint           = module.rds_and_rds_proxy.rds_proxy_endpoint
  rds_endpoint                 = module.rds_and_rds_proxy.rds_endpoint
  billie_lambda_function_sg_id = module.networking.billie_lambda_function_sg.id
  billie_private_subnet_ids    = module.networking.billie_private_subnets[*].id
  ...
}

output "config" {
  value = {
    internal_loadbalancer_dns_name = local.internal_loadbalancer_dns_name
    environment                    = local.environment
    ecs_meta                       = local.ecs_meta
    external_loadbalancer_endpoint = local.external_loadbalancer_endpoint
    internal_loadbalancer_endpoint = local.internal_loadbalancer_endpoint
    billie_lambda_function_sg_id   = local.billie_lambda_function_sg_id
    billie_private_subnet_ids      = local.billie_private_subnet_ids
    websocket_apigateway = {
      api_gateway_id               = local.websocket_api_id
      api_gateway_name             = local.websocket_api_name
      api_gateway_connect_endpoint = local.websocket_api_connect_endpoint
      api_gateway_push_endpoint    = local.websocket_api_callback_url
      apigateway_proxy_function    = module.websocket_apigateway.apigateway_proxy_function
    }
    database = {
      endpoints = {
        public_endpoint = local.rds_endpoint
        proxy_endpoint  = local.rds_proxy_endpoint
      }
      credentials = local.database
    }
    internal_loadbalancer_dns_name = local.database
  }
}

Now in environment/uat/outputs.tf, our new terraform output is as simple as

// environment/uat/outputs.tf
output "config" {
  value = module.billie.config
}
Output script

If we execute

# in environment/uat
terraform output -json | jq -r 'map_values(.value)' > config.json

We get a config.json in environment/uat:

{
  "config": {
    "internal_loadbalancer_dns_name": "internal-billie-internal-loadbalancer-uat-720307182.ap-southeast-2.elb.amazonaws.com",
    "environment": "uat",
    "ecs_meta": {
      "billie-ai-inference": {
        "cloudwatch_log_group_url": "https://console.aws.amazon.com/cloudwatch/home?region=ap-southeast-2#logsV2:log-groups/log-group/$252Fecs$252Fbillie-ai-inference-uat-v2",
        "cluster_name": "billie-ai-inference-uat-v2",
        "container_name": "billie-ai-inference-uat-v2",
        "image_name": "wb-ai-billie",
        "image_registry": "798404461798.dkr.ecr.ap-southeast-2.amazonaws.com",
        "service_name": "billie-ai-inference-uat-v2",
        "task-family": "terraform-billie-ai-inference-uat-v2",
        "task_execution_role_arn": "arn:aws:iam::798404461798:role/ecsTaskExecutionRole",
        "task_role_arn": "arn:aws:iam::798404461798:role/billie-ai-inference-uat-v2-task-role"
      },
      ...
    }
    ...
}

We can sync this json to a non-public s3-bucket and let a authentication-protected lambda accesses this json object.

Visualization of the resources

We may make a script to directly upload this json into a database. Only authorized person can get this data in their frontend to visualize everything we need.

In my case I have created a page in react and made use of this json file to generate:
