June 29, 2024

K8S Basics Part III: EKS and Container Logging of Pods in CloudWatch via Fluentbit

aws

k8s

Creation of EKS Clsuter

EKS > Create Cluster
  • When creating a new cluster we will be stucked by providing a new VPC:

    which will be being named by eskVPC.

Cloudformation Stack for Createing eskVPC

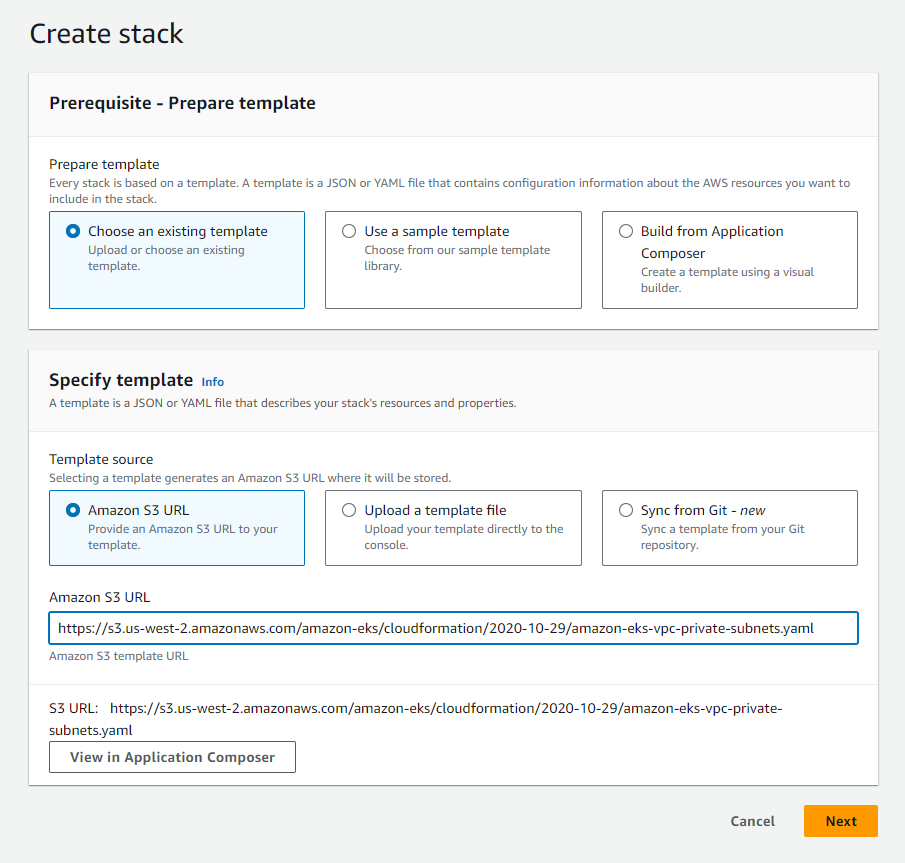

  • Let's create a cloudformation stack of VPC's as follow:

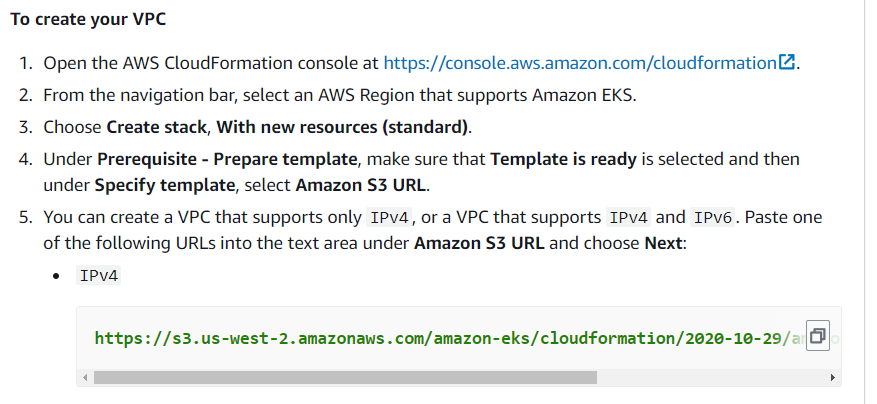

  • To get the S3 URL let's go to this page (Creating a VPC) and copy the S3 URL listed there:

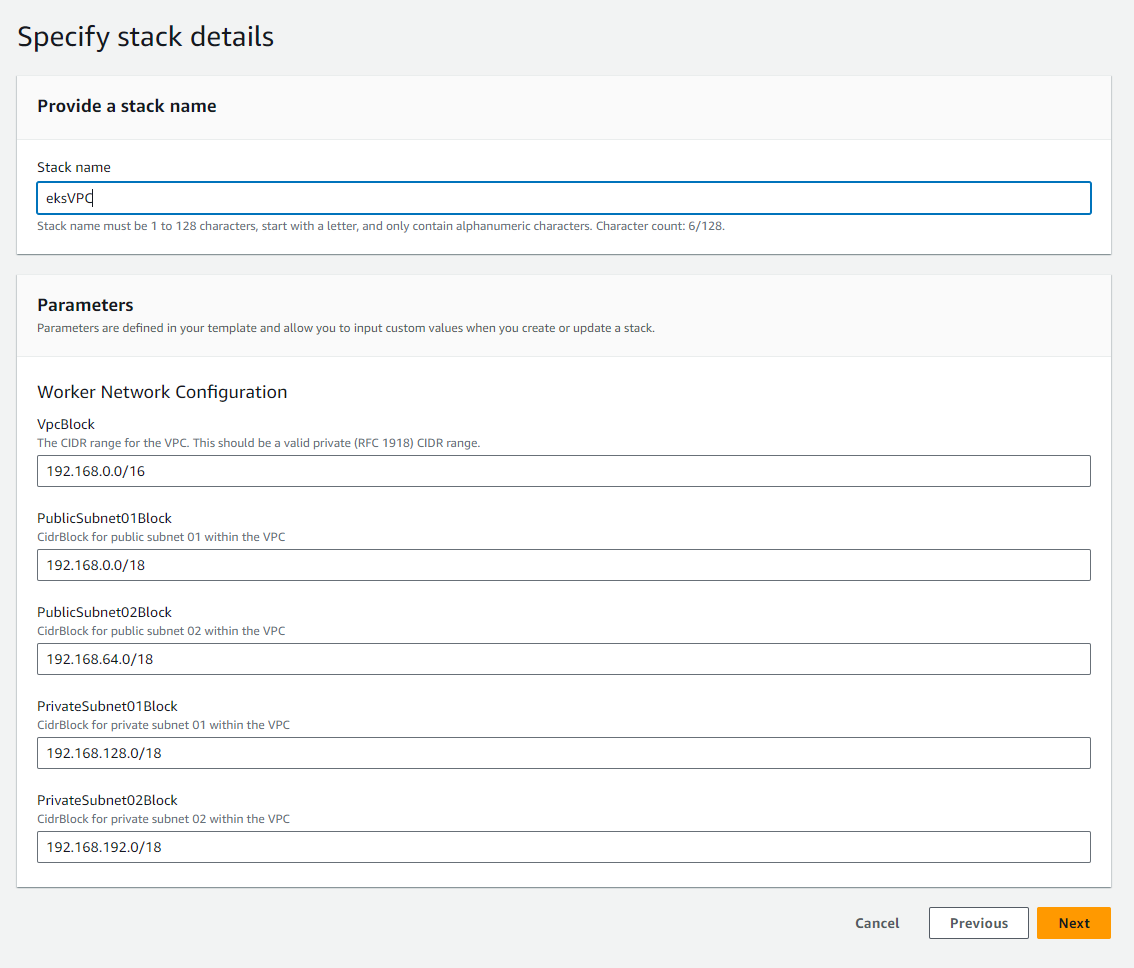

  • Click Next for the creation of stack, then give it a name and leave the rest as default

    finally click next and submit.

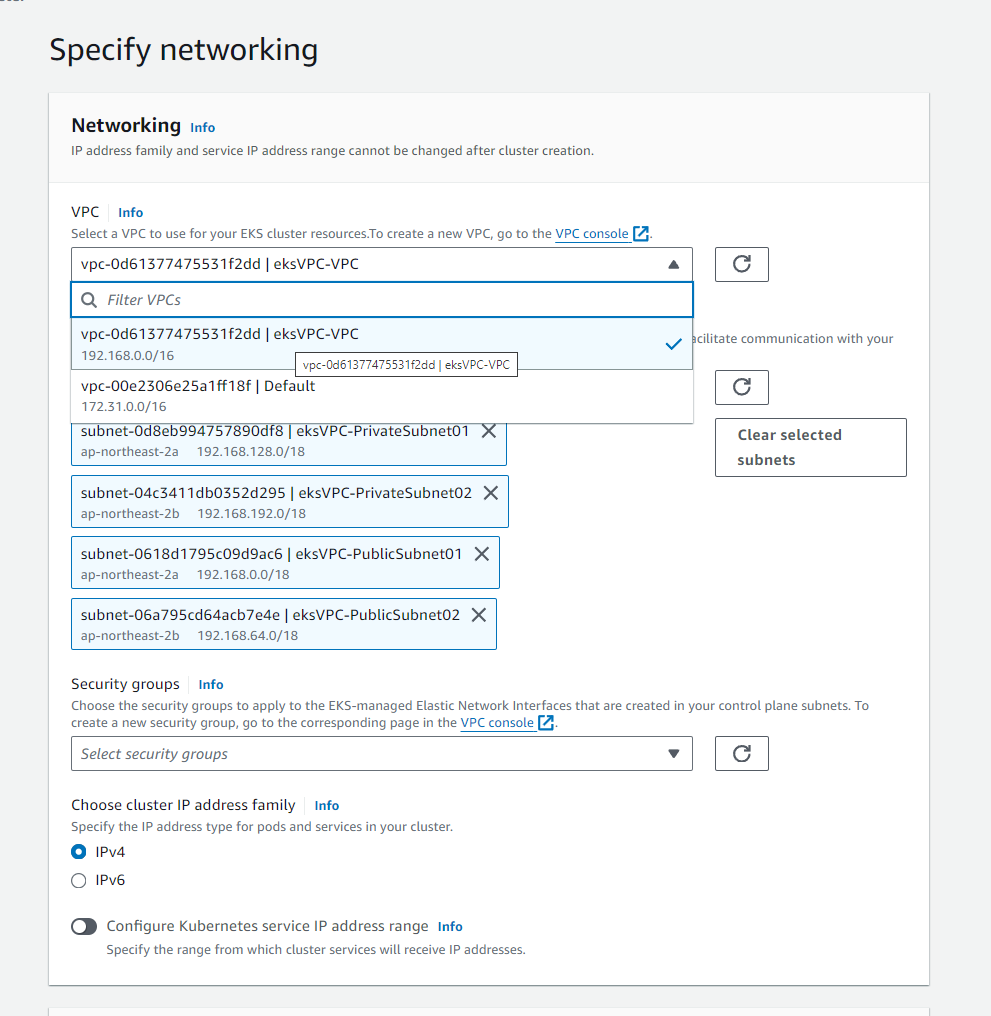

Back to Creating Cluster

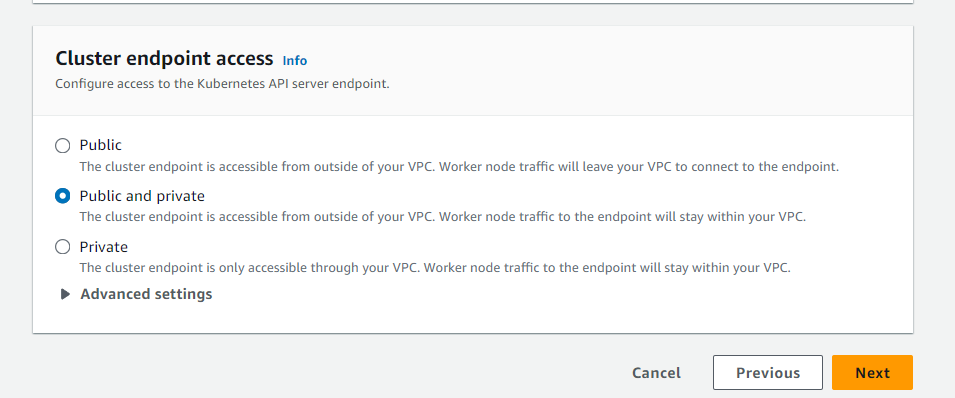

Select public and private and next as some pod will be private and some pod will be public:

Config the kubectl of Local Computer to Control EKS Cluster Instead of Minikube

  • In the past we have been controlling a faked cluster inside minikube. How is kubectl configured to achieve this? The config file lies in ~/.kube.

  • Let's copy config to config.minikube for backup (in case we want to use minikube for further experiment, we can switch back)

  • Now let's update ~/.kube/config to communicate with Cluster in EKS (here the name should be found as well in the aws console):

    aws eks --region ap-northeast-2 update-kubeconfig --name kub-dep-demo

    We should see the result:

    Added new context arn:aws:eks:ap-northeast-2:562976154517:cluster/kub-dep-demo to C:\Users\machingclee\.kube\config
  • We can run minikube delete now to delete the unused minikube (in the form of docker image or virtualbox).

Create Worker Node

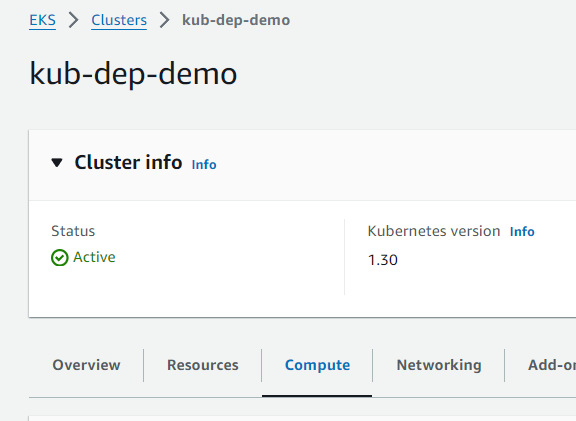

EKS > Clusters > cluster-name > Compute Tab
  • Let's click on the Compute tab:

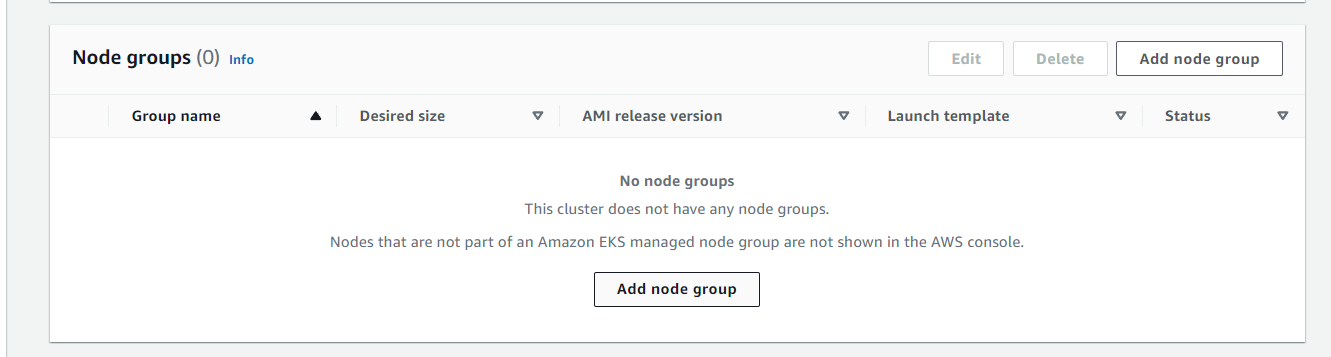

  • When we scroll down we should see nothing on the node groups, let's add at least one:

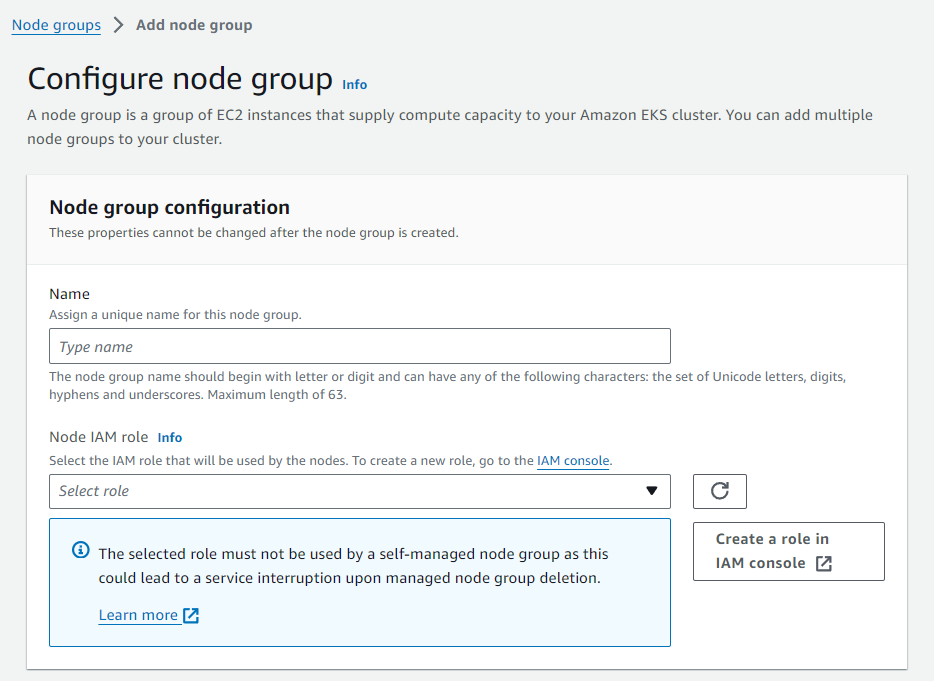

  • In the first page we have Node IAM role:

    This role must be created by us, any default selection will eventually fail in the creation step, let's create it in the next section:

Create an EksNodeGroup Role

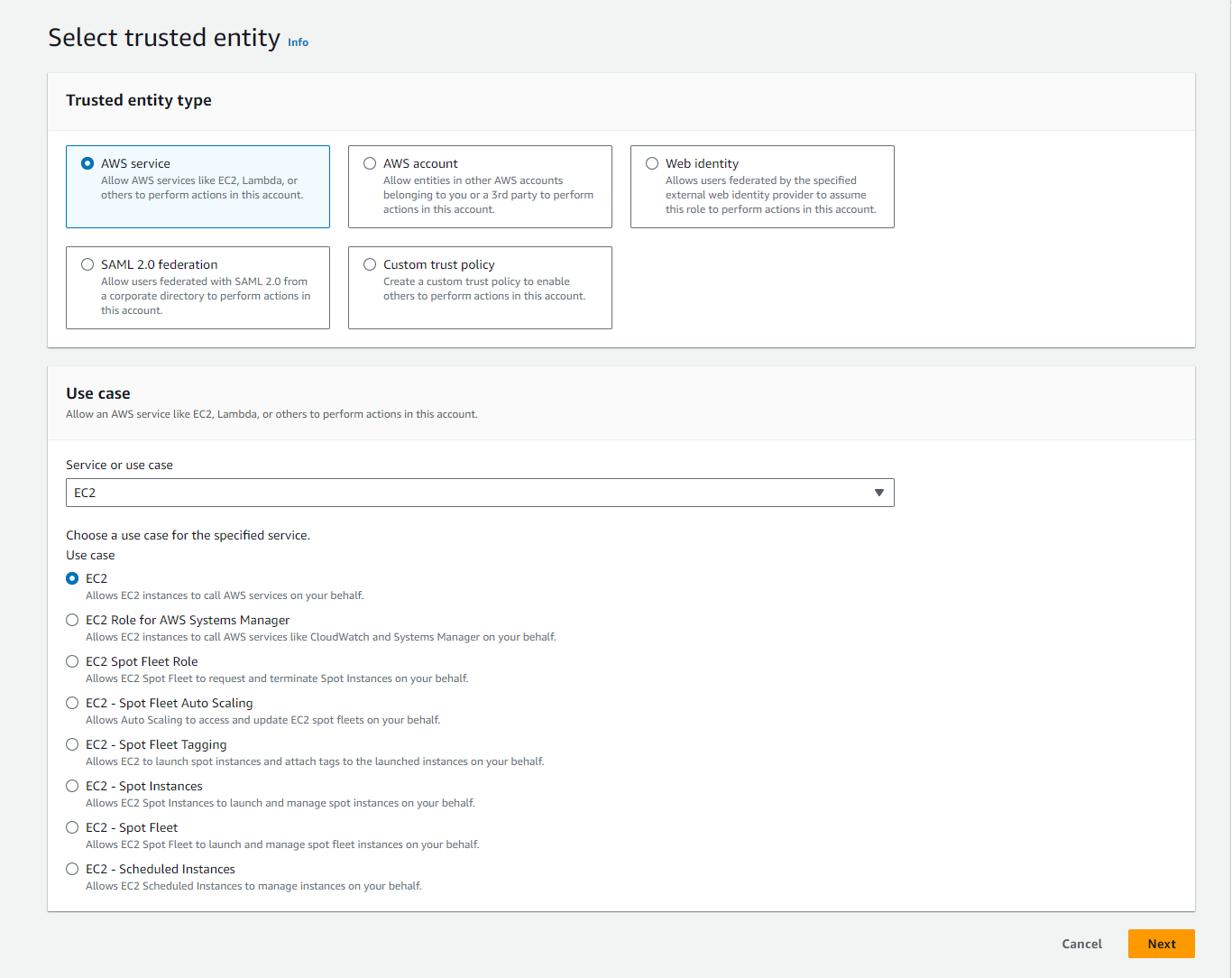

  • Go to IAM > Create Role, then choose EC2:

  • In the next step, we need to add these 4 roles for the nodes in the node group

    Here CNI stands for Container Network Interface. The CloudWatchLogsFullAccess is used to let worker nodes to forward the application log of each pod to cloudwatch.

Back to Add Node Group

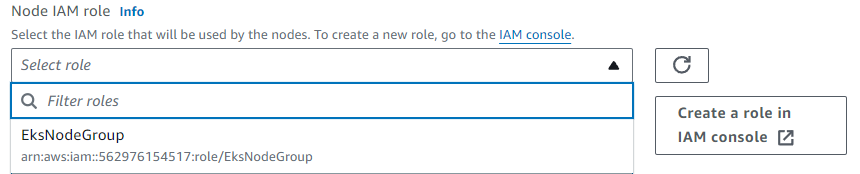

  • Now we can choose our EksNodeGroup and click Next.

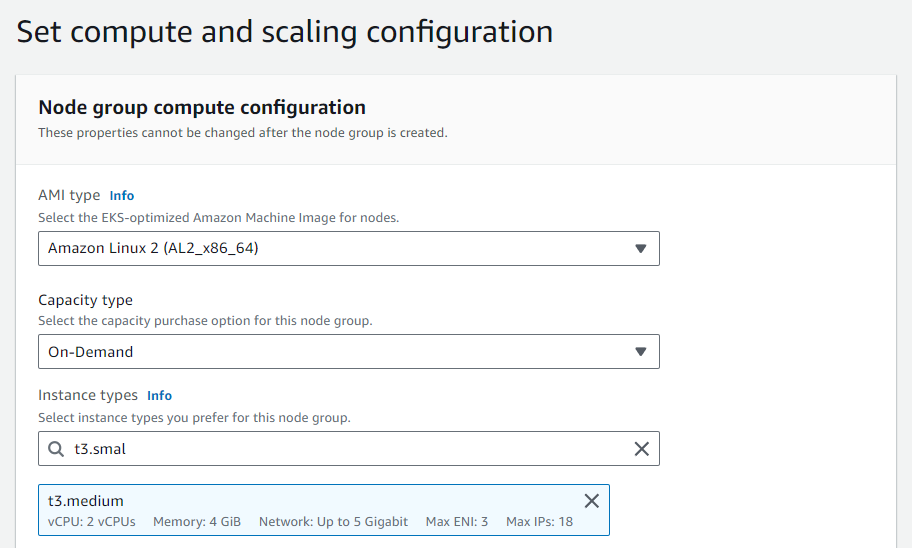

  • Don't use t3.micro as it may possibly fail in deployment, at least use t3.smaller:

Test the Deployment

Repository
Experiment
  1. Build your docker image of auth-api and users-api with your own tag.

  2. Deploy them onto docker-hub.

  3. Create a valid MongoDB URL and fill that into k8s/users.yaml.

  4. Execute to deploy everything kubectl apply -f k8s/auth.yaml -f k8s/users.yaml.

  5. kubectl get pods to see if all pods are running.

  6. If CrashLoopBackOff status were found, try to run kubectl logs <pod-name> to see all the std output, where all the error message should be found.

  7. Try to run k get services, if everything is done successfully, we should see:

    NAME            TYPE           CLUSTER-IP       EXTERNAL-IP                                                                    PORT(S)        AGE
    auth-service    ClusterIP      10.100.157.135   <none>                                                                         3000/TCP       2m18s
    kubernetes      ClusterIP      10.100.0.1       <none>                                                                         443/TCP        117m
    users-service   LoadBalancer   10.100.80.215    a338660d2fcab498391efddae4a2426f-1774363841.ap-northeast-2.elb.amazonaws.com   80:31023/TCP   2m18s

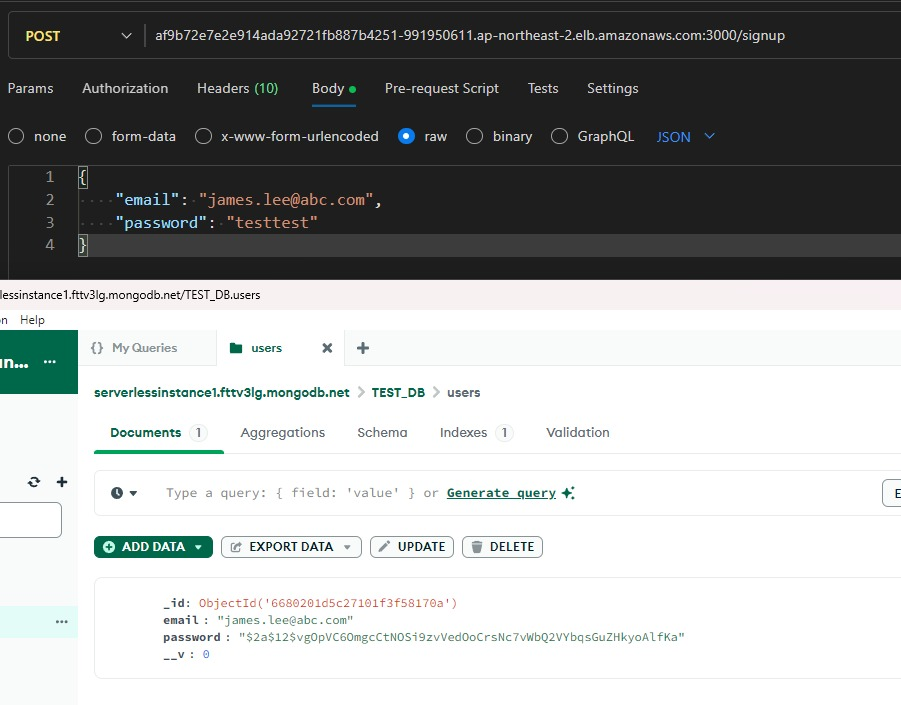

  8. And we are done. The user-service is exposed to the net and auth-service is hidden inside of the k8s cluster!

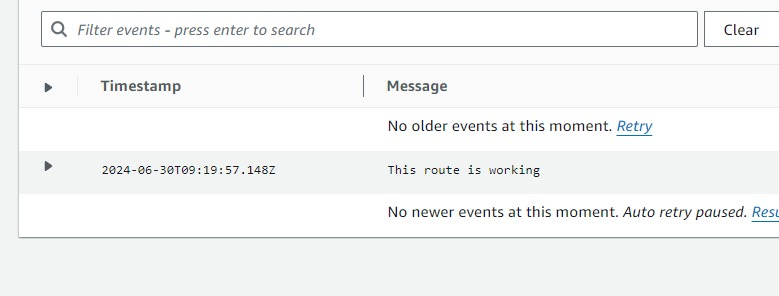

EKS Pod Logging in CloudWatch

  • From official documentation quick-start:

    kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.15.1/cert-manager.yaml
  • As instructed from the quick-start we download the yaml file by

    https://raw.githubusercontent.com/aws-samples/amazon-cloudwatch-container-insights/main/k8s-quickstart/cwagent-operator-rendered.yaml

    However, we modify it to get rid of all metrics-related logging since our primary focuses are the logging of the applications inside of the pods.

  • The modified configMap now becomes:

    Click To View the Large YAML
    # cloudwatch.yml
    ---
    # create amazon-cloudwatch namespace
    apiVersion: v1
    kind: Namespace
    metadata:
      name: amazon-cloudwatch
      labels:
        name: amazon-cloudwatch

    ---

    apiVersion: v1
    kind: ServiceAccount
    metadata:
      name: cloudwatch-agent
      namespace: amazon-cloudwatch

    ---

    apiVersion: v1
    kind: ConfigMap
    metadata:
      name: fluent-bit-config
      namespace: amazon-cloudwatch
      labels:
        k8s-app: fluent-bit
    data:
      fluent-bit.conf: |
        [SERVICE]
            Flush                     5
            Grace                     30
            Log_Level                 error
            Daemon                    off
            Parsers_File              parsers.conf
            storage.path              /var/fluent-bit/state/flb-storage/
            storage.sync              normal
            storage.checksum          off
            storage.backlog.mem_limit 5M
        @INCLUDE application-log.conf

      application-log.conf: |
        [INPUT]
            Name                tail
            Tag                 application.*
            Exclude_Path        /var/log/containers/cloudwatch-agent*, /var/log/containers/fluent-bit*, /var/log/containers/aws-node*, /var/log/containers/kube-proxy*, /var/log/containers/cert-manager*
            Path                /var/log/containers/*.log
            multiline.parser    docker, cri
            DB                  /var/fluent-bit/state/flb_container.db
            Mem_Buf_Limit       50MB
            Skip_Long_Lines     On
            Refresh_Interval    10
            Rotate_Wait         30
            storage.type        filesystem
            Read_from_Head      ${READ_FROM_HEAD}

        [INPUT]
            Name                tail
            Tag                 application.*
            Path                /var/log/containers/fluent-bit*
            multiline.parser    docker, cri
            DB                  /var/fluent-bit/state/flb_log.db
            Mem_Buf_Limit       5MB
            Skip_Long_Lines     On
            Refresh_Interval    10
            Read_from_Head      ${READ_FROM_HEAD}

        [INPUT]
            Name                tail
            Tag                 application.*
            Path                /var/log/containers/cloudwatch-agent*
            multiline.parser    docker, cri
            DB                  /var/fluent-bit/state/flb_cwagent.db
            Mem_Buf_Limit       5MB
            Skip_Long_Lines     On
            Refresh_Interval    10
            Read_from_Head      ${READ_FROM_HEAD}

        [FILTER]
            Name                kubernetes
            Match               application.*
            Kube_URL            https://kubernetes.default.svc:443
            Kube_Tag_Prefix     application.var.log.containers.
            Merge_Log           On
            Merge_Log_Key       log_processed
            K8S-Logging.Parser  On
            K8S-Logging.Exclude Off
            Labels              Off
            Annotations         Off
            Use_Kubelet         On
            Kubelet_Port        10250
            Buffer_Size         32

        [OUTPUT]
            Name                cloudwatch_logs
            Match               application.*
            region              ${AWS_REGION}
            log_group_name      fallback-group
            log_stream_prefix   fallback-stream
            log_key             log
            auto_create_group   On
            log_group_template  $kubernetes['namespace_name']
            log_stream_template $kubernetes['pod_name'].$kubernetes['container_name']
            extra_user_agent    container-insights

      parsers.conf: |
        [PARSER]
            Name                syslog
            Format              regex
            Regex               ^(?<time>[^ ]* {1,2}[^ ]* [^ ]*) (?<host>[^ ]*) (?<ident>[a-zA-Z0-9_\/\.\-]*)(?:\[(?<pid>[0-9]+)\])?(?:[^\:]*\:)? *(?<message>.*)$
            Time_Key            time
            Time_Format         %b %d %H:%M:%S

        [PARSER]
            Name                container_firstline
            Format              regex
            Regex               (?<log>(?<="log":")\S(?!\.).*?)(?<!\\)".*(?<stream>(?<="stream":").*?)".*(?<time>\d{4}-\d{1,2}-\d{1,2}T\d{2}:\d{2}:\d{2}\.\w*).*(?=})
            Time_Key            time
            Time_Format         %Y-%m-%dT%H:%M:%S.%LZ

        [PARSER]
            Name                cwagent_firstline
            Format              regex
            Regex               (?<log>(?<="log":")\d{4}[\/-]\d{1,2}[\/-]\d{1,2}[ T]\d{2}:\d{2}:\d{2}(?!\.).*?)(?<!\\)".*(?<stream>(?<="stream":").*?)".*(?<time>\d{4}-\d{1,2}-\d{1,2}T\d{2}:\d{2}:\d{2}\.\w*).*(?=})
            Time_Key            time
            Time_Format         %Y-%m-%dT%H:%M:%S.%LZ
    ---

    apiVersion: v1
    kind: ConfigMap
    metadata:
      name: fluent-bit-windows-config
      namespace: amazon-cloudwatch
      labels:
        k8s-app: fluent-bit
    data:
      fluent-bit.conf: |
        [SERVICE]
            Flush                       5
            Log_Level                   error
            Daemon                      off
            net.dns.resolver            LEGACY
            Parsers_File                parsers.conf
        @INCLUDE application-log.conf

      application-log.conf: |
        [INPUT]
            Name                tail
            Tag                 application.*
            Exclude_Path        C:\\var\\log\\containers\\fluent-bit*, C:\\var\\log\\containers\\cloudwatch-agent*
            Path                C:\\var\\log\\containers\\*.log
            Parser              docker
            DB                  C:\\var\\fluent-bit\\state\\flb_container.db
            Mem_Buf_Limit       50MB
            Skip_Long_Lines     On
            Rotate_Wait         30
            Refresh_Interval    10
            Read_from_Head      ${READ_FROM_HEAD}

        [INPUT]
            Name                tail
            Tag                 application.*
            Path                C:\\var\\log\\containers\\fluent-bit*
            Parser              docker
            DB                  C:\\var\\fluent-bit\\state\\flb_log.db
            Mem_Buf_Limit       5MB
            Skip_Long_Lines     On
            Rotate_Wait         30
            Refresh_Interval    10
            Read_from_Head      ${READ_FROM_HEAD}

        [INPUT]
            Name                tail
            Tag                 application.*
            Path                C:\\var\\log\\containers\\cloudwatch-agent*
            Parser              docker
            DB                  C:\\var\\fluent-bit\\state\\flb_cwagent.db
            Mem_Buf_Limit       5MB
            Skip_Long_Lines     On
            Rotate_Wait         30
            Refresh_Interval    10
            Read_from_Head      ${READ_FROM_HEAD}

        [OUTPUT]
            Name                cloudwatch_logs
            Match               application.*
            region              ${AWS_REGION}
            log_group_name      fallback-group
            log_stream_prefix   fallback-stream
            log_key             log
            auto_create_group   On
            log_group_template  application-logs-$kubernetes['host'].$kubernetes['namespace_name']
            log_stream_template $kubernetes['pod_name'].$kubernetes['container_name']
            extra_user_agent    container-insights

      parsers.conf: |
        [PARSER]
            Name                docker
            Format              json
            Time_Key            time
            Time_Format         %b %d %H:%M:%S

        [PARSER]
            Name                container_firstline
            Format              regex
            Regex               (?<log>(?<="log":")\S(?!\.).*?)(?<!\\)".*(?<stream>(?<="stream":").*?)".*(?<time>\d{4}-\d{1,2}-\d{1,2}T\d{2}:\d{2}:\d{2}\.\w*).*(?=})
            Time_Key            time
            Time_Format         %Y-%m-%dT%H:%M:%S.%LZ

        [PARSER]
            Name                dataplane_firstline
            Format              regex
            Regex               (?<log>(?<="log":")\S(?!\.).*?)(?<!\\)".*(?<stream>(?<="stream":").*?)".*(?<time>\d{4}-\d{1,2}-\d{1,2}T\d{2}:\d{2}:\d{2}\.\w*).*(?=})
            Time_Key            time
            Time_Format         %Y-%m-%dT%H:%M:%S.%LZ
    ---

    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRole
    metadata:
      name: amazon-cloudwatch-observability-manager-role
    rules:
    - apiGroups: [ "" ]
      resources: [ "configmaps" ]
      verbs: [ "create", "delete", "get", "list", "patch", "update", "watch" ]
    - apiGroups: [ "" ]
      resources: [ "events" ]
      verbs: [ "create", "patch" ]
    - apiGroups: [ "" ]
      resources: [ "namespaces", "pods" ]
      verbs: [ "get","list","patch","update","watch" ]
    - apiGroups: [ "" ]
      resources: [ "serviceaccounts" ]
      verbs: [ "create","delete","get","list","patch","update","watch" ]
    - apiGroups: [ "" ]
      resources: [ "services" ]
      verbs: [ "create","delete","get","list","patch","update","watch" ]
    - apiGroups: [ "apps" ]
      resources: [ "daemonsets" ]
      verbs: [ "create","delete","get","list","patch","update","watch" ]
    - apiGroups: [ "apps" ]
      resources: [ "deployments" ]
      verbs: [ "create","delete","get","list","patch","update","watch" ]
    - apiGroups: [ "apps" ]
      resources: [ "statefulsets" ]
      verbs: [ "create","delete","get","list","patch","update","watch" ]
    - apiGroups: [ "apps" ]
      resources: [ "replicasets" ]
      verbs: [ "get","list","watch" ]
    - apiGroups: [ "cloudwatch.aws.amazon.com" ]
      resources: [ "amazoncloudwatchagents", "dcgmexporters", "neuronmonitors" ]
      verbs: [ "get","list","patch","update","watch" ]
    - apiGroups: [ "cloudwatch.aws.amazon.com" ]
      resources: [ "amazoncloudwatchagents/finalizers", "dcgmexporters/finalizers", "neuronmonitors/finalizers" ]
      verbs: [ "get","patch","update" ]
    - apiGroups: [ "cloudwatch.aws.amazon.com" ]
      resources: [ "amazoncloudwatchagents/status", "dcgmexporters/status", "neuronmonitors/status" ]
      verbs: [ "get","patch","update" ]
    - apiGroups: [ "cloudwatch.aws.amazon.com" ]
      resources: [ "instrumentations" ]
      verbs: [ "get","list","patch","update","watch" ]
    - apiGroups: [ "coordination.k8s.io" ]
      resources: [ "leases" ]
      verbs: [ "create","get","list","update" ]
    - apiGroups: [ "networking.k8s.io" ]
      resources: [ "ingresses" ]
      verbs: [ "create","delete","get","list","patch","update","watch" ]
    - apiGroups: [ "route.openshift.io" ]
      resources: [ "routes", "routes/custom-host" ]
      verbs: [ "create","delete","get","list","patch","update","watch" ]
    ---

    kind: ClusterRoleBinding
    apiVersion: rbac.authorization.k8s.io/v1
    metadata:
      name: cloudwatch-agent-role-binding
    roleRef:
      kind: ClusterRole
      name: cloudwatch-agent-role
      apiGroup: rbac.authorization.k8s.io
    subjects:
    - kind: ServiceAccount
      name: cloudwatch-agent
      namespace: amazon-cloudwatch
    ---

    apiVersion: rbac.authorization.k8s.io/v1
    kind: ClusterRoleBinding
    metadata:
      labels:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        app.kubernetes.io/instance: amazon-cloudwatch-observability
        app.kubernetes.io/version: "1.0.0"
        app.kubernetes.io/managed-by: "amazon-cloudwatch-agent-operator"
      name: amazon-cloudwatch-observability-manager-rolebinding
    roleRef:
      apiGroup: rbac.authorization.k8s.io
      kind: ClusterRole
      name: amazon-cloudwatch-observability-manager-role
    subjects:
    - kind: ServiceAccount
      name: amazon-cloudwatch-observability-controller-manager
      namespace: amazon-cloudwatch
    ---

    apiVersion: rbac.authorization.k8s.io/v1
    kind: Role
    metadata:
      name: "dcgm-exporter-role"
      namespace: amazon-cloudwatch
      labels:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        app.kubernetes.io/instance: amazon-cloudwatch-observability
        app.kubernetes.io/version: "1.0.0"
        app.kubernetes.io/managed-by: "amazon-cloudwatch-agent-operator"
    rules:
    - apiGroups: [""]
      resources: ["configmaps"]
      resourceNames: ["dcgm-exporter-config-map"]
      verbs: ["get"]
    ---

    apiVersion: rbac.authorization.k8s.io/v1
    kind: Role
    metadata:
      name: "neuron-monitor-role"
      namespace: amazon-cloudwatch
      labels:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        app.kubernetes.io/instance: amazon-cloudwatch-observability
        app.kubernetes.io/version: "1.0.0"
        app.kubernetes.io/managed-by: "amazon-cloudwatch-agent-operator"
    rules:
    - apiGroups: [""]
      resources: ["configmaps"]
      resourceNames: ["neuron-monitor-config-map"]
      verbs: ["get"]
    ---

    apiVersion: rbac.authorization.k8s.io/v1
    kind: RoleBinding
    metadata:
      namespace: amazon-cloudwatch
      name: dcgm-exporter-role-binding
      labels:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        app.kubernetes.io/instance: amazon-cloudwatch-observability
        app.kubernetes.io/version: "1.0.0"
        app.kubernetes.io/managed-by: "amazon-cloudwatch-agent-operator"
    roleRef:
      kind: Role
      name: "dcgm-exporter-role"
      apiGroup: rbac.authorization.k8s.io
    subjects:
    - kind: ServiceAccount
      name: dcgm-exporter-service-acct
      namespace: amazon-cloudwatch
    ---

    apiVersion: rbac.authorization.k8s.io/v1
    kind: RoleBinding
    metadata:
      namespace: amazon-cloudwatch
      name: neuron-monitor-role-binding
      labels:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        app.kubernetes.io/instance: amazon-cloudwatch-observability
        app.kubernetes.io/version: "1.0.0"
        app.kubernetes.io/managed-by: "amazon-cloudwatch-agent-operator"
    roleRef:
      kind: Role
      name: "neuron-monitor-role"
      apiGroup: rbac.authorization.k8s.io
    subjects:
    - kind: ServiceAccount
      name: neuron-monitor-service-acct
      namespace: amazon-cloudwatch
    ---

    apiVersion: v1
    kind: Service
    metadata:
      labels:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        app.kubernetes.io/instance: amazon-cloudwatch-observability
        app.kubernetes.io/version: "1.0.0"
        app.kubernetes.io/managed-by: "amazon-cloudwatch-agent-operator"
      name: amazon-cloudwatch-observability-webhook-service
      namespace: amazon-cloudwatch
    spec:
      ports:
      - port: 443
        protocol: TCP
        targetPort: 9443
      selector:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        control-plane: controller-manager
    ---

    apiVersion: apps/v1
    kind: DaemonSet
    metadata:
      name: fluent-bit
      namespace: amazon-cloudwatch
      labels:
        k8s-app: fluent-bit
        version: v1
        kubernetes.io/cluster-service: "true"
    spec:
      selector:
        matchLabels:
          k8s-app: fluent-bit
      template:
        metadata:
          annotations:
            checksum/config: 1356b1d704d353a90c127f6dad453991f51d88ae994a7583c1064e0c883d898e
          labels:
            k8s-app: fluent-bit
            version: v1
            kubernetes.io/cluster-service: "true"
        spec:
          containers:
          - name: fluent-bit
            image: public.ecr.aws/aws-observability/aws-for-fluent-bit:2.32.0.20240304
            imagePullPolicy: Always
            env:
            - name: AWS_REGION
              value: {{region_name}}
            - name: CLUSTER_NAME
              value: "{{cluster_name}}"
            - name: READ_FROM_HEAD
              value: "Off"
            - name: READ_FROM_TAIL
              value: "On"
            - name: HOST_NAME
              valueFrom:
                fieldRef:
                  fieldPath: spec.nodeName
            - name: HOSTNAME
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.name
            - name: CI_VERSION
              value: "k8s/1.3.24"
            resources:
              limits:
                cpu: 500m
                memory: 250Mi

              requests:
                cpu: 50m
                memory: 25Mi
            volumeMounts:
            # Please don't change below read-only permissions
            - name: fluentbitstate
              mountPath: /var/fluent-bit/state
            - name: varlog
              mountPath: /var/log
              readOnly: true
            - name: varlibdockercontainers
              mountPath: /var/lib/docker/containers
              readOnly: true
            - name: fluent-bit-config
              mountPath: /fluent-bit/etc/
            - name: runlogjournal
              mountPath: /run/log/journal
              readOnly: true
            - name: dmesg
              mountPath: /var/log/dmesg
              readOnly: true
          terminationGracePeriodSeconds: 10
          hostNetwork: true
          dnsPolicy: ClusterFirstWithHostNet
          volumes:
          - name: fluentbitstate
            hostPath:
              path: /var/fluent-bit/state
          - name: varlog
            hostPath:
              path: /var/log
          - name: varlibdockercontainers
            hostPath:
              path: /var/lib/docker/containers
          - name: fluent-bit-config
            configMap:
              name: fluent-bit-config
          - name: runlogjournal
            hostPath:
              path: /run/log/journal
          - name: dmesg
            hostPath:
              path: /var/log/dmesg
          serviceAccountName: cloudwatch-agent
          nodeSelector:
            kubernetes.io/os: linux
    ---

    apiVersion: apps/v1
    kind: DaemonSet
    metadata:
      name: fluent-bit-windows
      namespace: amazon-cloudwatch
      labels:
        k8s-app: fluent-bit
        version: v1
        kubernetes.io/cluster-service: "true"
    spec:
      selector:
        matchLabels:
          k8s-app: fluent-bit
      template:
        metadata:
          annotations:
            checksum/config: a54dc0c777b3caf8ea8c5e895f9e6054af9b06c72bed9d012c4414165bc85a41
          labels:
            k8s-app: fluent-bit
            version: v1
            kubernetes.io/cluster-service: "true"
        spec:
          securityContext:
            windowsOptions:
              hostProcess: true
              runAsUserName: "NT AUTHORITY\\System"
          hostNetwork: true
          nodeSelector:
            kubernetes.io/os: windows
          containers:
          - name: fluent-bit
            image: public.ecr.aws/aws-observability/aws-for-fluent-bit:2.31.12-windowsservercore
            imagePullPolicy: Always
            command: ["powershell.exe", "-Command", "New-Item -ItemType Directory -Path C:\\var\\fluent-bit\\state -Force;", "%CONTAINER_SANDBOX_MOUNT_POINT%/fluent-bit/bin/fluent-bit.exe", "-e", "%CONTAINER_SANDBOX_MOUNT_POINT%/fluent-bit/kinesis.dll", "-e", "%CONTAINER_SANDBOX_MOUNT_POINT%/fluent-bit/firehose.dll", "-e", "%CONTAINER_SANDBOX_MOUNT_POINT%/fluent-bit/cloudwatch.dll", "-c", "%CONTAINER_SANDBOX_MOUNT_POINT%/fluent-bit/configuration/fluent-bit.conf"]
            env:
            - name: AWS_REGION
              value: {{region_name}}
            - name: CLUSTER_NAME
              value: "{{cluster_name}}"
            - name: READ_FROM_HEAD
              value: "Off"
            - name: HOST_NAME
              valueFrom:
                fieldRef:
                  fieldPath: spec.nodeName
            - name: HOSTNAME
              valueFrom:
                fieldRef:
                  apiVersion: v1
                  fieldPath: metadata.name
            - name: CI_VERSION
              value: "k8s/1.3.24"
            resources:
              limits:
                cpu: 500m
                memory: 600Mi

              requests:
                cpu: 300m
                memory: 300Mi
            volumeMounts:
              - name: fluent-bit-config
                mountPath: fluent-bit\configuration\
          volumes:
            - name: fluent-bit-config
              configMap:
                name: fluent-bit-windows-config
          terminationGracePeriodSeconds: 10
          dnsPolicy: ClusterFirstWithHostNet
          serviceAccountName: cloudwatch-agent
    ---

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      labels:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        app.kubernetes.io/instance: amazon-cloudwatch-observability
        app.kubernetes.io/version: "1.0.0"
        app.kubernetes.io/managed-by: "amazon-cloudwatch-agent-operator"
        control-plane: controller-manager
      name: amazon-cloudwatch-observability-controller-manager
      namespace: amazon-cloudwatch
    spec:
      replicas: 1
      selector:
        matchLabels:
          app.kubernetes.io/name: amazon-cloudwatch-observability
          control-plane: controller-manager
      template:
        metadata:
          annotations:
          labels:
            app.kubernetes.io/name: amazon-cloudwatch-observability
            control-plane: controller-manager

        spec:
          containers:
          - image: public.ecr.aws/cloudwatch-agent/cloudwatch-agent-operator:1.3.0
            args:
            - "--auto-annotation-config={\"java\":{\"daemonsets\":[],\"deployments\":[],\"namespaces\":[],\"statefulsets\":[]},\"python\":{\"daemonsets\":[],\"deployments\":[],\"namespaces\":[],\"statefulsets\":[]}}"
            - "--auto-instrumentation-java-image=public.ecr.aws/aws-observability/adot-autoinstrumentation-java:v1.32.1"
            - "--auto-instrumentation-python-image=public.ecr.aws/aws-observability/adot-autoinstrumentation-python:v0.1.0"
            - "--feature-gates=operator.autoinstrumentation.multi-instrumentation,operator.autoinstrumentation.multi-instrumentation.skip-container-validation"
            command:
            - /manager
            name: manager
            ports:
            - containerPort: 9443
              name: webhook-server
              protocol: TCP
            resources:
                requests:
                  cpu: 100m
                  memory: 64Mi
            volumeMounts:
            - mountPath: /tmp/k8s-webhook-server/serving-certs
              name: cert
              readOnly: true
          serviceAccountName: amazon-cloudwatch-observability-controller-manager
          terminationGracePeriodSeconds: 10
          volumes:
          - name: cert
            secret:
              defaultMode: 420
              secretName: amazon-cloudwatch-observability-controller-manager-service-cert
          nodeSelector:
            kubernetes.io/os: linux
    ---

    apiVersion: cert-manager.io/v1
    kind: Certificate
    metadata:
      labels:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        app.kubernetes.io/instance: amazon-cloudwatch-observability
        app.kubernetes.io/version: "1.0.0"
        app.kubernetes.io/managed-by: "amazon-cloudwatch-agent-operator"
      name: amazon-cloudwatch-observability-serving-cert
      namespace: amazon-cloudwatch
    spec:
      dnsNames:
        - amazon-cloudwatch-observability-webhook-service.amazon-cloudwatch
        - amazon-cloudwatch-observability-webhook-service.amazon-cloudwatch.svc
        - amazon-cloudwatch-observability-webhook-service.amazon-cloudwatch.svc.cluster.local
      issuerRef:
        kind: Issuer
        name: amazon-cloudwatch-observability-selfsigned-issuer
      secretName: amazon-cloudwatch-observability-controller-manager-service-cert
      subject:
        organizationalUnits:
          - amazon-cloudwatch-observability
    ---

    apiVersion: cert-manager.io/v1
    kind: Certificate
    metadata:
      labels:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        app.kubernetes.io/instance: amazon-cloudwatch-observability
        app.kubernetes.io/version: "1.0.0"
        app.kubernetes.io/managed-by: "amazon-cloudwatch-agent-operator"
      name: "amazon-cloudwatch-observability-agent-cert"
      namespace: amazon-cloudwatch
    spec:
      dnsNames:
        - "dcgm-exporter-service"
        - "dcgm-exporter-service.amazon-cloudwatch.svc"
        - "neuron-monitor-service"
        - "neuron-monitor-service.amazon-cloudwatch.svc"
      issuerRef:
        kind: Issuer
        name: "agent-ca"
      secretName: "amazon-cloudwatch-observability-agent-cert"
    ---

    apiVersion: cert-manager.io/v1
    kind: Issuer
    metadata:
      labels:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        app.kubernetes.io/instance: amazon-cloudwatch-observability
        app.kubernetes.io/version: "1.0.0"
        app.kubernetes.io/managed-by: "amazon-cloudwatch-agent-operator"
      name: amazon-cloudwatch-observability-selfsigned-issuer
      namespace: amazon-cloudwatch
    spec:
      selfSigned: { }
    ---

    apiVersion: cert-manager.io/v1
    kind: Issuer
    metadata:
      labels:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        app.kubernetes.io/instance: amazon-cloudwatch-observability
        app.kubernetes.io/version: "1.0.0"
        app.kubernetes.io/managed-by: "amazon-cloudwatch-agent-operator"
      name: "agent-ca"
      namespace: amazon-cloudwatch
    spec:
      selfSigned: { }
    ---

    apiVersion: admissionregistration.k8s.io/v1
    kind: MutatingWebhookConfiguration
    metadata:
      annotations:
        cert-manager.io/inject-ca-from: amazon-cloudwatch/amazon-cloudwatch-observability-serving-cert
      labels:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        app.kubernetes.io/instance: amazon-cloudwatch-observability
        app.kubernetes.io/version: "1.0.0"
        app.kubernetes.io/managed-by: "amazon-cloudwatch-agent-operator"
      name: amazon-cloudwatch-observability-mutating-webhook-configuration
    webhooks:
    - admissionReviewVersions:
      - v1
      clientConfig:
        service:
          name: amazon-cloudwatch-observability-webhook-service
          namespace: amazon-cloudwatch
          path: /mutate-cloudwatch-aws-amazon-com-v1alpha1-instrumentation
      failurePolicy: Ignore
      name: minstrumentation.kb.io
      rules:
      - apiGroups:
        - cloudwatch.aws.amazon.com
        apiVersions:
        - v1alpha1
        operations:
        - CREATE
        - UPDATE
        resources:
        - instrumentations
      sideEffects: None
      timeoutSeconds: 10
    - admissionReviewVersions:
      - v1
      clientConfig:
        service:
          name: amazon-cloudwatch-observability-webhook-service
          namespace: amazon-cloudwatch
          path: /mutate-cloudwatch-aws-amazon-com-v1alpha1-amazoncloudwatchagent
      failurePolicy: Ignore
      name: mamazoncloudwatchagent.kb.io
      rules:
      - apiGroups:
        - cloudwatch.aws.amazon.com
        apiVersions:
        - v1alpha1
        operations:
        - CREATE
        - UPDATE
        resources:
        - amazoncloudwatchagents
      sideEffects: None
      timeoutSeconds: 10
    - admissionReviewVersions:
      - v1
      clientConfig:
        service:
          name: amazon-cloudwatch-observability-webhook-service
          namespace: amazon-cloudwatch
          path: /mutate-v1-pod
      failurePolicy: Ignore
      name: mpod.kb.io
      rules:
      - apiGroups:
        - ""
        apiVersions:
        - v1
        operations:
        - CREATE
        - UPDATE
        resources:
        - pods
      sideEffects: None
      timeoutSeconds: 10
    - admissionReviewVersions:
      - v1
      clientConfig:
        service:
          name: amazon-cloudwatch-observability-webhook-service
          namespace: amazon-cloudwatch
          path: /mutate-v1-namespace
      failurePolicy: Ignore
      name: mnamespace.kb.io
      rules:
      - apiGroups:
        - ""
        apiVersions:
        - v1
        operations:
        - CREATE
        - UPDATE
        resources:
        - namespaces
      sideEffects: None
      timeoutSeconds: 10
    - admissionReviewVersions:
      - v1
      clientConfig:
        service:
          name: amazon-cloudwatch-observability-webhook-service
          namespace: amazon-cloudwatch
          path: /mutate-v1-workload
      failurePolicy: Ignore
      name: mworkload.kb.io
      rules:
      - apiGroups:
        - apps
        apiVersions:
        - v1
        operations:
        - CREATE
        - UPDATE
        resources:
        - daemonsets
        - deployments
        - statefulsets
      sideEffects: None
      timeoutSeconds: 10
    ---

    apiVersion: admissionregistration.k8s.io/v1
    kind: ValidatingWebhookConfiguration
    metadata:
      annotations:
        cert-manager.io/inject-ca-from: amazon-cloudwatch/amazon-cloudwatch-observability-serving-cert
      labels:
        app.kubernetes.io/name: amazon-cloudwatch-observability
        app.kubernetes.io/instance: amazon-cloudwatch-observability
        app.kubernetes.io/version: "1.0.0"
        app.kubernetes.io/managed-by: "amazon-cloudwatch-agent-operator"
      name: amazon-cloudwatch-observability-validating-webhook-configuration
    webhooks:
    - admissionReviewVersions:
      - v1
      clientConfig:
        service:
          name: amazon-cloudwatch-observability-webhook-service
          namespace: amazon-cloudwatch
          path: /validate-cloudwatch-aws-amazon-com-v1alpha1-instrumentation
      failurePolicy: Ignore
      name: vinstrumentationcreateupdate.kb.io
      rules:
      - apiGroups:
        - cloudwatch.aws.amazon.com
        apiVersions:
        - v1alpha1
        operations:
        - CREATE
        - UPDATE
        resources:
        - instrumentations
      sideEffects: None
      timeoutSeconds: 10
    - admissionReviewVersions:
      - v1
      clientConfig:
        service:
          name: amazon-cloudwatch-observability-webhook-service
          namespace: amazon-cloudwatch
          path: /validate-cloudwatch-aws-amazon-com-v1alpha1-instrumentation
      failurePolicy: Ignore
      name: vinstrumentationdelete.kb.io
      rules:
      - apiGroups:
        - cloudwatch.aws.amazon.com
        apiVersions:
        - v1alpha1
        operations:
        - DELETE
        resources:
        - instrumentations
      sideEffects: None
      timeoutSeconds: 10
    - admissionReviewVersions:
      - v1
      clientConfig:
        service:
          name: amazon-cloudwatch-observability-webhook-service
          namespace: amazon-cloudwatch
          path: /validate-cloudwatch-aws-amazon-com-v1alpha1-amazoncloudwatchagent
      failurePolicy: Ignore
      name: vamazoncloudwatchagentcreateupdate.kb.io
      rules:
      - apiGroups:
        - cloudwatch.aws.amazon.com
        apiVersions:
        - v1alpha1
        operations:
        - CREATE
        - UPDATE
        resources:
        - amazoncloudwatchagents
      sideEffects: None
      timeoutSeconds: 10
    - admissionReviewVersions:
      - v1
      clientConfig:
        service:
          name: amazon-cloudwatch-observability-webhook-service
          namespace: amazon-cloudwatch
          path: /validate-cloudwatch-aws-amazon-com-v1alpha1-amazoncloudwatchagent
      failurePolicy: Ignore
      name: vamazoncloudwatchagentdelete.kb.io
      rules:
      - apiGroups:
        - cloudwatch.aws.amazon.com
        apiVersions:
        - v1alpha1
        operations:
        - DELETE
        resources:
        - amazoncloudwatchagents
      sideEffects: None
      timeoutSeconds: 10

  • Create configMap by

    ClusterName='kub-dep-demo'
    RegionName='ap-northeast-2'

    cat create-cloudwatch.yml | sed 's/{{cluster_name}}/'${ClusterName}'/g;s/{{region_name}}/'${RegionName}'/g' | kubectl apply -f -
  • Delete configMap by:

    ClusterName='kub-dep-demo'
    RegionName='ap-northeast-2'

    cat create-cloudwatch.yml | sed 's/{{cluster_name}}/'${ClusterName}'/g;s/{{region_name}}/'${RegionName}'/g' | kubectl delete -f -
    # curl https://raw.githubusercontent.com/aws-samples/amazon-cloudwatch-container-insights/main/k8s-quickstart/cwagent-custom-resource-definitions.yaml | kubectl delete -f -
  • Now go to cloudwatch, the logging will be exactly the same as usual ECS or Lambda:
