September 16, 2023

Setup of Express with Socket.io with JWT Authentication Using Cookie

express

jwt

nodejs

web-socket

Contents

Client Side

List of Listeners
export default function WebSocket() {
    const socket = useRef<ReturnType<typeof io> | null>(null);
    const addMessage = (msg: Message) => {
        setMessagesFromServer(msgs => {
            const msgs_ = lodash.cloneDeep(msgs);
            msgs_.push(msg);
            return msgs_;
        })
    }

    const getSocketConnection = () => {
        if (socket.current) {
            return;
        }

        socket.current = io(SOCKET_SERVER, { withCredentials: true });

        socket.current.on("connect", () => {
            addMessage({ sender: "System", msg: "Connected" });
        })

        socket.current.on(MSG_TO_CLIENTS, (data: Message) => {
            addMessage(data);
        })
        socket.current.on("disconnect", (reason) => {
            // note that if a user is disconnected actively by server (like no token is found)
            // the reason will be "io server disconnect"
            addMessage({ sender: "disconnect", msg: JSON.stringify(reason) });
        })
        socket.current.on("connect_error", (err) => {
            addMessage({ sender: "connect_error", msg: JSON.stringify(err) });
            // addMessage({ sender: "connect_error", msg: "Closing connection ..." });
            // socket.current?.disconnect();
            // socket.current = null;
        });
        socket.current.io.on("reconnect_attempt", (data) => {
            addMessage({ sender: "reconnect_attempt", msg: String(JSON.stringify(data)) });
        });
        socket.current.io.on("reconnect_error", (error) => {
            addMessage({ sender: "reconnect_error", msg: String(JSON.stringify(error)) });
        });
        socket.current.io.on("reconnect_failed", () => {
            addMessage({ sender: "reconnect_failed", msg: "" });
        });
    }
}

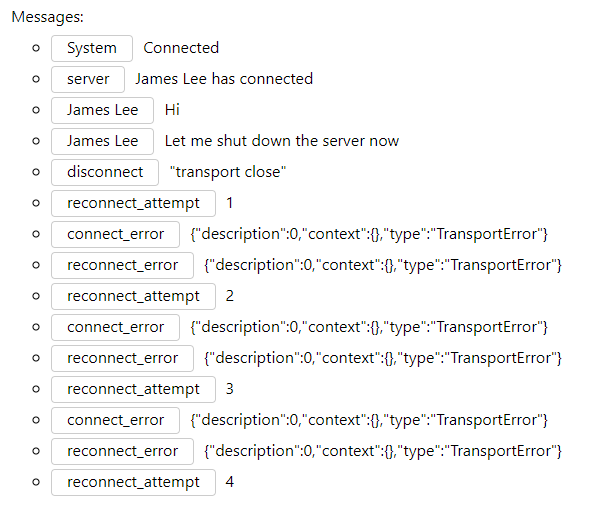

Error Observation by Adruptly Closing the Server

We can make use of the observations below to determine:

  • When should we close the socket connection and

  • What error message to display to the client.

Server Side

Entrypoint: app.ts
import getMongoConnection from "./db/getMongoConnection";
import expressService from "./service/expressService";

expressService.initExpressApp([
  async () => {
    await getMongoConnection();
  },
]);
Servics
expressService.ts

Here we try to split configuration into separate files, with configSocketio the only exception since it does not have api like app.ws for us the configure to Express object directly.

import express from "express";
import "express-async-errors";
import http from "http";
import configCors from "../config/configCors";
import configParsers from "../config/configParsers";
import configRouting from "../config/configRouting";
import { IORef } from "../dto/types";
import configSocketio from "../config/configSocketio";
import configErrorHandler from "../config/configErrorHandler";
const { PORT } = process.env;

const app = express();
const ioRef: IORef = { current: undefined };

app.set("trust proxy", 1);
configCors(app);
configParsers(app);
configRouting(app);
configErrorHandler(app);

const initExpressApp = (callbacks: (() => Promise<void> | void)[]) => {
  const httpServer = http.createServer(app);
  configSocketio(httpServer, ioRef);
  const port = PORT || "8080";
  httpServer.listen(parseInt(port), async () => {
    for (const cb of callbacks) {
      await cb();
    }
    console.log(`App running on port ${port}`);
  });
  return app;
};

const getSocketIo = () => {
  return ioRef;
};

export default {
  initExpressApp,
  getSocketIo,
};
socketService.ts

  • Since each user should have at most one socket connecting to the server, we use a Map object socketStore to store the correspondence between userOid and socket.

  • We will plug the socket object into req: Express.Request in the middleware socketioMiddleware below.

  • Then the controllers in chatRouter can get access to user's socket (as well as the server side io object).

import { Socket } from "socket.io";
import expressService from "./expressService"
import { DefaultEventsMap } from "socket.io/dist/typed-events";


const socketStore = new Map<string, Socket<DefaultEventsMap, DefaultEventsMap, DefaultEventsMap, any>>();

const saveSocket = (uuid: string, socket: Socket<DefaultEventsMap, DefaultEventsMap, DefaultEventsMap, any>) => {
    socketStore.set(uuid, socket);
};

const getSocket = (userOid: string) => {
    console.log("token", userOid);
    return socketStore.get(userOid) || undefined;
}

const deleteSocket = (uuid: string) => {
    socketStore.delete(uuid);
}


const getIo = () => {
    const ioRef = expressService.getSocketIo();
    return ioRef.current;
}

export default {
    getIo,
    saveSocket,
    getSocket,
    deleteSocket
}
Mongo Connection
getMongoConnection.ts
import mongoose from "mongoose";

let connCache: typeof mongoose;

const { DB_URL } = process.env;

const getMongoConnection = async () => {
  console.log("Connecting to mongo ...");
  if (!DB_URL) {
    throw new Error("DB_URL cannot be found.");
  }
  if (!connCache) {
    console.log("Mongo connected.");
    connCache = await mongoose.connect(DB_URL);
  }
  return connCache;
};

export default getMongoConnection;
Models (aka Collections)

  • Users.

    import mongoose, { InferSchemaType, Schema } from "mongoose";

export const userSchema = new Schema(
  {
    name: { type: String, required: true, index: true },
    email: { type: String, required: true },
    passwordHash: { type: String, required: true },
  },
  {
    timestamps: { createdAt: "created_at", updatedAt: "updated_at" },
  }
);

export type User = InferSchemaType<typeof userSchema>;
export const UserModel = mongoose.model("User", userSchema);

  • ChatRoom.

    import mongoose, { InferSchemaType, Schema } from "mongoose";

const chatSessionSchema = new Schema(
  {
    code: { type: String, required: true, index: true },
    hostUserOid: { type: String, required: true },
    active: { type: Boolean, require: true },
    members: {
      type: [{ userOid: { type: String, required: true } }],
      default: [],
    },
  },
  {
    timestamps: { createdAt: "createdAt", updatedAt: "updatedAt" },
  }
);

export type ChatSession = InferSchemaType<typeof chatSessionSchema>;
export const ChatSessionModel = mongoose.model(
  "ChatSession",
  chatSessionSchema
);
Utils for JWT Authentication
tokenUtils.ts
import jwt from "jsonwebtoken";
import { User, UserModel } from "../db/models/User";
import { TokenInfo } from "../dto/types";
import { Types } from "mongoose";
const { JWT_SECRET = "", JWS_SALT_ROUNDS = "", JWT_EXPIRE_IN = "" } = process.env;

const getTokenFromUser = (user: User & { _id: Types.ObjectId }): Promise<string> => {
    return new Promise((resolve, reject) => {
        try {
            if (!JWT_SECRET) {
                reject(new Error("jwt secret not found"));
            }
            const data: TokenInfo = {
                userOid: user._id.toString(),
                email: user.email,
                name: user.name
            };

            const token = jwt.sign(
                data,
                JWT_SECRET || "",
                { expiresIn: JWT_EXPIRE_IN }
            );
            resolve(token);
        } catch (err) {
            reject(err);
        }
    });
}

const getUserFromToken = async (token: string) => {
    const decoded = await verifyToken(token) as TokenInfo;
    const userInToken: TokenInfo = decoded;
    return userInToken
}

const verifyToken = (token: string) => {
    return new Promise((resolve, reject) => {
        try {
            const decoded = jwt.verify(token, JWT_SECRET);
            resolve(decoded);
        } catch (err) {
            reject(err);
        }
    })

}


export default {
    getTokenFromUser,
    verifyToken,
    getUserFromToken,
}
hashUtil.ts
import bcrypt from "bcrypt";
const { JWS_SALT_ROUNDS = "0" } = process.env;

const passwordIntoHash = (password: string) => {
  return new Promise((resolve, reject) => {
    bcrypt.hash(password, parseInt(JWS_SALT_ROUNDS), (err, hash) => {
      if (err) {
        return reject(err);
      }
      resolve(hash);
    });
  });
};

const comparePasswordWithHash = (password: string, hash: string) => {
  return new Promise((resolve, reject) => {
    bcrypt.compare(password, hash, (err, result) => {
      if (err) {
        return reject(err);
      }
      resolve(result);
    });
  });
};

export default {
  passwordIntoHash,
  comparePasswordWithHash,
};
Middlewares
errorMiddleware.ts
import { NextFunction, Request, Response } from "express";

export default (
  err: Error,
  req: Request,
  res: Response,
  next: NextFunction
) => {
  if (err) {
    res.json({ success: false, errorMessage: err?.message });
  }
};
socketioMiddleware.ts <----------- inject userSocket and io into req here!
import { NextFunction, Request, Response } from "express";
import socketService from "../service/socketService";

export default (req: Request, res: Response, next: NextFunction) => {
    try {
        const userOid = req.user?.userOid!;
        const socket = socketService.getSocket(userOid);
        req.userSocket = socket;
        const io = socketService.getIo();
        req.io = io;
        next();
    } catch (err) {
        next(err);
    }
}
jwtAuthMiddleware.ts <------------ We parse token into req.user here!
import { NextFunction, Request, Response } from "express";
import authUtil from "../util/tokenUtil";
import { User } from "../db/models/User";
import { Token } from "typescript";
import { TokenInfo } from "../dto/types";

export default async (req: Request, res: Response, next: NextFunction) => {
  try {
    const token = req.cookies?.["token"];
    const user = await authUtil.getUserFromToken(token);
    req.user = user;
    next();
  } catch (err) {
    next(err);
  }
};
Routers
authRouter.ts <--------------------- We set cookie here!
import express from "express";
import { UserModel } from "../db/models/User";
import authUtil from "../util/tokenUtil";
import hashUtil from "../util/hashUtil";
import tokenUtil from "../util/tokenUtil";

const authRouter = express.Router();

authRouter.post("/login", async (req, res, next) => {
    try {
        const { email, password } = req.body as { email: string, password: string };
        const user = await UserModel.findOne({ email }).exec();
        if (user) {
            const { passwordHash } = user;
            const valid = await hashUtil.comparePasswordWithHash(password, passwordHash);
            if (valid) {
                const token = await tokenUtil.getTokenFromUser(user);
                res.cookie("token", token, {
                    httpOnly: true,
                    sameSite: "none",
                    path: "/",
                    secure: true
                });
                res.json({ success: true });
            } else {
                throw new Error("Username or password is incorrect");
            }
        }
    } catch (err) {
        next(err);
    }
});

authRouter.get("/refresh", (req, res) => {
    res.json({ hello: "world" });
});


export default authRouter;
userRouter
import express, { NextFunction } from "express";
import { UserModel } from "../db/models/User";
import hashUtil from "../util/hashUtil";
import tokenUtil from "../util/tokenUtil";

const userRouter = express.Router();

userRouter.post("/create", async (req, res, next: NextFunction) => {
    try {
        const { email, name, password } = req.body as { email: string, name: string, password: string };
        if (!(email && name && password)) {
            next(new Error("Email, name or password is null"));
        }

        const dbUser = await UserModel.findOne({ email }).exec();
        if (dbUser) {
            next(new Error("User already exists"));
        } else {
            const passwordHash = await hashUtil.passwordIntoHash(password);
            const userDoc = await new UserModel({ email, name, passwordHash });
            const user = await userDoc.save();

            const token = await tokenUtil.getTokenFromUser(user);
            // expiration is controlled by jwtMiddleware.
            res.cookie("token", token);
            res.json({
                success: true,
                message: `User ${name} has been created successfully.`
            });
        }
    } catch (err) {
        next(err);
    }
});

export default userRouter;
chatRouter
import express from "express";
import chatController from "../controller/chatController";

const chatRouter = express.Router();

chatRouter.get("/rooms", chatController.getRooms);
chatRouter.get("/create-room", chatController.createRoom);
chatRouter.get("/join-room/:roomCode", chatController.joinRoom);
chatRouter.post("/message", chatController.sendMessageFromClient);

export default chatRouter;

with

import { NextFunction, Request, Response } from "express"
import { Room, RoomModel } from "../db/models/Room";
import codeUtil from "../util/codeUtil";
import chatService from "../service/chatService";


const getRooms = async (req: Request, res: Response) => {
    const results = await RoomModel.find({}).exec();
    const rooms = results.map(r => r.toObject());
    res.json({
        success: true,
        result: { rooms }
    })
};

const createRoom = async (req: Request, res: Response) => {
    const { roomName } = req.body as { roomName: string };
    const code = codeUtil.generateCode();
    const roomProps: Room = {
        active: true,
        code,
        hostUserOid: req.user?.userOid || "",
        members: [{ userOid: req.user?.userOid || "" }],
        name: roomName
    }

    const room = new RoomModel(roomProps).save();
    res.json({
        success: true,
        result: { newRoom: room }
    });
};

const sendMessageFromClient = async (req: Request, res: Response) => {
    const { roomCode, msg } = req.body as { roomCode: string, msg: string };
    const room = await chatService.findRoomDocByCode(roomCode);
    const roomName = room?.name || ""

    req.io?.to(roomCode).emit(...chatService.createMsgToClients({ sender: `${req.user?.name} (from ${roomName || "unknown"})` || "", msg: msg }));
}

const joinRoom = async (req: Request, res: Response) => {
    // disconnect all existing rooms
    const userConnectedRooms = req.userSocket?.rooms;
    if (userConnectedRooms) {
        userConnectedRooms.forEach(async (roomCode) => {
            try {
                const room = await chatService.getRoombyOid(roomCode);
                if (room) {
                    req.io?.to(roomCode).emit(...chatService.createMsgToClients({
                        sender: "server",
                        msg: `${req.user?.name || ""} leaved room: ${room.name}`
                    }));
                }
            }
            catch (err) {
            }
            req.userSocket?.leave(roomCode);
        })
    }

    // start to join new room
    const { roomCode } = req.params;
    const room = await chatService.findRoomDocByCode(roomCode);
    if (room) {
        req.userSocket?.join(roomCode!);
    } else {
        throw new Error(`No room of code ${roomCode} exists`);
    }

    // history purpose
    const existingUser = room?.members.find(m => m.userOid === req.user?.userOid);
    if (!existingUser) {
        room?.members.push({ userOid: req.user!.userOid });
        await room?.save();
    }

    req.io?.to(roomCode).emit(...chatService.createMsgToClients({
        sender: "server",
        msg: `${req.user?.name} just connected to room ${room.name}`
    }));
    res.json({ success: true });
}

export default {
    getRooms,
    joinRoom,
    sendMessageFromClient,
    createRoom
}
Configuration Files
configCors.ts
import { Express } from "express";
import cors, { CorsOptions } from "cors";
const { ALLOWED_ORIGINS } = process.env;

export default (app: Express) => {
  const allowlist = ALLOWED_ORIGINS?.split(",") || [];
  const corsOptionsDelegate = (req: any, callback: any) => {
    let corsOptions: CorsOptions;

    if (allowlist.indexOf(req.header("Origin")) > -1) {
      corsOptions = { origin: true, credentials: true };
    } else {
      corsOptions = { origin: false };
    }
    // callback expects two parameters: (error, options)
    callback(null, corsOptions);
  };

  app.use(cors(corsOptionsDelegate));
};
configErrorHandler.ts
import errorMiddleware from "../middleware/errorMiddleware";
import { Express } from "express";

export default (app: Express) => {
  app.use(errorMiddleware);
};
configParsers.ts
import bodyParser from "body-parser";
import cookieParser from "cookie-parser";
import { Express } from "express";

export default (app: Express) => {
  app.use(cookieParser());
  app.use(bodyParser.json());
};
configRouting.ts <----------- jwtAuthMiddleware and socketioMiddleware!
import jwtAuthMiddleware from "../middleware/jwtAuthMiddleware";
import socketioMiddleware from "../middleware/socketioMiddleware";
import authRouter from "../router/authRouter";
import chatRouter from "../router/chatRouter";
import userRouter from "../router/userRouter";
import { Express } from "express";

export default (app: Express) => {
  app.use("/chat", jwtAuthMiddleware, socketioMiddleware, chatRouter);
  app.use("/user", userRouter);
  app.use("/auth", authRouter);
};
configSocketio.ts: <---------------- We parse token here!
import { Server } from "socket.io";
import http from "http";
import { IORef } from "../dto/types";
const { ALLOWED_ORIGINS } = process.env;
const allowlist = ALLOWED_ORIGINS?.split(",") || [];
import cookie from "cookie";
import userSerevice from "../service/userSerevice";
import { serialize, parse } from "cookie";
import { v4 as uuidv4 } from "uuid";
import socketService from "../service/socketService";
import chatService from "../service/chatService";

export const MSG_TO_CLIENTS = "MSG_TO_CLIENTS";

export default (httpServer: http.Server, ioRef: IORef) => {
  ioRef.current = new Server(httpServer, {
    cookie: true,
    allowUpgrades: true,
    cors: {
      origin: allowlist,
      methods: ["GET", "POST"],
      credentials: true,
    },
  });
  const io = ioRef.current;

  io.on("connect", async (socket) => {
    try {
      const cookieString = cookie.parse(socket.request.headers.cookie || "");

      const token = cookieString?.["token"];
      if (!token) {
        console.log(`socket was dropped because no token is found.`);
        return socket.disconnect();
      }
      let usernameInDb = "";
      try {
        const user = await userSerevice.getUserFromToken(token);
        if (user) {
          usernameInDb = `${user.name}`;
          console.log(`${usernameInDb} has connected`);
          socketService.saveSocket(user.userOid, socket);
          socket.emit(
            ...chatService.createMsgToClients({
              sender: "server",
              msg: "Connected.",
            })
          );
        }
        socket.on("disconnect", (reason) => {
          socketService.deleteSocket(user.userOid);
          console.log(`socketService.deleteSocket(${user.userOid});`);
          console.log(`${usernameInDb} has disconnected because: ${reason}`);
        });
      } catch (err) {
        socket.disconnect();
      }
    } catch (error) {
      io.close();
    }
  });
};
The desc.d.ts for req.user

Since by default there is no req.user for Express.Request object, we need to declare it in desc.d.ts:

export type TokenInfo = {
    userOid: string,
    email: string,
    name: string
}

declare global {
    namespace Express {
        interface Request {
            user?: TokenInfo
        }
    }
}

And this special desc.d.ts needs to be included as files in tsconfig.json:

{
  "compilerOptions": {
    ...
  },
  ...
  "files": [
    "src/desc.d.ts"
  ]
}
