JPA Case Study: When repository.delete(someEntity) failed in a transaction silently

event-driven

jpa

springboot

Contents

Case Encountered

In my timetable system I need to add an "extended" class when a status is changed from STATUS_A to STATUS_B.

On the contrary, that "extended" class needs to be removed when we switch from STATUS_B back to STATUS_A

The forward path is smooth (adding an extended class), but removing an entity by

someRespositove.delete(someEntity)

can fail in some cases when JPA don't know the correct deletion order of entities in a set of relation tables (i.e., when there are many @OneToOne, @OneToMany, etc, involved).

The Problem

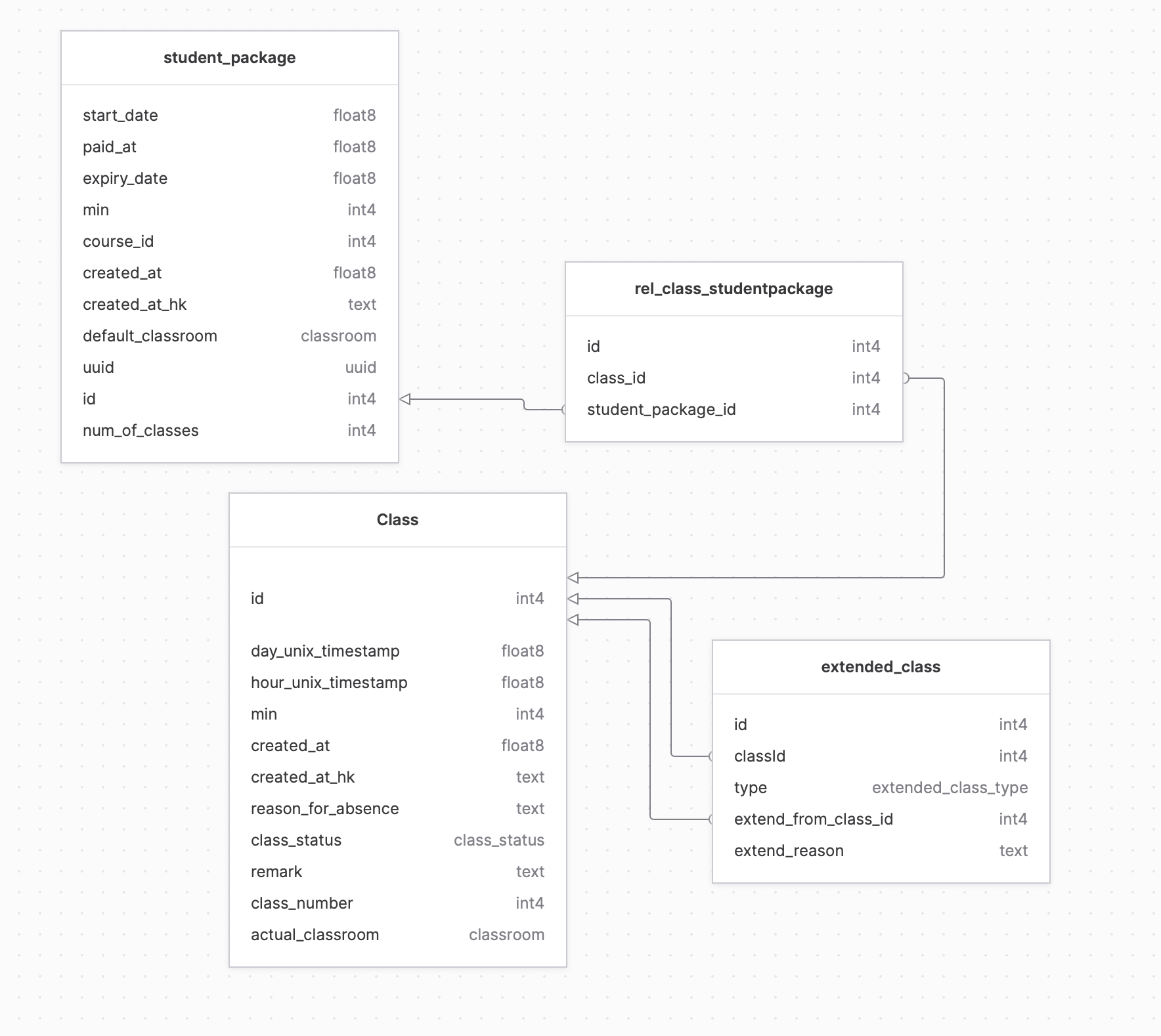

Tables Involved: The ordinary class and the extended class

  • A package has many classes, governed by rel_class_studentpackage

  • A special type of class is called Extended Class. Which is also treated as a class, with the additional attributes listed in extended_class table (and associated by extended_class."classId").

  • In the future if we have another special class, like "Trial Class", we will create another trial_class table and let it refers to class table. We achieve polymorphism by equipping class table with additional table.

What confuses JPA when deleting a class that is an extended class?

The problem arises when we try to execute the following code written in kotlin:

@TransactionalEventListener(phase = TransactionPhase.BEFORE_COMMIT)
fun manageMakeupClassesOn(event: TimetableEvents.ClassInfoUpdated) {
    val targetClassId = event.reqBody.classId
    val targetClass = classRepository.findByIdOrNull(targetClassId) ?: throw TimetableException("Class not found")
    val pkg = targetClass.studentPackage ?: throw TimetableException("Student package not found")

    if (/* when targetClass switch from STATUS_B to STATUS A */) {
        // this is also a `Class` entity:
        val extendedClass = targetClass.extensionToRecord?.toClass
        if (extendedClass != null) {
            classRepository.delete(extendedClass)
        }
        ...
    }

Problem. After the transaction is completed, our Class entity extendedClass entity has not been removed.

What is the blocker for the failed deletion of an entity?

Deletion of an "Extended Class" (namely, a class that has a reference from entended_class table) entity involves the following:

Let's use A B to mean A refers to B (i.e., A has a column referencing to the id column of B).

We have the following:

  • extended_class Class
  • rel_class_studentpackage Class

Upon deleting the Class object, JPA doesn't know which one of { extended_class, rel_class_studentpackage } should be deleted first, which ends up deleting nothing and completes the transaction silently.

A fix in JPA: First Delete rel_class_studentpackage → Class
@TransactionalEventListener(phase = TransactionPhase.BEFORE_COMMIT)
fun manageMakeupClassesOn(event: TimetableEvents.ClassInfoUpdated) {
    val targetClassId = event.reqBody.classId
    val targetClass = classRepository.findByIdOrNull(targetClassId) ?: throw TimetableException("Class not found")
    val pkg = targetClass.studentPackage ?: throw TimetableException("Student package not found")

    if (/* when targetClass switch from STATUS_B to STATUS A */) {
        // this is also a `Class` entity:
        val extendedClass = targetClass.extensionToRecord?.toClass
        if (extendedClass != null) {
            pkg.classes.remove(extendedClass)
            classRepository.delete(extendedClass)
        }
        ...
    }

Now we explicitly tell JPA:

Hey, let's delete the entity from rel_class_studentpackage first, then deleting the remaining

Can deleting extended_class → Class help?

Unfortunately NO, deleting all the relations between extended_class and Class does not solve the problem from experiement. In JPA a @OneToMany relation is usually the major blocker that makes the deletion failed.

General Solution to Delete an Entity Safely

  1. We break the @OneToMany relation by A.entities.remove(entity)

  2. Then we delete the entity by repository.delete(entity)
