Flask with Uwsgi and Docker Image Deployment

aws

react

Contents

Repository

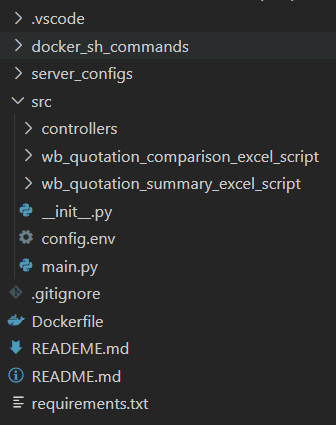

Project Structure

Controllers

# src/controllers/script_controller.py

import os
import io
from flask import Blueprint, render_template, abort, send_file, request, jsonify

from src.wb_quotation_summary_excel_script.quotation_summary_excel_script \
    import main as quotation_summary_excel_script

from src.wb_quotation_comparison_excel_script.quotation_comparison_excel_script \
    import main as quotation_comparison_excel_script

from typing import Callable

script_controller = Blueprint('script_controller',
                              __name__)

def process(data_source: dict, exec_script: Callable[[dict], str]) -> str:
    ...

@script_controller.route("/script/quotation_summary_excel", methods=['GET', 'POST'])
def quotation_summary_excel():
    ...

@script_controller.route("/script/quotation_comparison_excel_script", methods=['GET', 'POST'])
def quotation_comparison_excel():
    ...

How Controller Access src.wb_quotation_summary_excel_script?

  • Usually in python things become tricky if we want to access object defined in arbitrary diectory.
  • It is very often to get ModuleNotFoundError and requires tricky step to get around it like appending desired directory path to sys.path that includes src.
  • Alternatively we can simply define an environment variable PYTHONPATH to be the directory that is parent to our src/.
  • This makes the import statement from src.wb_quotation_comparison_excel_script becomes possible without inserting weired logic like sys.path.append.
  • In this way our debugger can work flawlessly:
    {
  "version": "0.2.0",
  "configurations": [
    {
      "name": "Python: Current File",
      "type": "python",
      "request": "launch",
      "program": "${file}",
      "console": "integratedTerminal",
      "env": {
        "PYTHONPATH": "${workspaceRoot}"
      }
    }
  ]
}

Borrow the same Idea to Deploy Docker Image

We define RUN export PYTHONPATH="/project" and therefore no ModuleNotFoundError can occur.

FROM python:3.8

RUN apt-get update
RUN apt-get install -y --no-install-recommends \
    libatlas-base-dev gfortran nginx supervisor

RUN pip3 install uwsgi

COPY ./requirements.txt /project/requirements.txt

RUN pip3 install -r /project/requirements.txt

RUN useradd --no-create-home nginx

RUN rm /etc/nginx/sites-enabled/default
RUN rm -r /root/.cache

COPY server_configs/nginx.conf /etc/nginx/
COPY server_configs/flask-site-nginx.conf /etc/nginx/conf.d/
COPY server_configs/uwsgi.ini /etc/uwsgi/
COPY server_configs/supervisord.conf /etc/

RUN mkdir -p /project/src
COPY /src /project/src

RUN mkdir -p /project/excel_files
RUN chmod 643 /project/excel_files
RUN export PYTHONPATH="/project"

WORKDIR /project

CMD ["/usr/bin/supervisord"]
