K8S Basics Part I: Deployment, Service, Volume and ConfigMap

k8s

Contents

Installation

  • We installl kubectrl from here.

  • Install minikube from here.

  • Note that kubectl will be configured by minikube to use minikube as to create cluster.

Basic minikube Commands

  • There no need to install virtual box as we can use

    minikube start --driver=docker

    to simulate our environment

  • We can spin up the dashboard for clusters by

    minikube dashboard

Kubectl: Imperative Approach

In the sequel we will set the alias alias k=kubectl.

Create a deployment object
k create deployment first-app --image=kub-first-app

At this point no pods is running because minikube cannot pull image from my local machine

Get all deployments
k get deployments
Check the status of all pods
k get pods
Delete a deployment object
k delete deployment first-app
Create a service by an existing deployment
k expose deployment first-app --type=LoadBalancer --port=8080

here type can be of:

  • ClusterIP Only reachable inside the cluster
  • NodePort Create an IP address for a specific worker node
  • LoadBalancer Create an IP address to a loadbalancer that route the traffics to the deployment evenly
List all services
k get services

example:

NAME         TYPE           CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
first-app    LoadBalancer   10.107.213.78   <pending>     8080:31967/TCP   8s
kubernetes   ClusterIP      10.96.0.1       <none>        443/TCP

  • If our cluster is provided by a cloud provider, then we will get an external-IP address.

  • In local environment, we can run minikube service first-app to let minikube map a local port to the service

Scale to multiple pods
k scale deployment/first-app --replicas=3
Update the deployment
Update to new image

we first build and pusb a new container to docker hub with new tag.

k set image deployment/first-app kub-first-app=machingclee/kub-first-app:2

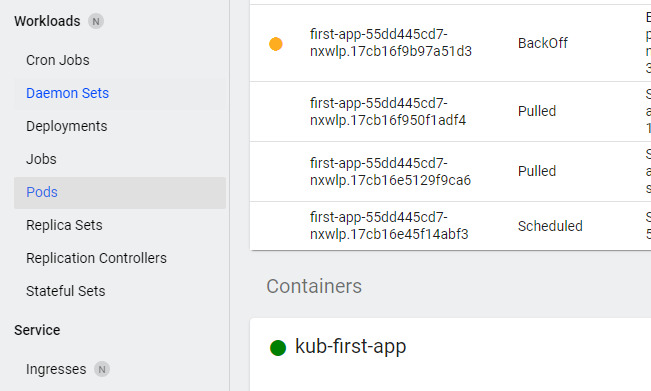

Here kub-first-app is a running container inside our pod, the name can be found in the dashboard (recall we can use minikube dashboard):

Check update status
k rollout status deployment/first-app
Undo the latest deployment
k rollout undo deployment/first-app
View all the rollout histories
k rollout history deployment/first-app

Which results in:

deployment.apps/first-app
REVISION  CHANGE-CAUSE
2         <none>
3         <none
Get the detail about the deployment
k rollout history deployment/first-app --revision=2

Which results in:

deployment.apps/first-app with revision #2
Pod Template:
  Labels:       app=first-app
        pod-template-hash=7cd7d85cf5
  Containers:
   kub-first-app:
    Image:      machingclee/kub-first-app:2
    Port:       <none>
    Host Port:  <none>
    Environment:        <none>
    Mounts:     <none>
  Volumes:      <none>
  Node-Selectors:       <none>
  Tolerations:  <none>
Reset to specific deployment history
k rollout undo deployment/first-app --to-revision=1
Delete a Service
k delete service first-app
Appendix: Make a new reference by a new tag to an existing image

This is to push to docker hub.

docker tag kub-first-app machingclee/kub-first-app

Kubectl: Declarative Approach

deployment.yml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: second-app-deployment
spec: # spec of deployment,
  replicas: 1
  selector:
    matchLabels:
      app: second-app
      tier: backend
  template: # in what follows k8s always expect a pod template spec
    # <--- no need to add "kind: Pod" here.
    metadata:
      labels: # deplyment.yml is more strict, all labels must match in order to deploy a pod
        app: second-app
        tier: backend
    spec: # sepc of pod
      containers:
        - name: second-nodejs-app
          image: machingclee/kub-first-app
service.yml
apiVersion: v1
kind: Service
metadata:
  name: backend
spec:
  selector:
    # service is less strict,
    # "app: second-app" will match all selectors that use this key-value
    app: second-app
  ports:
    - protocol: "TCP"
      port: 80
      targetPort: 8080
  type: LoadBalancer
Apply a service.yml and a deployment.yml
k apply -f service.yml
k apply -f deployment.yml
Connect to the Service just Created

We run (backend is the service name we just defined)

minikube service backend

because we don't have cloud provider for k8s for the moment.

Delete Resources
k delete -f deployment.yml -f service.yml
Delete Everything
k delete all --all
Merge service.yml and deployment.yml into one
apiVersion: v1
kind: Service
metadata:
  name: backend
spec:
  selector:
    # service is less strict,
    # "app: second-app" will match all selectors that use this key-value
    app: second-app
  ports:
    - protocol: "TCP"
      port: 80
      targetPort: 8080
  type: LoadBalancer
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: second-app-deployment
spec: # spec of deployment,
  replicas: 1
  selector:
    matchLabels:
      app: second-app
      tier: backend
  template: # in what follows k8s always expect a pod template spec
    # <--- no need to add "kind: Pod" here.
    metadata:
      labels: # deplyment.yml is more strict, all labels must match in order to deploy a pod
        app: second-app
        tier: backend
    spec: # sepc of pod
      containers:
        - name: second-nodejs-app
          image: machingclee/kub-first-app

The key difference is that we need to separate them by ---.

Note that the service object is a living organism in the cluster, it will monitor all the changes, therefore it is better to create a service object first, then apply deployment objects.

Now we can deploy by k apply -f merged-file.yml.

Volume

emptyDir

emptyDir is a pod specific volume.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: story-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: story
  template:
    metadata:
      labels:
        app: story
    spec:
      containers:
        - name: story
          image: machingclee/kub-data-demo:2
          imagePullPolicy: Always
          volumeMounts:
            - mountPath: /app/story
              name: story-volume
      volumes:
        - name: story-volume
          emptyDir: {} # <-- pod specific

  • When a container get restarted, the data in app/story inside container will be persisted as long as the pod is not removed.

  • This moethod fails when replicas: 2 because emptyDir is bound to a pod and cannot be shared among pods.

hostPath

Volume of type hostPath is bound to a node, with type DirectoryOrCreate the directly data will be created if there is no existing one.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: story-deployment
spec:
  replicas: 2
  selector:
    matchLabels:
      app: story
  template:
    metadata:
      labels:
        app: story
    spec:
      containers:
        - name: story
          image: machingclee/kub-data-demo:2
          imagePullPolicy: Always
          volumeMounts:
            - mountPath: /app/story
              name: story-volume
      volumes:
        - name: story-volume
          hostPath: # <-- solve the problems in one worker-node env
          path: /data
          type: DirectoryOrCreate
PersistentVolume
host-pv.yml

Let's define a persist-volume resource:

apiVersion: v1
kind: PersistentVolume
metadata:
  name: host-pv
spec:
  capacity:
    storage: 1Gi
  volumeMode: Filesystem # or Block
  storageClassName: standard
  accessModes:
    - ReadWriteOnce # all pods inside a worker node get access and create once
  hostPath:
    path: /data
    type: DirectoryOrCreate
host-pvc.yml

Next we need to define persistent-volume-claim resource:

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: host-pvc
spec:
  volumeName: host-pv
  accessModes:
    - ReadWriteOnce # this allow any one of the pods in a node to declare the volume once
  resources:
    requests:
      storage: 1Gi
Modify deployment.yml

Now we apply the persistent-volume-claim:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: story-deployment
spec:
  replicas: 2
  selector:
    matchLabels:
      app: story
  template:
    metadata:
      labels:
        app: story
    spec:
      containers:
        - name: story
          image: machingclee/kub-data-demo:2
          imagePullPolicy: Always
      volumes:
        - name: story-volume
          persistentVolumeClaim:
            claimName: host-pvc

Environment Variable

ConfigMap

Here to apply the environment variable from external file we need to create a config map resource:

# environment.yml

apiVersion: v1
kind: ConfigMap
metadata:
  name: data-store-env
data:
  STORY_FOLDER: "story"
  ENV: "dev123"
Apply the config map

Let's update the deployment.yml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: story-deployment
spec:
  replicas: 2
  selector:
    matchLabels:
      app: story
  template:
    metadata:
      labels:
        app: story
    spec:
      containers:
        - name: story
          image: machingclee/kub-data-demo:2
          imagePullPolicy: Always
          env:
            - name: STORY_FOLDER # method 1
              value: "story"
            - name: STORY_FOLDER_2 # method 2
              valueFrom:
                configMapKeyRef:
                  name: data-store-env
                  key: STORY_FOLDER
            - name: ENV
              valueFrom:
                configMapKeyRef:
                  name: data-store-env
                  key: ENV
          volumeMounts:
            - mountPath: /app/story
              name: story-volume
      volumes:
        - name: story-volume
          persistentVolumeClaim:
            claimName: host-pvc

and apply the ConfigMap:

k apply -f environment.yml

For the new environment variables to take effect, we need to restart all pods:

k rollout restart deployment story-deployment

Rolling Update

When a new image is uploaded using :latest tag but the deployment.yml has no changes, we need rolling-update to apply the image update:

k rollout restart deployment users-deployment
