November 19, 2023

Load Test and Stress Test by Gatling

gatling

test

Contents

Use Scala

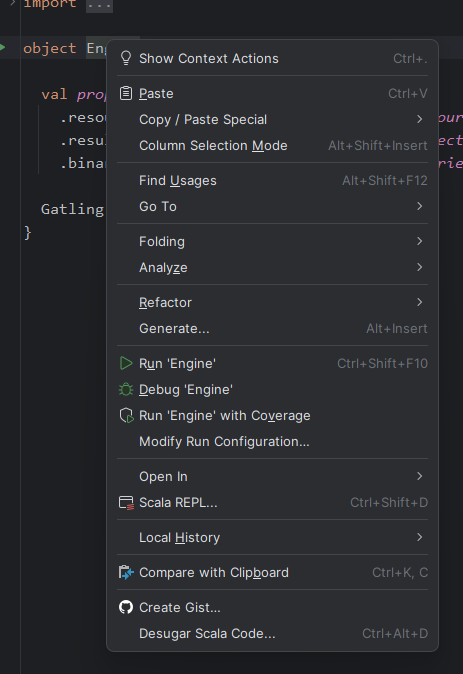

Open this github project in intelliJ and install everything that we are asked to install.

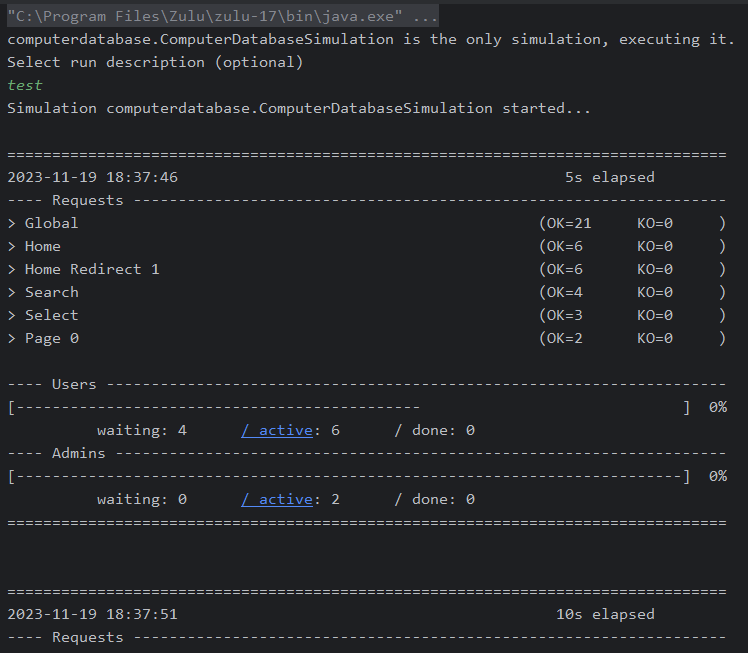

And the following should be shown in the console:

Up to this point we are sure that installation is completed.

Custom Script

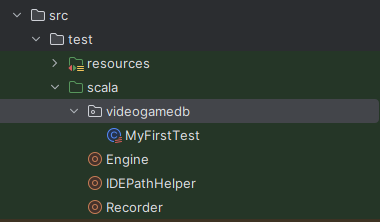

Now follow this architecture

And create our first simiulation script:

package videogamedb

import io.gatling.core.Predef._
import io.gatling.http.Predef._

class MyFirstTest extends Simulation
{
  //http config
  val httpProtocal = http.baseUrl(url="https://videogamedb.uk/api")
    .acceptHeader(value="application/json")

  //  scenario def
  val scn = scenario(name="My First Test")
    .exec(
      http("Get all games")
        .get("/videogame")
    )

  //  load scenario
  setUp(scn.inject(atOnceUsers(1))).protocols(httpProtocal)
}

Now run our engine again, as usual java framework try to grab all Simulation class files in a blackbox secretly. Once we type test, we get:

videogamedb.MyFirstTest is the only simulation, executing it.
Select run description (optional)
test
Simulation videogamedb.MyFirstTest started...

================================================================================
2023-11-19 19:01:19                                           0s elapsed
---- Requests ------------------------------------------------------------------
> Global                                                   (OK=1      KO=0     )
> Get all games                                            (OK=1      KO=0     )

---- My First Test -------------------------------------------------------------
[##########################################################################]100%
          waiting: 0      / active: 0      / done: 1
================================================================================

Simulation videogamedb.MyFirstTest completed in 0 seconds
Parsing log file(s)...
Parsing log file(s) done
Generating reports...

================================================================================
---- Global Information --------------------------------------------------------
> request count                                          1 (OK=1      KO=0     )
> min response time                                    721 (OK=721    KO=-     )
> max response time                                    721 (OK=721    KO=-     )
> mean response time                                   721 (OK=721    KO=-     )
> std deviation                                          0 (OK=0      KO=-     )
> response time 50th percentile                        721 (OK=721    KO=-     )
> response time 75th percentile                        721 (OK=721    KO=-     )
> response time 95th percentile                        721 (OK=721    KO=-     )
> response time 99th percentile                        721 (OK=721    KO=-     )
> mean requests/sec                                      1 (OK=1      KO=-     )
---- Response Time Distribution ------------------------------------------------
> t < 800 ms                                             1 (100%)
> 800 ms <= t < 1200 ms                                  0 (  0%)
> t >= 1200 ms                                           0 (  0%)
> failed                                                 0 (  0%)
================================================================================

Reports generated in 0s.
Please open the following file: file:///C:/Users/user/Repos/gatling/2023-11-19-gatling-maven-plugin-demo-scala-main/target/gatling/myfirsttest-20231119110117759/index.html

Process finished with exit code 0

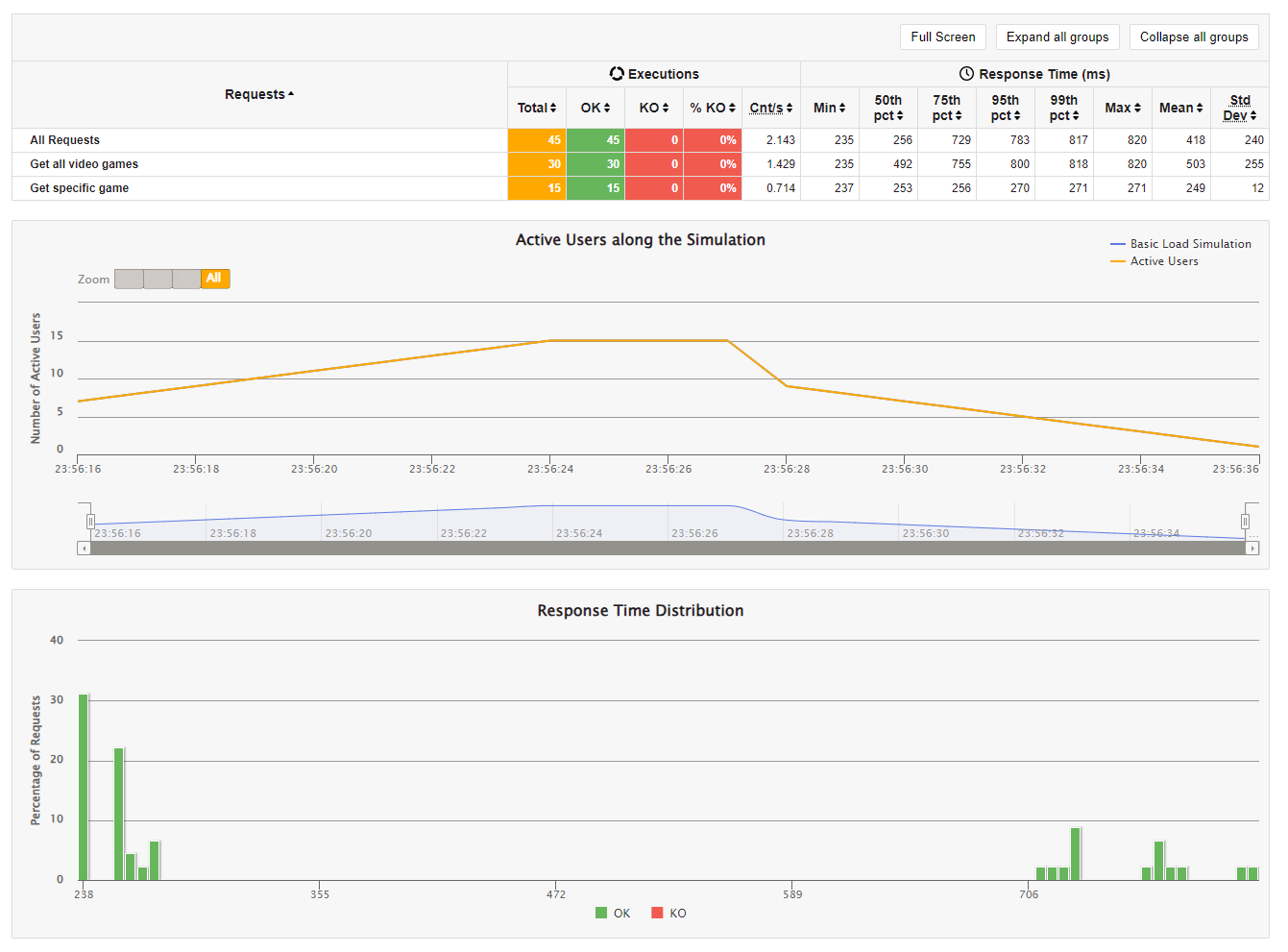

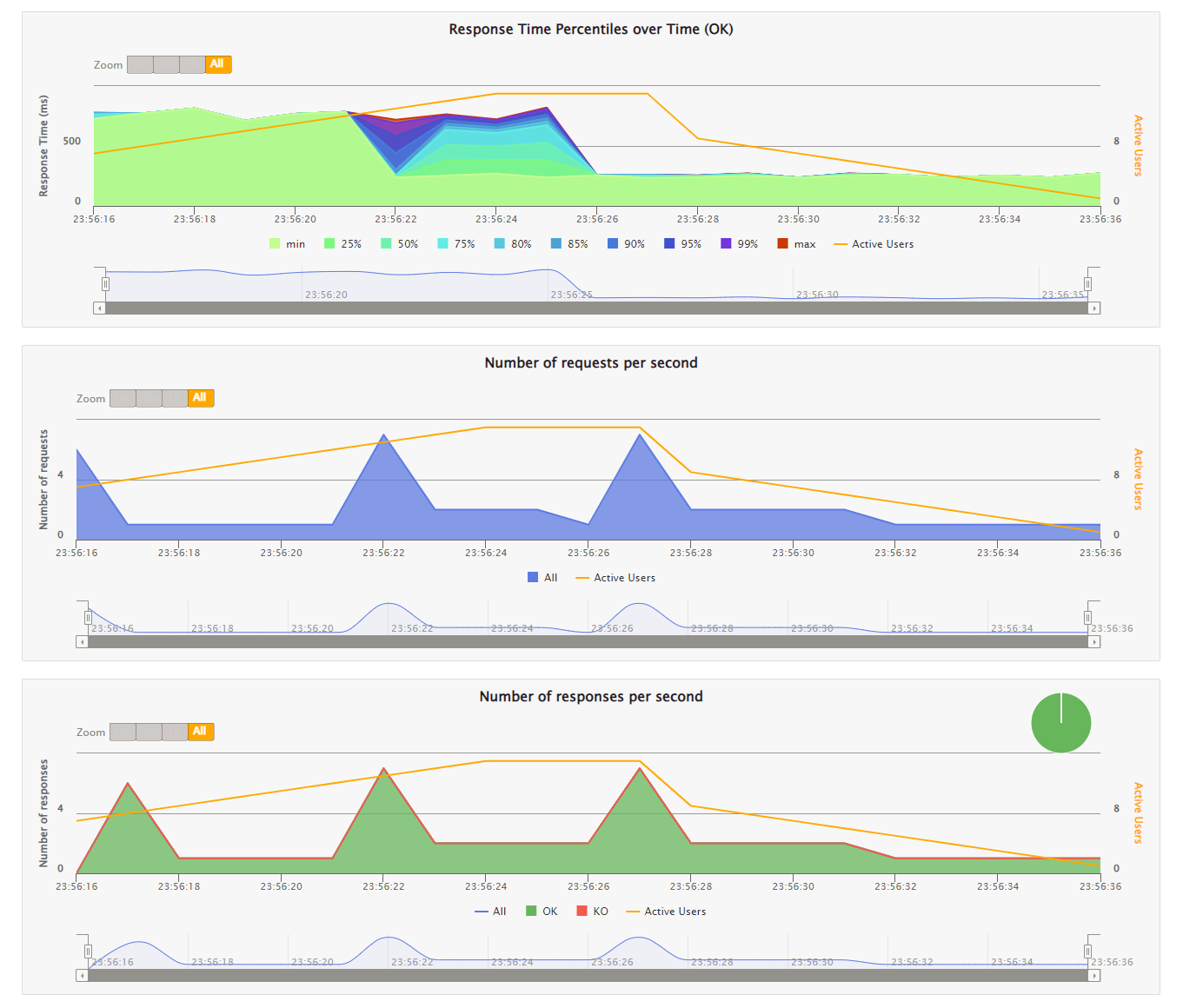

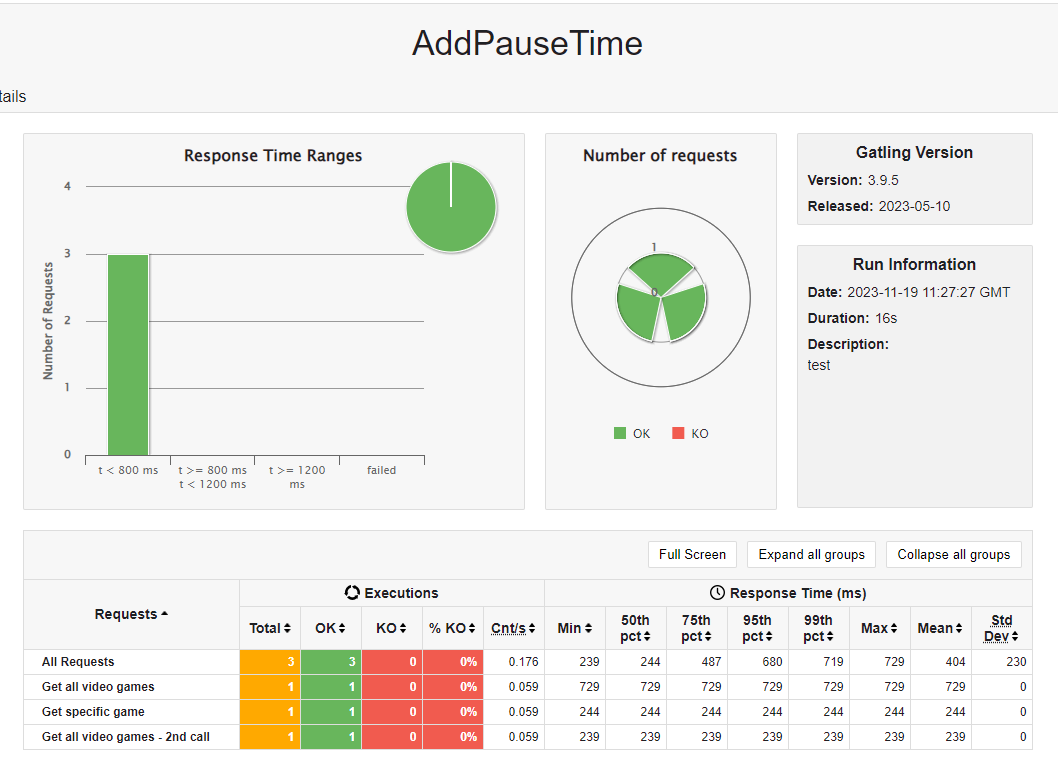

We also get a full review in an html file:

Scripts Fundamental in Gatling

Pause
package videogamedb.scriptfundamentals
import io.gatling.core.Predef._
import io.gatling.http.Predef._

import scala.concurrent.duration.DurationInt

class AddPauseTime extends Simulation{
  val httpProtocol = http.baseUrl("https://videogamedb.uk/api")
    .acceptHeader("application/json")

  val scn = scenario("Video Game DB - 3 calls")
    .exec(http("Get all video games").get("/videogame"))
    .pause(5)

    .exec(http("Get specific game").get("/videogame/1"))
    .pause(1, 10)  // random pause time between 1 and 10

    .exec(http("Get all video games - 2nd call").get("/videogame"))
    .pause(3000.milliseconds)

  setUp(scn.inject(atOnceUsers(users=1)).protocols(httpProtocol))
}
Check Response Code
package videogamedb.scriptfundamentals
import io.gatling.core.Predef._
import io.gatling.http.Predef._

import scala.concurrent.duration.DurationInt

class CheckResponseCode extends Simulation{
  val httpProtocol = http.baseUrl("https://videogamedb.uk/api")
    .acceptHeader("application/json")

  val scn = scenario("Video Game DB - 3 calls")
    .exec(
      http("Get all video games")
        .get("/videogame")
        .check(status.is(200))
    )
    .pause(5)

    .exec(http("Get specific game")
      .get("/videogame/1")
      .check(status.in(200 to 210))
    )
    .pause(1, 10)  // random pause time between 1 and 10

    .exec(http("Get all video games - 2nd call")
      .get("/videogame")
      .check(status.not(404), status.not(500))
    )
    .pause(3000.milliseconds)

  setUp(scn.inject(atOnceUsers(users=1)).protocols(httpProtocol))
}
Check Response Body
package videogamedb.scriptfundamentals
import io.gatling.core.Predef._
import io.gatling.http.Predef._

import scala.concurrent.duration.DurationInt

class CheckResponseBodyAndExtract extends Simulation{
  val httpProtocol = http.baseUrl("https://videogamedb.uk/api")
    .acceptHeader("application/json")

  val scn = scenario("Check with JSON path").exec(
    http("Get specific game")
      .get("/videogame/1")
      .check(jsonPath("$.name").is("Resident Evil 4"))
  ).exec()


  setUp(scn.inject(atOnceUsers(users=1)).protocols(httpProtocol))
}
Save the Result in Variable and Reuse it
package videogamedb.scriptfundamentals
import io.gatling.core.Predef._
import io.gatling.http.Predef._

import scala.concurrent.duration.DurationInt

class CheckResponseBodyAndExtract extends Simulation{
  val httpProtocol = http.baseUrl("https://videogamedb.uk/api")
    .acceptHeader("application/json")

  val scn = scenario("Check with JSON path")
    .exec(http("Get specific game")
      .get("/videogame/1")
      .check(jsonPath("$.name").is("Resident Evil 4"))
  )

    .exec(http("Get all video games")
      .get("/videogame")
      .check(jsonPath(path="$[1].id").saveAs("gameId"))
    )

    .exec(http("Get specific game")
      .get("/videogame/#{gameId}")
      .check(jsonPath("$.name").is("Gran Turismo 3"))
    )

  setUp(scn.inject(atOnceUsers(users=1)).protocols(httpProtocol))
}
Logging for Debugging
package videogamedb.scriptfundamentals
import io.gatling.core.Predef._
import io.gatling.http.Predef._

import scala.concurrent.duration.DurationInt

class CheckResponseBodyAndExtract extends Simulation{
  val httpProtocol = http.baseUrl("https://videogamedb.uk/api")
    .acceptHeader("application/json")

  val scn = scenario("Check with JSON path")
    .exec(http("Get specific game")
      .get("/videogame/1")
      .check(jsonPath("$.name").is("Resident Evil 4"))
  )

    .exec(http("Get all video games")
      .get("/videogame")
      .check(jsonPath(path="$[1].id").saveAs("gameId"))
    )
    .exec { session => println(session); session}

    .exec(http("Get specific game")
      .get("/videogame/#{gameId}")
      .check(jsonPath("$.name").is("Gran Turismo 3"))
      .check(bodyString.saveAs("responseBody"))
    )
    .exec { session => println(session("responseBody").as[String]); session}

  setUp(scn.inject(atOnceUsers(users=1)).protocols(httpProtocol))
}
Code Reuse
package videogamedb.scriptfundamentals
import io.gatling.core.Predef._
import io.gatling.http.Predef._

class CodeReuse extends Simulation {
  val httpProtocol = http.baseUrl("https://videogamedb.uk/api")
    .acceptHeader("application/json")

  def getAllVideoGames() = {
    exec(
      http("Get all video games")
        .get("/videogame")
        .check(status.is(200))
    )
  }

  def getSpecificGame() = {
    exec(
      http("Get specific game")
        .get("/videogame/1")
        .check(status.in(200 to 210))
    )
  }

  val scn = scenario("Code reuse")
    .exec(getAllVideoGames())
    .pause(5)
    .exec(getSpecificGame())
    .pause(5)
    .exec(getAllVideoGames())

  setUp(scn.inject(atOnceUsers(users=1)).protocols(httpProtocol))
}
Repeat Requests Several Times (Single User)
package videogamedb.scriptfundamentals
import io.gatling.core.Predef._
import io.gatling.http.Predef._

class CodeReuse extends Simulation {
  val httpProtocol = http.baseUrl("https://videogamedb.uk/api")
    .acceptHeader("application/json")

  def getAllVideoGames() = {
    repeat(3){
      exec(
        http("Get all video games")
          .get("/videogame")
          .check(status.is(200))
      )
    }
  }

  def getSpecificGame() = {
    repeat(5, "counter"){
      exec(
        http(s"Get specific game with id: #{counter}")
          .get("/videogame/#{counter}")
          .check(status.in(200 to 210))
      )
    }
  }

  val scn = scenario("Code reuse")
    .exec(getAllVideoGames())
    .pause(5)
    .exec(getSpecificGame())
    .pause(5)
    .repeat(2){
      getAllVideoGames()
    }

  setUp(scn.inject(atOnceUsers(users=1)).protocols(httpProtocol))
}
Authenticate and Use that Token for Post Request

The authentication post request returns the following json

{
  "token": "eyJhbGciOiJIUzI1NiJ9.eyJzdWIiOiJhZG1pbiIsImlhdCI6MTcwMDQwMjQ0MCwiZXhwIjoxNzAwNDA2MDQwfQ.MgyULBwMTd_Kj13E7UwrMALNctO6NUTL9qxS_sOk39k"
}

We can use jsonPath $.token to extract this value and use it elsewhere.

package videogamedb.scriptfundamentals
import io.gatling.core.Predef._
import io.gatling.http.Predef._

class Authenticate extends Simulation {
  val httpProtocol = http.baseUrl("https://videogamedb.uk/api")
    .acceptHeader("application/json")
    .contentTypeHeader("application/json")

  def authenticate() = {
    exec(http("Authenticate")
      .post("/authenticate")
      .body(StringBody("{\n  \"password\": \"admin\",\n  \"username\": \"admin\"\n}"))
      .check(jsonPath("$.token").saveAs("jwtToken"))
    )
  }

  def createNewGame() = {
    exec(http("Create new game")
      .post("/videogame")
      .header("Authorization", "Bearer #{jwtToken}")
      .body(StringBody(
        "{\n  \"category\": \"Platform\",\n  \"name\": \"Mario\",\n  \"rating\": \"Mature\",\n  \"releaseDate\": \"2012-05-04\",\n  \"reviewScore\": 85\n}"
      ))
    )
  }

  val scn = scenario("Authenticate")
    .exec(authenticate())
    .exec(createNewGame())

  setUp(scn.inject(atOnceUsers(users = 1)).protocols(httpProtocol))
}

Feed Data into the Test

CsvFeeder
package videogamedb.feeders
import io.gatling.core.Predef._
import io.gatling.http.Predef._

import scala.concurrent.duration.DurationInt

class CsvFeeder extends Simulation{
  val httpProtocol = http.baseUrl("https://videogamedb.uk/api")
    .acceptHeader("application/json")

  val csvFeeder = csv("data/gameCsvFile.csv").circular

  def getSpecificVideoGame() = {
    repeat(10){
      feed(csvFeeder)
        .exec(http("Get video game with name - #{gameName}")
        .get("/videogame/#{gameId}")
          .check(jsonPath("$.name").is("#{gameName}"))
          .check(status.is(200))
      )
        .pause(1)
    }
  }

  val scn = scenario("Csv feeder test")
    .exec(getSpecificVideoGame())
  setUp(scn.inject(atOnceUsers(users=1)).protocols(httpProtocol))
}
Complex Feeder with Json Template, Random Data (String, Integer, Date)
Json Template

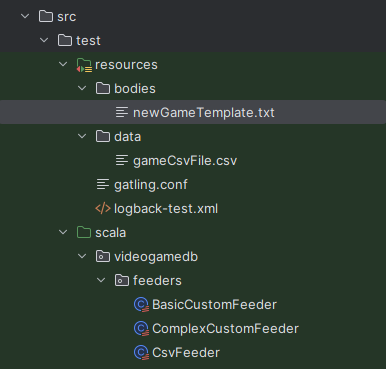

Let's create a template here:

Note that for non-string content we should not enclose it by "'s.

// resources/bodies/newGameTemplate.txt
{
  "id": #{gameId} ,
  "category": "#{category}",
  "name": "#{name}",
  "rating": "#{rating}",
  "releaseDate": "#{releaseDate}",
  "reviewScore": #{reviewScore}
}
Script
package videogamedb.feeders
import io.gatling.core.Predef._
import io.gatling.http.Predef._

import java.time.LocalDate
import java.time.format.DateTimeFormatter
import scala.util.Random

class ComplexCustomFeeder extends Simulation{
  val httpProtocol = http.baseUrl("https://videogamedb.uk/api")
    .acceptHeader("application/json")
    .contentTypeHeader("application/json")

  val idNumbers = (1 to 10).iterator
  val rnd = new Random()
  val now = LocalDate.now()
  val pattern = DateTimeFormatter.ofPattern("yyyy-MM-dd")

  def randomString(length:Int) ={
    rnd.alphanumeric.filter(_.isLetter).take(length).mkString
  }

  def randomDate(startDate: LocalDate, random:Random):String = {
    startDate.minusDays(random.nextInt(30)).format(pattern)
  }

  val customFeeder = Iterator.continually(Map(
    "gameId" -> idNumbers.next(),
    "name" -> ("Game-" + randomString(5)),
    "releaseDate" -> randomDate(now, rnd),
    "reviewScore" -> rnd.nextInt(100),
    "category" ->  ("Category-" + randomString(6)),
    "rating" ->  ("Rating-" + randomString(4)),
  ))

  def authenticate() = {
    exec(http("Authenticate")
      .post("/authenticate")
      .body(StringBody("{\n  \"password\": \"admin\",\n  \"username\": \"admin\"\n}"))
      .check(jsonPath("$.token").saveAs("jwtToken"))
    )
  }

  def createNewGame()={
    repeat(10){
      feed(customFeeder)
        .exec(http("Create new game - #{name}").
          post("/videogame")
          .header("authorization", "Bearer #{jwtToken}")
          .body(ElFileBody("bodies/newGameTemplate.json")).asJson
          .check(bodyString.saveAs("responseBody"))
        )
        .exec{session => println(session("responseBody").as[String]); session}
        .pause(1)
    }
  }

  val scn = scenario("Csv feeder test")
    .exec(authenticate())
    .exec(createNewGame())

  setUp(scn.inject(atOnceUsers(users = 1)).protocols(httpProtocol))
}

Load Test with Scenario: Increase Number of Users Concurrently for a Period

package videogamedb.simulations

import io.gatling.core.Predef._
import io.gatling.http.Predef._

class BasicLoadSimulation extends Simulation {

  val httpProtocol = http.baseUrl("https://videogamedb.uk/api")
    .acceptHeader("application/json")

  def getAllVideoGames() = {
    exec(
      http("Get all video games")
        .get("/videogame")
    )
  }

  def getSpecificGame() = {
    exec(
      http("Get specific game")
        .get("/videogame/2")
    )
  }

  val scn = scenario("Basic Load Simulation")
    .exec(getAllVideoGames())
    .pause(5)
    .exec(getSpecificGame())
    .pause(5)
    .exec(getAllVideoGames())

  setUp(
    scn.inject(
      nothingFor(5),
      atOnceUsers(5),
      rampUsers(10).during(10)
    ).protocols(httpProtocol)
  )
}

More Setup for Different Scenario from Official Documentation
