July 17, 2023

Gmail and Inbox Push Notification

google-cloud

Contents

Create a Projects to use These two Services

  • Go to google cloud console https://console.cloud.google.com/

  • Click

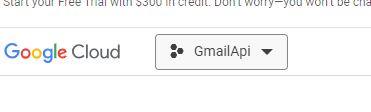

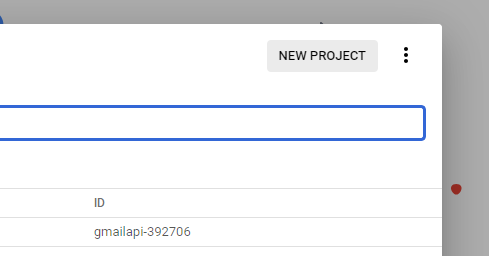

  • Create a project

  • Choose the service

    In our case we need

    • Gmail API

    • Pub/Sub API

    And then enable API, try now, ..., etc (each service has the button placed in different positions).

Create OAuth Detail

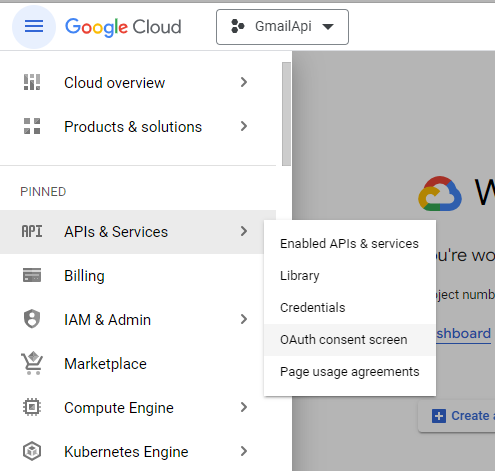

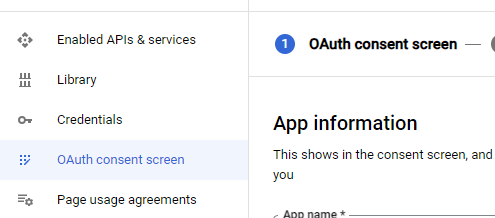

  • Then we can click

    to control the access right (called scope) to the service for users authenticated through oauth.

  • Step 1. Most of the fields are optional, just fill in App name and User support email.

    then click save and continue at the bottom.

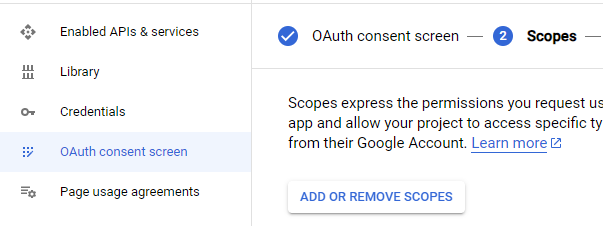

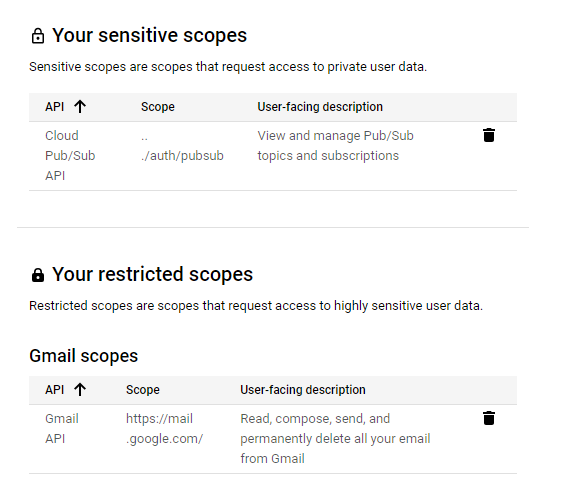

  • Step 2. We define access right for oauth-authenticated users. Click Add or remove scopes:

    in our case we need:

  • Step 3. Add users who is available to using the apis from this project

    james.lee now can use pubsub and gmailapi with defined rights in the scopes.

  • Since we are the only users, we can keep staying at test state.

Create Credentials

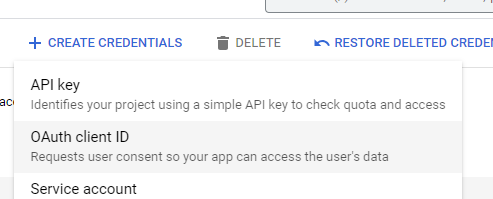

  • Save and continue, we create credentials for authentication.

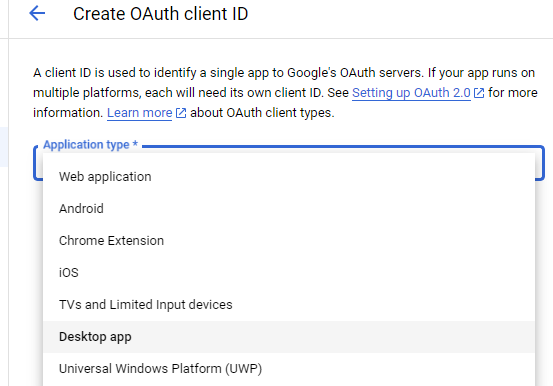

  • Choose Desktop app

  • Fill in the blanks, then create.

  • The resulting credential.json is for api which use oauth-v2 authentication.

Another Version of Credential (can skip and revisit when needed, pubsub library may need it)

  • Since we are not going to use pubsub's pulling, we just receive push notification by webhook (let google send post request to us), we don't need any package for pubsub in our project which requires oauth-v1 credential.

  • In the future if pulling is needed, we can get v1 credential in the folloing way:

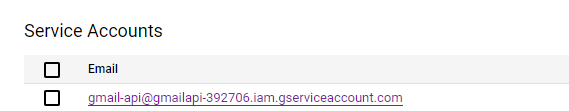

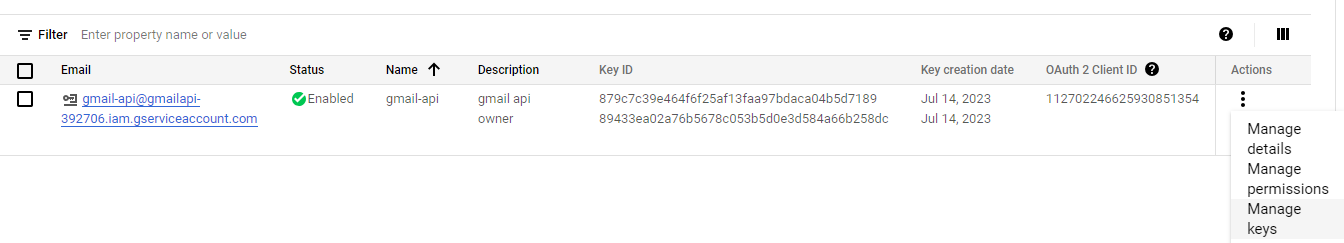

  • manage server account
  • manage keys

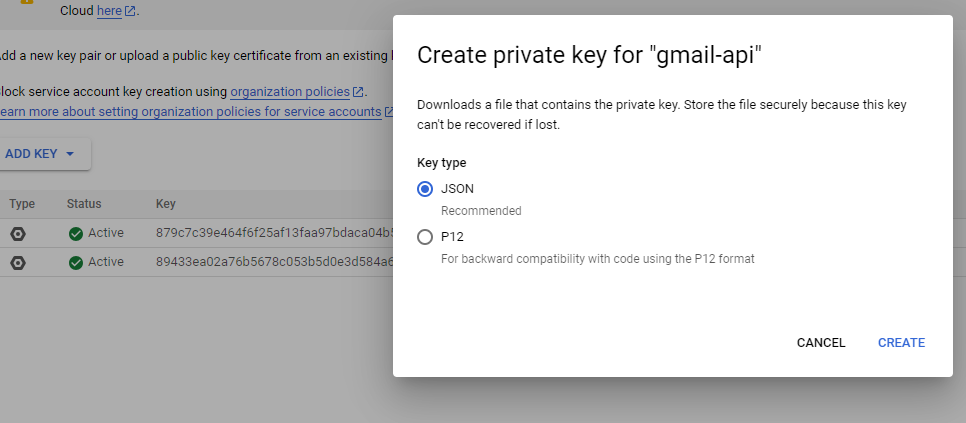

  • add key download json:

Configure Pubsub API

Create Topic

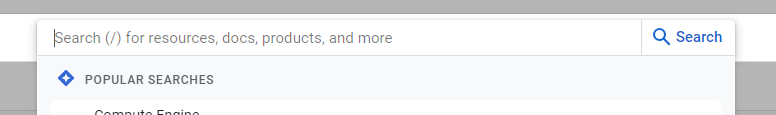

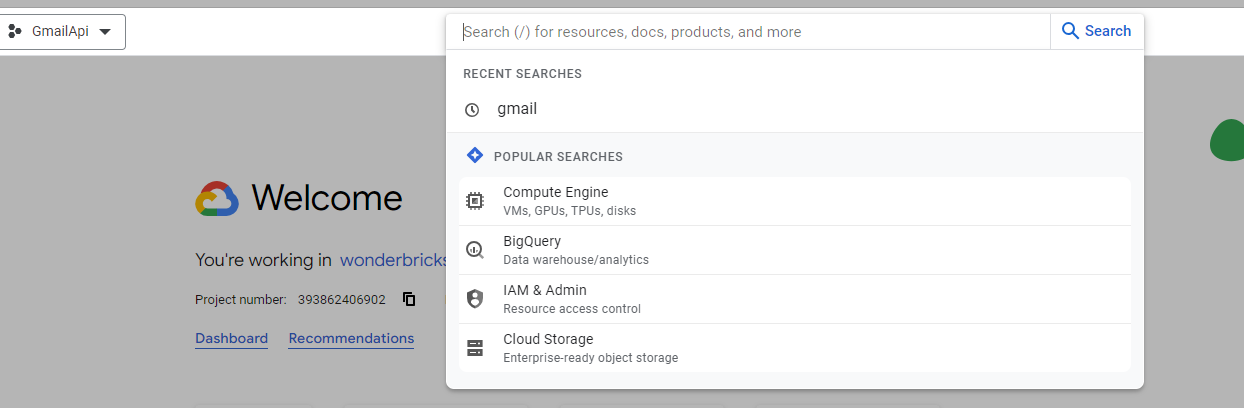

  • Go to pub/sub api page by using the search bar again

  • Create a topic with default option

Create Subscription

  • Create subscription and selected our newly created topic

Create Publisher for the Topic

  • We next create publisher that monitor our mail box and push message to the topic. We following documentation about push notifications in gmail api.

    To do this, you need to grant publish privileges to gmail-api-push@system.gserviceaccount.com. You can do this using the Cloud Pub/Sub Developer Console permissions interface following the resource-level access control instructions.

    • Select Topic

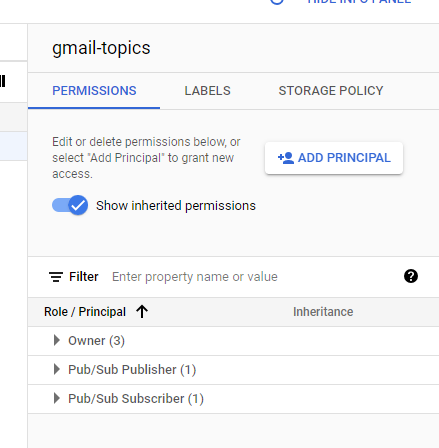

    • Click Add Principal at the right column

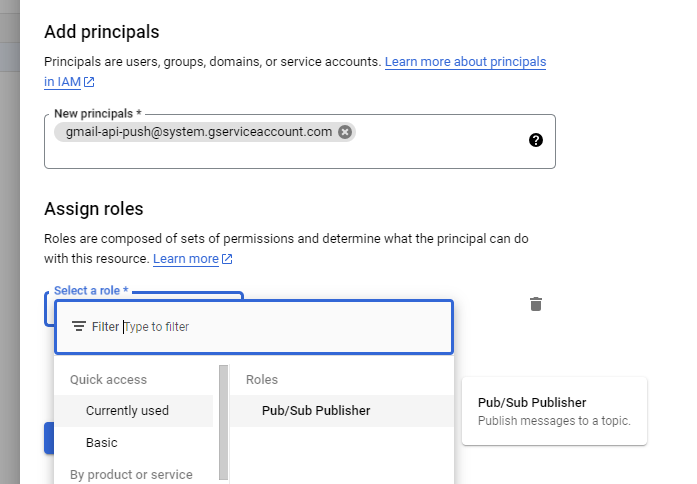

    • Fill in the email address, then assign publisher right

Create Subscriber for the Topic

  • Next we grant receiver right to our google users:

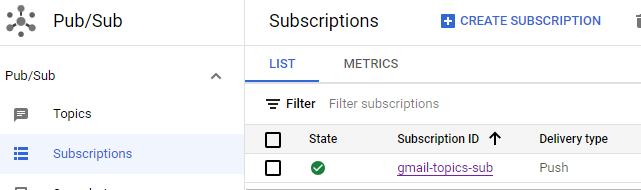

    • select a topic in subscriptions

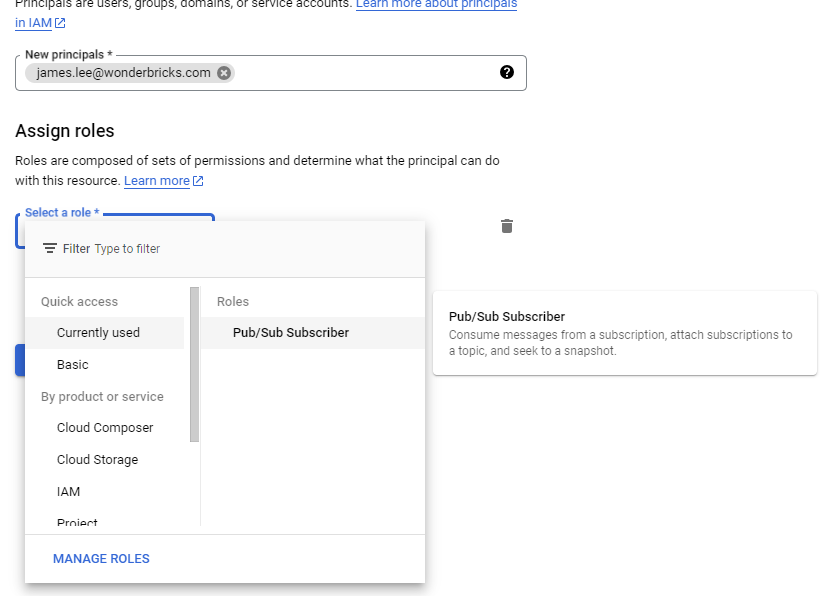

    • Add principal at the right column, then fill in:

Use the Credential in the Program

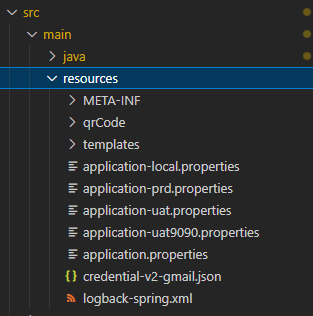

  • Place your credential at

    name it credential-v2-gmail.json, this is configured in GoogleConfig.java.

    We may move the string to properties file, but 3 environments can share the same crendential.

  • The actual authentication will be done when we run the springboot program, we will be asked to sigin in through a given link in the terminal.

  • Once authentication is done, a file will be created in token-local/ and we will not be asked to login again when that file exists.

  • In properties file we have configured GoogleConfig to use token-uat/, token-prd/ in different environment

  • To avoid the package prompting login action in uat and prd, we may create these addional two folders sign-in copy the generated file into the correct folder before deployment.

Code Implementation to Use Credential and Start Webhook in Java

The following is essentially a modification of code presented in documentation.

mport com.google.api.client.auth.oauth2.Credential;
import com.google.api.client.extensions.java6.auth.oauth2.AuthorizationCodeInstalledApp;
import com.google.api.client.extensions.jetty.auth.oauth2.LocalServerReceiver;
import com.google.api.client.googleapis.auth.oauth2.GoogleAuthorizationCodeFlow;
import com.google.api.client.googleapis.auth.oauth2.GoogleClientSecrets;
import com.google.api.client.googleapis.javanet.GoogleNetHttpTransport;
import com.google.api.client.http.javanet.NetHttpTransport;
import com.google.api.client.json.JsonFactory;
import com.google.api.client.json.gson.GsonFactory;
import com.google.api.client.util.store.FileDataStoreFactory;
import com.google.api.services.gmail.Gmail;
import com.google.api.services.gmail.GmailScopes;
import com.google.api.services.gmail.model.WatchRequest;
import com.google.api.services.gmail.model.WatchResponse;
import com.wonderbricks.web.service.impl.GmailServiceImpl;
import java.io.FileNotFoundException;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.security.GeneralSecurityException;
import java.util.Arrays;
import java.util.Collections;
import java.util.List;
import java.util.concurrent.CompletableFuture;
import java.util.concurrent.TimeUnit;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.CommandLineRunner;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class GoogleConfig {

    @Value("${google.token}")
    private String TOKENS_DIRECTORY_PATH;

    @Value("${google.credential}")
    private String CREDENTIAL_FILE_PATH;

    @Value("${google.app}")
    private String APPLICATION_NAME;

    @Value("${google.pub.topic}")
    private String PUBLISHER_TOPIC_NAME;

    private static final JsonFactory JSON_FACTORY = GsonFactory.getDefaultInstance();

    private static final List<String> SCOPES = Collections.singletonList(GmailScopes.MAIL_GOOGLE_COM);

    @Bean
    Gmail getGmail() throws GeneralSecurityException, IOException {
        final NetHttpTransport HTTP_TRANSPORT = GoogleNetHttpTransport.newTrustedTransport();
        Gmail service = new Gmail.Builder(HTTP_TRANSPORT, JSON_FACTORY, getCredentials(HTTP_TRANSPORT))
                .setApplicationName(APPLICATION_NAME)
                .build();
        return service;
    }

    private Credential getCredentials(final NetHttpTransport HTTP_TRANSPORT)
            throws IOException {

        InputStream in = GmailServiceImpl.class.getResourceAsStream(CREDENTIAL_FILE_PATH);
        if (in == null) {
            throw new FileNotFoundException("Resource not found: " + CREDENTIAL_FILE_PATH);
        }
        GoogleClientSecrets clientSecrets = GoogleClientSecrets.load(JSON_FACTORY, new InputStreamReader(in));

        GoogleAuthorizationCodeFlow flow = new GoogleAuthorizationCodeFlow.Builder(
                HTTP_TRANSPORT, JSON_FACTORY, clientSecrets, SCOPES)
                .setDataStoreFactory(new FileDataStoreFactory(new java.io.File(TOKENS_DIRECTORY_PATH)))
                .setAccessType("offline")
                .build();
        LocalServerReceiver receiver = new LocalServerReceiver.Builder().setPort(8888).build();
        Credential credential = new AuthorizationCodeInstalledApp(flow, receiver).authorize("user");
        return credential;
    }

    public void startWebHook(Gmail gmail) throws IOException, InterruptedException {
        WatchRequest request = new WatchRequest();
        request.setLabelIds(Arrays.asList("INBOX"));
        request.setTopicName(PUBLISHER_TOPIC_NAME);
        request.setLabelFilterAction("INCLUDE");
        WatchResponse res = gmail.users().watch("me", request).execute();
        Long expiredAfter = res.getExpiration(); // millis
        CompletableFuture.delayedExecutor(expiredAfter, TimeUnit.MILLISECONDS).execute(() -> {
            try {
                startWebHook(gmail);
            } catch (IOException | InterruptedException e) {
                e.printStackTrace();
            }
        });
    }

    // Run after application context has been created
    @Bean
    CommandLineRunner initWebhook(Gmail gmail) {
        return args -> {
            var logger = LoggerFactory.getLogger(GoogleConfig.class);
            logger.info("Start Watching Gmail Account");
            startWebHook(gmail);
        };
    }
}
