Revisit Docker and Gitlab-CI

cicd

docker

gitlab

Contents

Docker

Basic Commands
  • docker ps List all running containers
  • docker ps -a List all container regardless of if it is runing
  • docker run <image-tag> Run a docker image
  • docker run -d <image-tag> Run a docker image in detached mode
  • docker stop <container-id> Stop a container by and
  • docker start <same-id> Get a list of all available images docker images
  • docker run -p6000:6379 redis Specify the port from our computer to the port used by the image in the container
  • docker logs <container-name> See the log of the container
  • docker run redis --name old_redis Provides a name to a container
  • docker exec -it <image-name> /bin/bash ssh into the container, and exit to get out
  • docker logs <container-name> | tail Display the stream of log lines
  • docker rm -f $(docker ps -a -q) Delete all running container
  • docker rmi -f $(docker images -aq) Delete all images forcefully
Docker Network
Basic Commands
  • docker network create <network-name> Create a network
  • docker network ls List all networks

We run two docker images in the same network:

  •   docker run -p 27017:27017 \
  -d \
  -e MONGO_INITDB_ROOT_USERNAME=admin \
  -e MONGO_INITDB_ROOT_PASSWORD=123 \
  --name mongodb \
  --net mongo-network \
  mongo
  •   docker run -d -p 8081:8081 \
  -e ME_CONFIG_MONGODB_ADMINUSERNAME=admin \
  -e ME_CONFIG_MONGODB_ADMINPASSWORD=123 \
  --net mongo-network \
  --name mongo-express \
  -e ME_CONFIG_MONGODB_SERVER=mongodb \
  mongo-express
How do Two Containers Communicate?

When both container are in the same network, they can commnunicate with each other by container-name as a domain.

Docker-Compose and Dependencies
The Basic Structure of docker-compose.yaml

We don't need to specify the network as docker-compose takes care of it.

version: "3"
services:
  mongodb: # container name (--name param)
    image: mongo # the image tag
    ports:
      - 27017:27017
    environment:
      - MONGO_INITDB_ROOT_USERNAME=admin
      - MONGO_INITDB_ROOT_PASSWORD=123
  mongo-express:
    image: mongo-express
    ports:
      - 8080:8081
    depends_on:
      - mongodb # wait for the container mongodb to start
    environment:
      - ME_CONFIG_MONGODB_ADMINUSERNAME=admin
      - ME_CONFIG_MONGODB_ADMINPASSWORD=123
      - ME_CONFIG_MONGODB_SERVER=mongodb
  • Now we can run docker-compose -f mongo.yaml up -d to run both mongo and mongo-express containers.
  • We can stop the containers and remove the network by docker-compose -f mongo.yaml down.
Communication Between Two Images in Docker-Compose

In my index.ts I have written a simple backend:

1import express, { Request, Response } from "express";
2import mongoose, { InferSchemaType, Schema } from "mongoose";
3
4const mongoDbContainerName = "mongodb-test";
5const dbName = "JamesTestDB";
6
7(async () => {
8  try {
9    console.log("Start mongo connection ...");
10    await mongoose.connect(
11      `mongodb://admin:123@${mongoDbContainerName}:27017/${dbName}?authSource=admin`,
12      {
13        connectTimeoutMS: 30000,
14        serverSelectionTimeoutMS: 30000,
15      }
16    );
17    console.log("Connected!");
18  } catch (e) {
19    console.log("Connection Failed");
20    console.log(JSON.stringify(e));
21  }
22
23  const app = express();
24
25  const studentSchema = new Schema({
26    name: { type: String, default: "hahaha" },
27    age: { type: Number, min: 18, index: true },
28  });
29  type Student = InferSchemaType<typeof studentSchema>;
30
31  const StudentModel = mongoose.model<Student>("Student", studentSchema);
32
33  app.get(
34    "/add-student",
35    async (
36      req: Request<{}, {}, {}, { age: number; name: string }>,
37      res: Response
38    ) => {
39      const { age, name } = req.query;
40      await StudentModel.create({ age, name });
41      res.json({ success: true, msg: `${name} of age ${age} is created.` });
42    }
43  );
44  app.listen(3000);
45})();

As we can see in line 11 our containers in the same network can communicate with each other using the running container name.

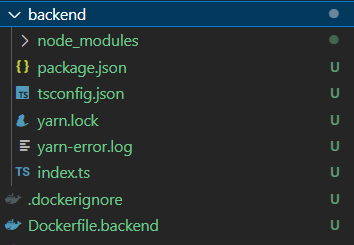

Build Docker Images

Suppose that we have a backend service written in node-js and we want to dockerize it:

We write the following in Dockerfile.backend:

FROM node:13-alpine

# ENV MONGO_DB_USERNAME=admin
# ENV MONGO_DB_PWD=123

RUN mkdir -p /home/app
COPY ./backend /home/app

CMD ["npm", "run", "start"]

and run

docker build -t add-user:1.0 -f Dockerfile.backend .
  • -t means a tuple <img_name>:<version>, it is used for images.
  • We also have a concept of name, which is for the name of running container.
  • In short, tags are for launching the containers, names are for utilizing running containers.
Volumes
  • docker volume rm $(docker volume ls -q) -f Remove all volume
version: "3"
services:
  add-user:
    image: add-user:1.0
    ports:
      - 3000:3000
    depends_on:
      - mongodb-test
  mongodb-test: # container name (--name param)
    image: mongo # the image tag
    ports:
      - 27018:27017
    environment:
      - MONGO_INITDB_DATABASE=JamesTestDB
      - MONGO_INITDB_ROOT_USERNAME=admin
      - MONGO_INITDB_ROOT_PASSWORD=123
    volumes:
      - mongo-data:/data/db # position to save db data within the container
      - ./init-mongo.js:/docker-entrypoint-initdb.d/init-mongo.js
  mongo-express:
    image: mongo-express
    restart: always
    ports:
      - 8080:8081
    depends_on:
      - mongodb-test # wait for the container mongodb to start
    environment:
      - ME_CONFIG_MONGODB_ADMINUSERNAME=admin
      - ME_CONFIG_MONGODB_ADMINPASSWORD=123
      - ME_CONFIG_MONGODB_SERVER=mongodb-test
volumes:
  mongo-data: # volume name
    driver: local

  • For windows volums are saved in

    • \\wsl$\docker-desktop-data\version-pack-data\community\docker\volumes

  • For linux/mac the volumes are saved in /var/lib/docker

Gitlab-CI (.gitlab-ci.yml)

EC2 Instance

  • We will be developing a workflow automating the deployment to dev server (an ec2 instance).

  • For this, to avoid prefixing our docker command by sudo, we:

    1. ssh into an ec2 instance
    2. newgrp docker
    3. sudo usermod -aG docker ubuntu
    4. sudo chown $USER /var/run/docker.sock

  • Now in gitlab > settings > CICD > variables, we put our SSH key (cat *.pem and copy) into a variable.

    Be reminded that we need to put an empty line at the bottom (line 5 below):

    1-----BEGIN OPENSSH PRIVATE KEY-----
2...
3EQIMHa10Q+ZGHab9dGSTTAxGcK7gjqq/qWXmrrjYGEaaAAAAAAECAwQF
4-----END OPENSSH PRIVATE KEY-----
5

    and be remined to set the variable type to ENV_VAR, not FILE.

  • Now our deployment job in simplest term:

    deploy_to_dev:
  stage: deploy
  before_script:
    - "which ssh-agent || ( apt-get install -qq openssh-client )"
    - mkdir -p ~/.ssh
    - touch ~/.ssh/id_rsa
    - echo "$SSH_PRIVATE_KEY" | tr -d '\r' > ~/.ssh/id_rsa
    - chmod 600 ~/.ssh/id_rsa
    - echo -e "Host *\nStrictHostKeyChecking no\n" > ~/.ssh/config
    - eval "$(ssh-agent -s)"
    - ssh-add ~/.ssh/id_rsa

  script: # skip the checking of authenticity of host by -o
    - ssh ubuntu@$DEV_SERVER_IP \
      "
      docker login -u $CI_REGISTRY_USER -p $CI_REGISTRY_PASSWORD $CI_REGISTRY &&
      docker run -d -p 3000:3000 $IMAGE_NAME:$IMAGE_TAG
      "
Environment Field

For each job we can provide name and url in environment:

deploy_to_dev:
  ...
  environment:
    name: development
    url: $DEV_ENDPOINT

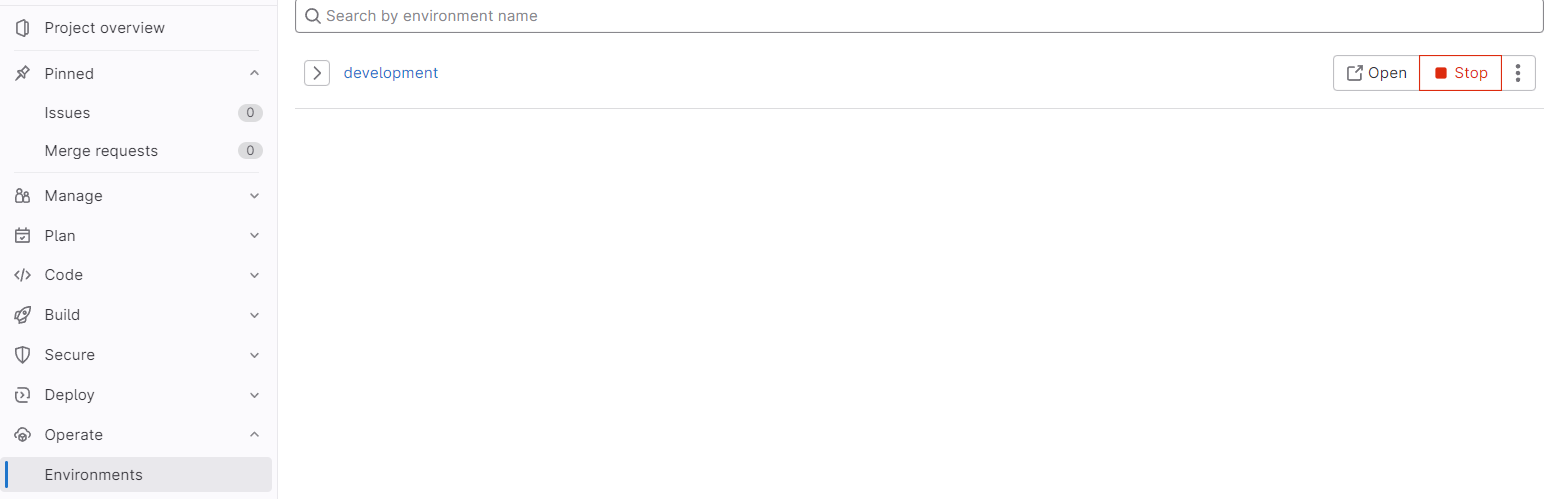

And we can click "Open" to get to url ($DEV_ENDPOINT) directly.

Complete Pipeline by Docker Command

  • Here we intentionally put IMAGE_NEW_TAG and IMAGE_OLD_TAG into variables in order to stop and remove the previous container and run our new container.

  • The IMAGE_LAUNCH_NAME is to be provided in --name argument when executing docker commnad (therefore we can stop the container accurately).

workflow:
  rules:
    - if: $CI_COMMIT_BRANCH != "main" && $CI_PIPELINE_SOURCE != "merge_request_event"
      when: never # i.e., don't except when if condition is met.
    - when: always

variables:
  IMAGE_NAME: $CI_REGISTRY_IMAGE
  IMAGE_NEW_TAG: "1.1.1"
  IMAGE_OLD_TAG: "1.1"
  DEV_SERVER_IP: ec2-43-200-179-107.ap-northeast-2.compute.amazonaws.com
  DEV_ENDPOINT: http://$DEV_SERVER_IP:3000
  IMAGE_LAUNCH_NAME: cicd_test

stages:
  - test
  - build
  - deploy

run_unit_tests:
  stage: test
  image: node:17-alpine3.14
  before_script:
    - cd app
    - npm install
  script:
    - npm test
  artifacts:
    when: always
    paths:
      - app/junit.xml
    reports:
      junit: app/junit.xml

build_and_push_image:
  image: docker
  services:
    - docker:dind
  stage: build
  before_script:
    - docker login -u $CI_REGISTRY_USER -p $CI_REGISTRY_PASSWORD $CI_REGISTRY
  script:
    - docker build -t $IMAGE_NAME:$IMAGE_NEW_TAG .
    - docker push $IMAGE_NAME:$IMAGE_NEW_TAG

deploy_to_dev:
  stage: deploy
  before_script:
    - "which ssh-agent || ( apt-get install -qq openssh-client )"
    - mkdir -p ~/.ssh
    - touch ~/.ssh/id_rsa
    - echo "$SSH_PRIVATE_KEY" | tr -d '\r' > ~/.ssh/id_rsa
    - chmod 600 ~/.ssh/id_rsa
    - echo -e "Host *\nStrictHostKeyChecking no\n" > ~/.ssh/config
    - eval "$(ssh-agent -s)"
    - ssh-add ~/.ssh/id_rsa

  script: # skip the checking of authenticity of host by -o
    - ssh ubuntu@$DEV_SERVER_IP \
      "
      docker stop $IMAGE_LAUNCH_NAME ||
      docker image rm -f $IMAGE_NAME:$IMAGE_OLD_TAG ||
      docker login -u $CI_REGISTRY_USER -p $CI_REGISTRY_PASSWORD $CI_REGISTRY &&
      docker run -d -p 3000:3000 --name $IMAGE_LAUNCH_NAME $IMAGE_NAME:$IMAGE_NEW_TAG
      "
  environment:
    name: development
    url: $DEV_ENDPOINT
Simplify Pipeline Script by Anchors

  • We note that the script in deploy_to_dev.before_script is reusable for other jobs that need ssh connection (like we need to ssh into different ec2 instances for pulling and deploying images).

  • The only value that is variable is the $SSH_PRIVATE_KEY, we extract out this as a parameter and write an ignored job:

    .ssh_config:
  variables:
    PRIVATE_KEY: to_be_overridden
  before_script: &create_dotssh_config
    - "which ssh-agent || ( apt-get install -qq openssh-client )"
    - mkdir -p ~/.ssh
    - touch ~/.ssh/id_rsa
    - echo "$PRIVATE_KEY" | tr -d '\r' > ~/.ssh/id_rsa
    - chmod 600 ~/.ssh/id_rsa
    - echo -e "Host *\nStrictHostKeyChecking no\n" > ~/.ssh/config
    - eval "$(ssh-agent -s)"
    - ssh-add ~/.ssh/id_rsa

    Here we anchor the reusable part by writing &create_dotssh_config next to the key name. We can think it as packing the array of script into a variable.

  • By the way, we can also anchor other fields like variables, script etc.

  • We will unpack the value by writing (same syntax as python)

    some_job:
  ...
  variables:
    PRIVATE_KEY: some_private_key
    ...
  before_script:
    - *create_dotssh_config

    We demonstrate a real use case in the next section.

Complete Pipeline by Docker-Compose Up
The docker-compose.yml

  • In docker-compose up we can inject variable by environment variable, we simply write ${VAR_NAME} to take VAR_NAME from environment variable.

    version: "3.3"
services:
  app:
    image: ${DC_IMAGE_NAME}:${DC_IMAGE_TAG}
    ports:
      - ${DC_APP_PORT}:3000

  • Later in the pipeline we will execute export VAR_NAME=$VAR_NAME after we ssh into the ec2 instance.

  • The docker-compose.yml file is available in local and in docker executor, however, it is not available in our ec2 instance.

  • We need to scp the file from docker executor into ec2, which is extremely easy because we have *create_dotssh_config in line 63 below.

  • It is now as simple as doing an scp file_path remote:destination_path.

The Complete Pipeline

  • By docker-compose up and down we can further remove the management of stopping, deleting and starting containers using the exact container name (for stopping) and image name (for deleting).

  • Note that we will apply anchor in line 63. We provide the required parameter in variables field.

1workflow:
2  rules:
3    - if: $CI_COMMIT_BRANCH != "main" && $CI_PIPELINE_SOURCE != "merge_request_event"
4      when: never # i.e., don't except when if condition is met.
5    - when: always
6
7.ssh_config:
8  variables:
9    PRIVATE_KEY: to_be_overridden
10  before_script: &create_dotssh_config
11    - "which ssh-agent || ( apt-get install -qq openssh-client )"
12    - mkdir -p ~/.ssh
13    - touch ~/.ssh/id_rsa
14    - echo "$PRIVATE_KEY" | tr -d '\r' > ~/.ssh/id_rsa
15    - chmod 600 ~/.ssh/id_rsa
16    - echo -e "Host *\nStrictHostKeyChecking no\n" > ~/.ssh/config
17    - eval "$(ssh-agent -s)"
18    - ssh-add ~/.ssh/id_rsa
19
20variables:
21  IMAGE_NAME: $CI_REGISTRY_IMAGE
22  IMAGE_TAG: "1.1.1"
23  DEV_SERVER_IP: ec2-43-200-179-107.ap-northeast-2.compute.amazonaws.com
24  DEV_ENDPOINT: http://ec2-43-200-179-107.ap-northeast-2.compute.amazonaws.com:3000
25
26stages:
27  - test
28  - build
29  - deploy
30
31run_unit_tests:
32  stage: test
33  image: node:17-alpine3.14
34  before_script:
35    - cd app
36    - npm install
37  script:
38    - npm test
39  artifacts:
40    when: always
41    paths:
42      - app/junit.xml
43    reports:
44      junit: app/junit.xml
45
46build_and_push_image:
47  image: docker
48  services:
49    - docker:dind
50  stage: build
51  before_script:
52    - docker login -u $CI_REGISTRY_USER -p $CI_REGISTRY_PASSWORD $CI_REGISTRY
53  script:
54    - docker build -t $IMAGE_NAME:$IMAGE_TAG .
55    - docker push $IMAGE_NAME:$IMAGE_TAG
56
57deploy_to_dev:
58  stage: deploy
59  variables:
60    PRIVATE_KEY: $SSH_PRIVATE_KEY
61  before_script:
62    - *create_dotssh_config
63  script: # skip the checking of authenticity of host by -o
64    - scp ./docker-compose.yaml ubuntu@$DEV_SERVER_IP:/home/ubuntu
65    - ssh ubuntu@$DEV_SERVER_IP \
66      "
67      export DC_IMAGE_NAME=$IMAGE_NAME &&
68      export DC_IMAGE_TAG=$IMAGE_TAG &&
69      export DC_APP_PORT=3000 &&
70      docker-compose -f docker-compose.yaml down &&
71      docker-compose -f docker-compose.yaml up -d
72      "
73  environment:
74    name: development
75    url: $DEV_ENDPOINT

Message in the final successful stage:

Running with gitlab-runner 16.1.0~beta.59.g83c66823 (83c66823)
  on blue-3.shared.runners-manager.gitlab.com/default zxwgkjAP, system ID: s_284de3abf026
  feature flags: FF_USE_IMPROVED_URL_MASKING:true
Preparing the "docker+machine" executor
00:18
Using Docker executor with image ruby:3.1 ...
Pulling docker image ruby:3.1 ...
Using docker image sha256:4c15cd7ed497ca89f07ce3c76397de8dc8837ad1ae775ed3723da91c045f8cf2 for ruby:3.1 with digest ruby@sha256:eaa279f11332531fe2569a86821c36337cdf620374c9b091088751d7870459fe ...
Preparing environment
00:05
Running on runner-zxwgkjap-project-46900231-concurrent-0 via runner-zxwgkjap-shared-1687454283-ac6dc2ae...
Getting source from Git repository
00:00
Fetching changes with git depth set to 20...
Initialized empty Git repository in /builds/machingclee/mynodeapp-cicd-project/.git/
Created fresh repository.
Checking out 8254fa01 as detached HEAD (ref is main)...
Skipping Git submodules setup
$ git remote set-url origin "${CI_REPOSITORY_URL}"
Downloading artifacts
00:02
Downloading artifacts for run_unit_tests (4524424940)...
Downloading artifacts from coordinator... ok        host=storage.googleapis.com id=4524424940 responseStatus=200 OK token=64_MqSLz
Executing "step_script" stage of the job script
00:09
Using docker image sha256:4c15cd7ed497ca89f07ce3c76397de8dc8837ad1ae775ed3723da91c045f8cf2 for ruby:3.1 with digest ruby@sha256:eaa279f11332531fe2569a86821c36337cdf620374c9b091088751d7870459fe ...
$ which ssh-agent || ( apt-get install -qq openssh-client )
/usr/bin/ssh-agent
$ mkdir -p ~/.ssh
$ touch ~/.ssh/id_rsa
$ echo "$PRIVATE_KEY" | tr -d '\r' > ~/.ssh/id_rsa
$ chmod 600 ~/.ssh/id_rsa
$ echo -e "Host *\nStrictHostKeyChecking no\n" > ~/.ssh/config
$ eval "$(ssh-agent -s)"
Agent pid 19
$ ssh-add ~/.ssh/id_rsa
Identity added: /root/.ssh/id_rsa (/root/.ssh/id_rsa)
$ scp ./docker-compose.yaml ubuntu@$DEV_SERVER_IP:/home/ubuntu
Warning: Permanently added 'ec2-43-200-179-107.ap-northeast-2.compute.amazonaws.com' (ED25519) to the list of known hosts.
$ ssh ubuntu@$DEV_SERVER_IP \ " export DC_IMAGE_NAME=$IMAGE_NAME && export DC_IMAGE_TAG=$IMAGE_NEW_TAG && export DC_APP_PORT=3000 && docker-compose -f docker-compose.yaml down && docker-compose -f docker-compose.yaml up -d "
 Container ubuntu-app-1  Stopping
 Container ubuntu-app-1  Stopping
 Container ubuntu-app-1  Stopped
 Container ubuntu-app-1  Removing
 Container ubuntu-app-1  Removed
 Network ubuntu_default  Removing
 Network ubuntu_default  Removed
 Network ubuntu_default  Creating
 Network ubuntu_default  Created
 Container ubuntu-app-1  Creating
 Container ubuntu-app-1  Created
 Container ubuntu-app-1  Starting
 Container ubuntu-app-1  Started
Cleaning up project directory and file based variables
00:00
Job succeeded
