January 13, 2025

Connection to RDS-Proxy Using Lambda Functions

aws

lambda

rds

rds-proxy

Security Groups

We create two security groups:

  • Lambda-SG
  • RDS-SG

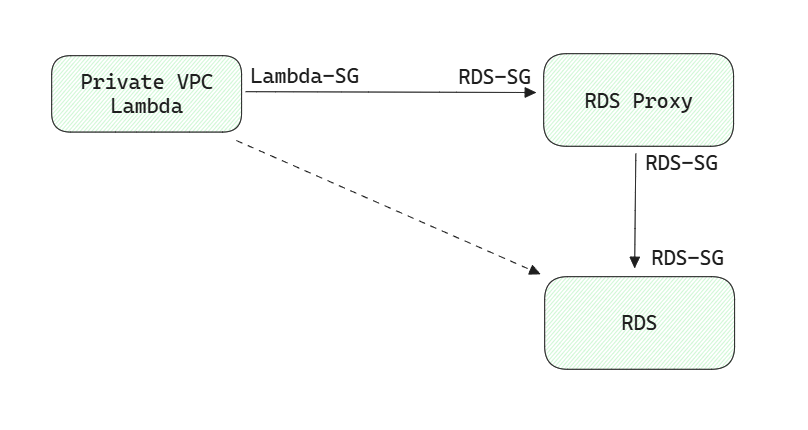

As in the diagram indicated:

  • The RDS-SG accpets inbound traffic from Lambda-SG.
  • RDS-SG again accepts inbound traffic from RDS-SG. The main challenge is to figure out the appropriate permissions for RDS-Proxy to connect to RDS and that for Lambda (inside of a VPC) to get access to the RDS service.

Connect RDS and RDS-Proxy From Lambda Functions

Permissions to Lambda for RDS and RDS-Proxy Connection
{
  "Effect": "Allow",
  "Action": "rds-db:connect",
  "Resource": "arn:aws:rds-db:ap-southeast-2:798404461798:dbuser:prx-0226dec8098d1321d/*"
},
{
  "Effect": "Allow",
  "Action": "rds:DescribeDBProxies",
  "Resource": "arn:aws:rds:ap-southeast-2:798404461798:db-proxy:prx-0226dec8098d1321d"
},

These two are all we need to connect to rds and rds-proxy.

  • Here 798404461798 is our AWS Account ID (viewable at the top right corner) and

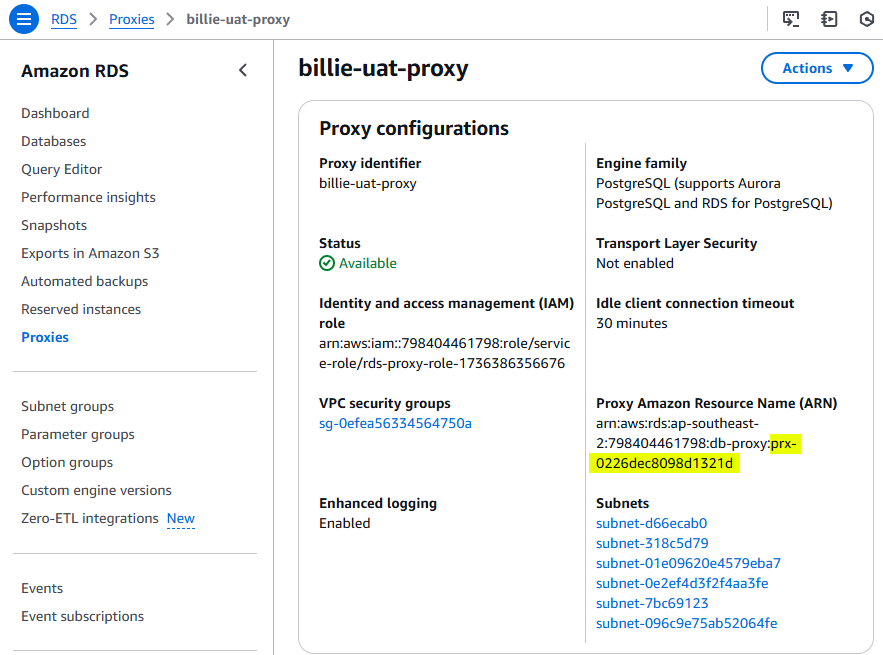

  • We can find our proxy-id here:

Permission to Lambda for VPC Assignment

The following

{
  "Effect": "Allow",
  "Action": [
    "ec2:CreateNetworkInterface",
    "ec2:DescribeNetworkInterfaces",
    "ec2:DeleteNetworkInterface"
  ],
  "Resource": "*"
}

allows a lambda function to be connected to a VPC network because it enables us to create Elastic Network Interface in order to assign security group to a lambda function.

More detail on Lambda Functions and VPC can be found in this article on architecture of private lambda functions.

RDS-Proxy

Methods to Connect RDS

RDS-Proxy can get access to our RDS instance in either way:

  • Get credential from secrets manager
  • Authenticate by IAM-Role We choose to use secret manager because we don't need to introduce aws-sdk (language specific) for new approach of connecting to our DB. That is, if we created a new proxy-endpoint, we simply use it as if it is a usual endpoint.

We need to remark that RDS-Proxy endpoint is a VPC-bounded resource. We are not able to connect to it outside of the VPC unless we create additional proxy mechanism, e.g., via EC2 instances.

Nevertheless enabling RDS-Proxy does not mean deleting our original RDS endpoint, we can use both as we please.

Permissions for RDS-Proxy

Edit the IAM-Role of the RDS-Proxy instance and add:

{
    "Sid": "GetSecretValue",
    "Action": [
        "secretsmanager:GetResourcePolicy",
        "secretsmanager:GetSecretValue",
        "secretsmanager:DescribeSecret",
        "secretsmanager:ListSecretVersionIds"
    ],
    "Effect": "Allow",
    "Resource": [
        "arn:aws:secretsmanager:ap-southeast-2:798404461798:secret:billie-uat-rds-proxy-corrected-nMKcow"
    ]
},

Here secret:billie-uat-rds-proxy-corrected-nMKcow is the secret id. If we change to use other secret for RDS-Proxy, then we need to adjust the permission here as well.

VPC Endpoints for RDS

Since RDS is one of the endpoint resources in AWS (other example is cloudwatch), accessing an endpoint is as simple as:

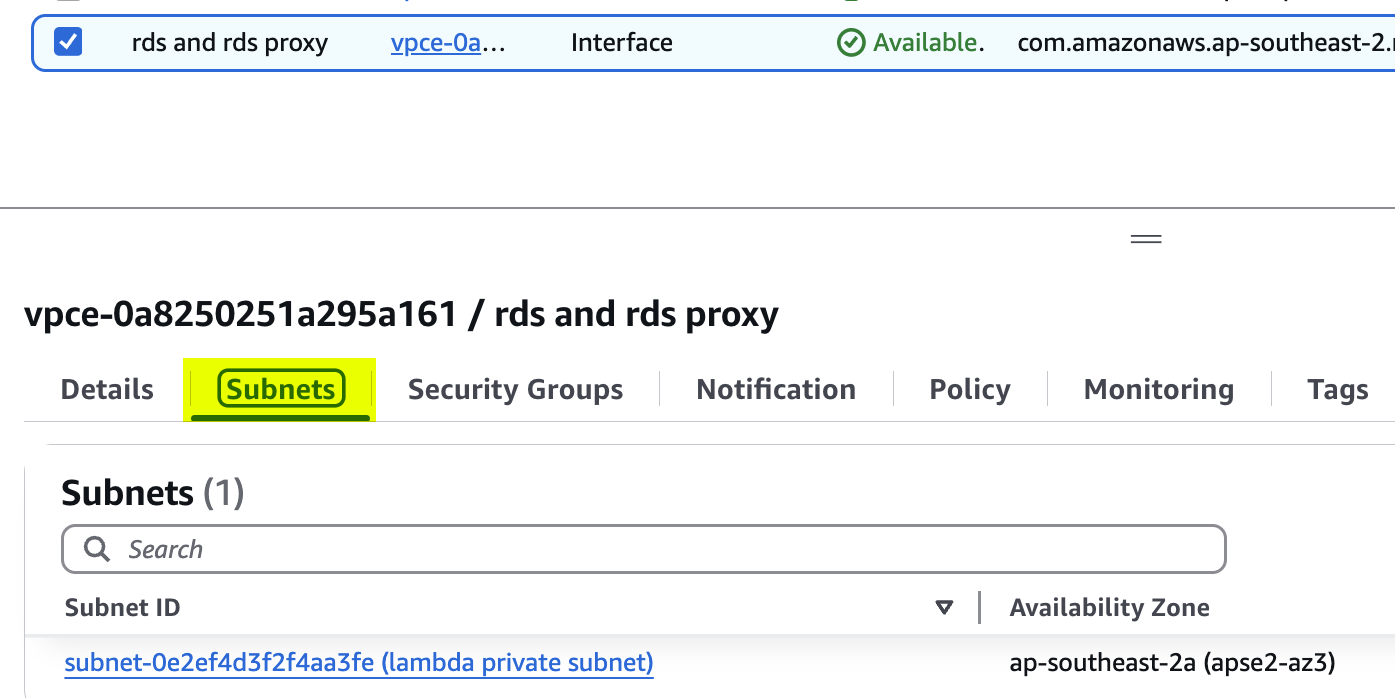

  1. Adding this endpoint to the private subnet of lambda functions

    and;

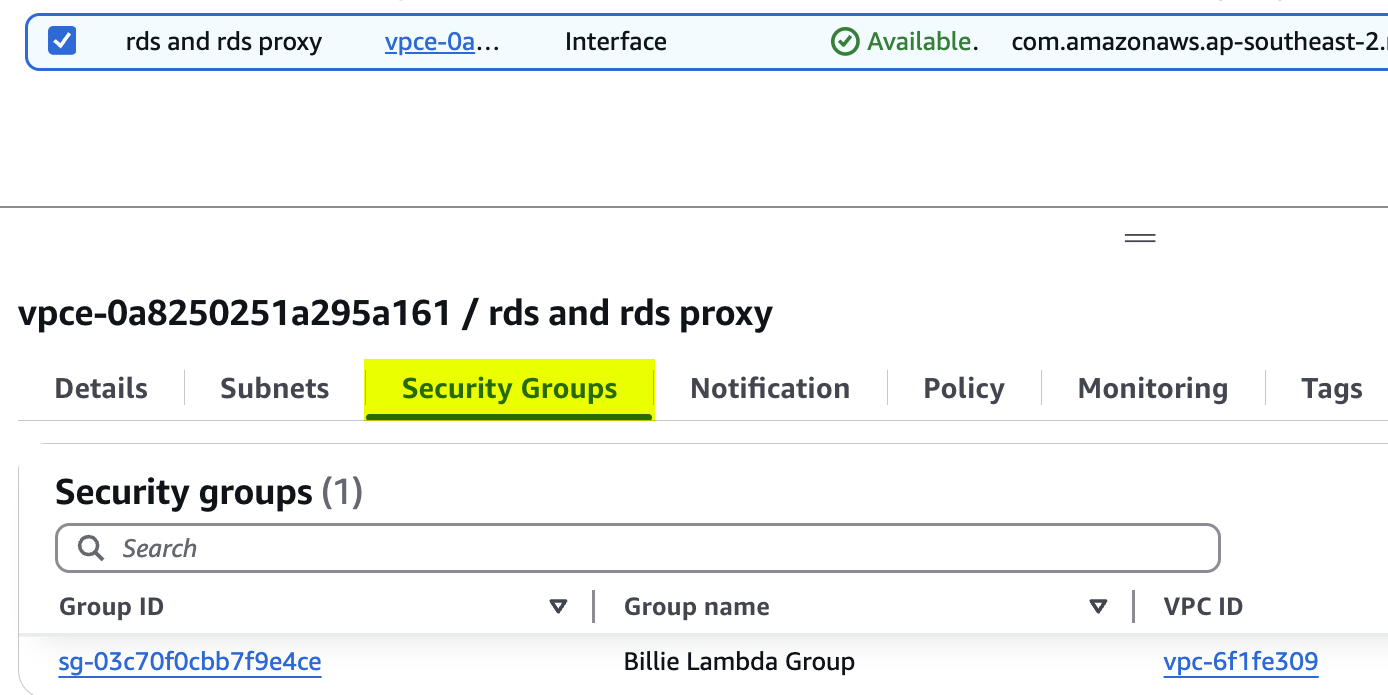

  2. Assigning a security group to that endpoint to identify which group of resources is available to use that endpoint

Connection to RDS-Proxy

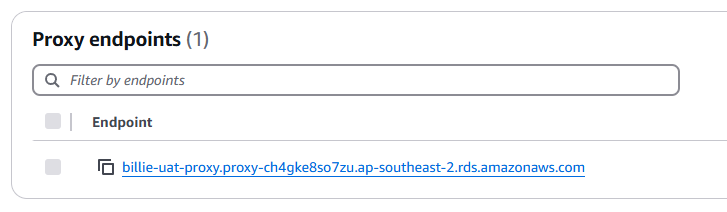

Finally, we simply replace the RDS endpoint by RDS-Proxy endpoint and we are done!
