Gradle Fundamentals: Modularization of Spring Boot Project and Dependencies Control

gradle

kotlin

springboot

Contents

Repository

Setp up Modules

Set Where to find Repositories

For every build.gradle.kts in each of modules we can add:

// build.gradle.kts

repositories {
    google()
    mavenCentral()
}
Transform Spring boot Project into a Module Called springboot-restapi
  1. Create a sprintboot-restapi folder
  2. Move src/, build.gradle.kts into that folder
  3. In settings.gradle.kts at the root level, write:
    rootProject.name = "course-catelog-service"

pluginManagement {
    repositories.gradlePluginPortal()
}

dependencyResolutionManagement{
    repositories.mavenCentral()
}

include("springboot-restapi")
    • Now gradle understands there is a build task in springboot-restapi.
    • Suppose that we have a custom build task named generate in springboot-restapi/build.gradle.kts, then we can execute
      gradle :springboot-restapi:generate
      to run that build task.
Add springBoot mainClass for Modularized Spring boot Application

Now to successfully run the task bootRun and the build bootJar we still need extra configruation.

// springboot-restapi/build.gradle.kts
...
sourceSets {
    test {
        java {
            setSrcDirs(listOf("src/test/integration", "src/test/unit"))
        }
    }
}

springBoot  {
    mainClass = "com.kotlinspring.CourseCatelogServiceApplicationKt"
}

Note the extra Kt as a suffix of our main application classname.

Create Another Module Called domain

  1. In root level let's create a directory named domain/

  2. In that folder let's create a file in

    domain/src/main/kotlin/com.<root-project-name>.domain/main.kt

  3. Also, create a build.gradle.kts at the same level of domain/src/ and write

    repositories {
    google()
    mavenCentral()
}

plugins {
    kotlin("jvm") version "1.9.24"
}

  4. Include this module in root's settings.gradle.kts

    rootProject.name = "course-catelog-service"

pluginManagement {
    repositories.gradlePluginPortal()
}

dependencyResolutionManagement{
    repositories.mavenCentral()
}

include("springboot-restapi")
include("domain")

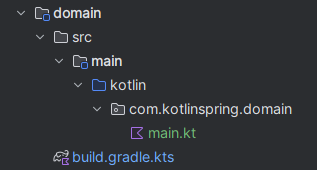

    Now our folder icons are not just a directory, we are done:

Include domain in the springboot-restapi (i.e., restapi depends on domain) and try to run bootRun and bootJar

Add the following in springboot-restapi/build.gradle.kts:

dependencies {
    implementation(project(":domain"))
    ...
}

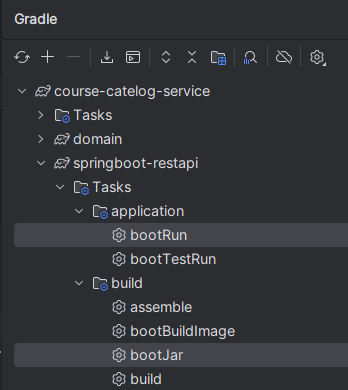

Now we are free to run these two gradle commands:

Try to Import and Unimport Other Modules to Check Dependencies Constraint

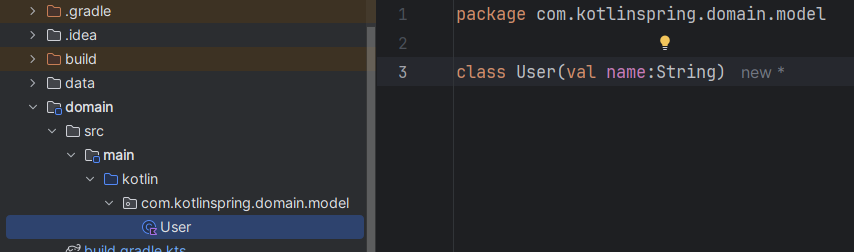

Let's experiment! Suppose that I have created a User class in domain.model:

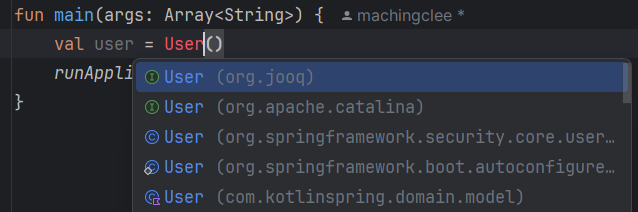

We can import User from domain.model!

Suppose that I remove the dependency as follows:

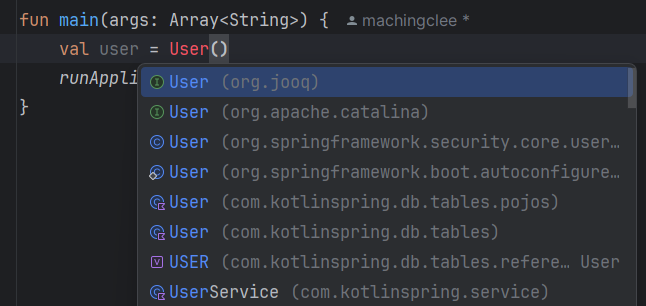

Look we cannot import User from domain.model any more:

Custom Gradle Plugin

Plugin Project Sturcture

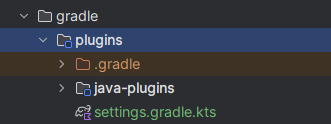

Let's create the following structure for adding plugins:

Gradle Config
Global settings.gradle.kts

Add the following in the global settings.gradle.kts

rootProject.name = "course-catelog-service"

pluginManagement {
    repositories.gradlePluginPortal()
    includeBuild("gradle/plugins")
}

dependencyResolutionManagement{
    repositories.mavenCentral()
}

include("springboot-restapi")
include("domain")
Local settings.gradle.kts in gradle/plugins/

Next create gradle/plugins/ and then gradle/plugins/settings.gradle.kts with

// gradle/plugins/settings.gradle.kts
dependencyResolutionManagement{
    repositories.gradlePluginPortal()
}

include("java-plugins")
build.gradle.kts

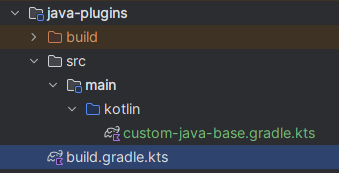

  1. We then aims at creating a module java-plugins with the following structure:

  2. As directory java-plugins is included as a (candidate of) module, we create gradle/plugins/java-plugins/, let's turn this java-plugins into a module by adding

    // gradle/plugins/java-plugins/build.gradle.kts
plugins{
    `kotlin-dsl`
}

  3. Let's add a file in this module:

    gradle/plugins/java-plugins/src/main/kotlin/custom-java-base.gradle.kts

    custom-java-base will be our new plugin name.

  4. Add the logic into this new plugin that we want to share across all modules:

    repositories {
    gradlePluginPortal()
    google()
    mavenCentral()
}

plugins{
    id("java-library")
}

java {
    toolchain {
        languageVersion = JavaLanguageVersion.of(21)
    }
}

  5. Finally, we import this plugin into our domain module:

    // domain/build.gradle.kts
plugins{
    id("custom-java-base")
}

More Simple way to Create Modules via IntelliJ

After solid understanding on how gradle works, let's investigate how intelliJ provides shortcuts for generating new modules:

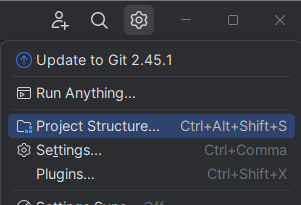

  1. Look at project structure:

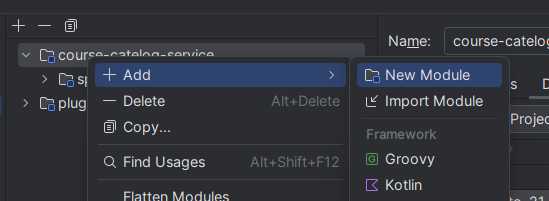

  2. New Module:

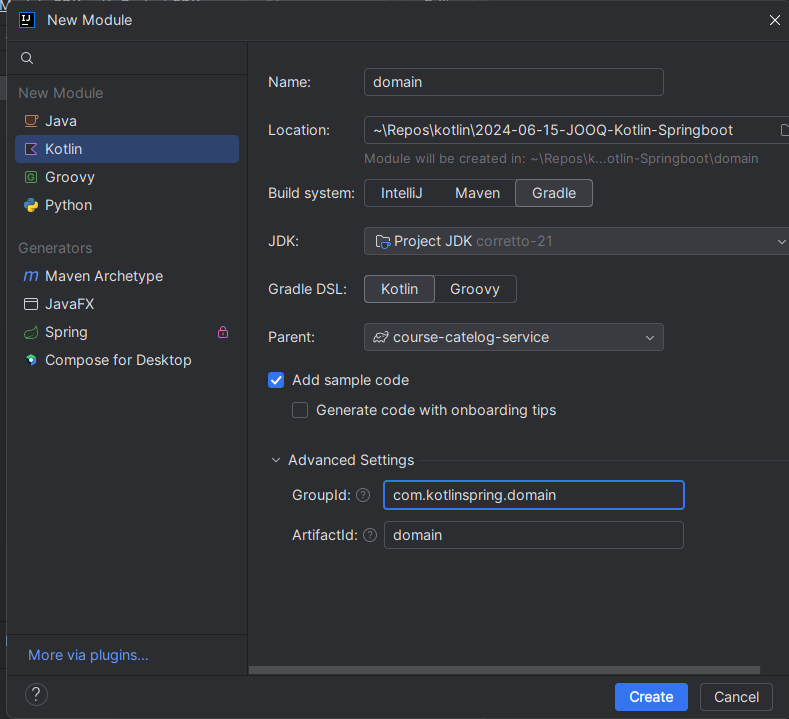

  3. Choose gradle with kotlin DSL, choose suitable groupId, and click create:

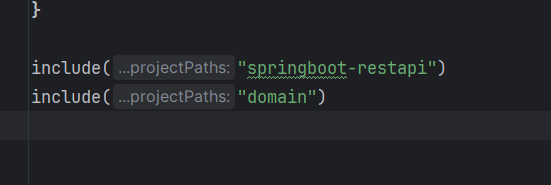

  4. Note that domain has been added automatically in settings.gradle.kts:

  5. Unforturnately we don't have dependency control UI among modules, we need to add

    dependencies {
    implementation(project(":module-name"))
    testImplementation(kotlin("test"))
}

    ourselves in build.gradle.kts.
