September 9, 2021

C++ Beginner Notes 02 - Shallow Copy, Deep Copy and Move Semantics

C++

Contents

Shallow Copy and Trouble

We first define a class of objects for which we will do a shallow copy:

class Shallow {
private:
	int* data;
public:
	void set_data(int d) {
		*data = d;
	};
	int  get_data() {
		return *data;
	};
	Shallow(int d);
	Shallow(const Shallow& source);
	~Shallow();
};

Shallow::Shallow(int d) {
	data = new int;
	*data = d;
	cout << "1-arg constructor called" << endl;
}
Shallow::Shallow(const Shallow& source) :
	data{ source.data }
{
	cout << "copy constructor called" << endl;
};
Shallow::~Shallow() {
	delete data;
	cout << "destructor called to free memory";
};

We will be doing a shallow copy using copy constructor above. The destructor defined above is legit, but then a problem will be raised when any instance of Shallow is out of scope of some function, say:

void display_object(Shallow  s) {
	// error still occurs even the following line is commented out:
	cout << s.get_data() << endl;
}

The reason is that our copy constructor just copy the address of the object's data just passed in. But when a destructor of a shallow copy is called, the original object will have data pointing to an invalid data, compiler will then throw an error.

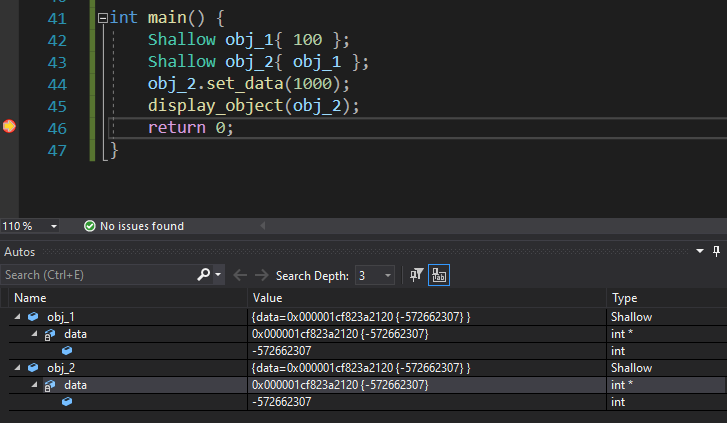

Let's simulate this problem below:

int main() {
	Shallow obj_1{ 100 };
	Shallow obj_2{ obj_1 };
	// since pointing to the same data (originally 100) in heap,
	// both obj_1.data and obj_2.data become 1000:
	obj_2.set_data(1000);
	// when obj_2 is out of scope, destructor is called:
	display_object(obj_2);
	// obj_1.data points to invalid data, error occurs and we fail to return status code 0:
	return 0;
}

Deep Copying Instead

Since pointing to the same allocated memory is a trouble. All data of any new instance of a class through copy constructor should point to the new allocated memory instead. This is easily adjustable by modifying the copy constructor as below:

Shallow::Shallow(const Shallow& source) :
	Shallow{ *source.data }
{
	cout << "copy constructor called" << endl;
};

In other words, we delegate our copy constructor to our 1-argument constructor which is designed originally to allocate new memory in heap.

Now with exactly the same code, our main can run faultlessly.

Further Discussion with l-value

As another observation:

int main() {
	int x{ 100 };
	// or int y = x;
	int y{ x };
	y = 1000;
	cout << x << ' ' << y << endl;
	return 0;
}

We can observe that the output is

100 1000

Therefore the copy constructor of int is indeed a deep copy (always allocate a new memory).

But then how to make a new variable y that really makes a reference to x? We will need a concept called l-value reference, which is done by calling

int main() {
	int x{ 100 };
	int& y = x;
	y = 1000;
	cout << x << ' ' << y << endl;
	return 0;
}

and this time the output is

1000 1000

The l-value concept is usually introduced before we witness the definition of function prototypes like int func(type &variable). Yes the & operator here indeed indicates we want a l-value variable to be passed in.

Move-Semantics

Use Case

The opposite of l-value is r-value and this kind of reference is indicated by &&. The concept of r-value becomes very useful when it comes to move-semantics. Loosely speaking the most easily understandable use cases are:

  • When a data is to be constructed and passed into an l-value. For example, we may assign a large object as a member of a class, and this object is not going to be reused anywhere else.
  • When we want to pass a large object into a function which is not going to be reused anywhere else.

The main problem to solve is

Creating an temp object and copying it for another object/function is inefficient.

We would like to implement a move contructor which can reduce the number of times calling the copy constructor. The move constructor usually accepts an r-value for initiallization.

There are two ways to construct r-value:

  • Return value of a function without assigning it to any l-value.
  • Object initialization without variable name.
Code Implementation of Move Constructor

We rename the Shallow class above to Data as we do not focus on shallow copy anymore. Now the whole implementation of the Data class is (we haved just added additionally one constrctor below and changed the logging in destructor):

#include <iostream>
using namespace std;

class Data {
private:
	int* data;
public:
	int  get_data() {
		return *data;
	};
	Data(int d);
	Data(const Data& source);
	Data(Data&& source);
	~Data();
};

Data::Data(int d) {
	data = new int;
	*data = d;
	cout << "1-arg constructor called" << endl;
}

Data::Data(const Data& source) :
	Data{ *source.data }
{
	cout << "copy constructor called" << endl;
};

Data::Data(Data&& source) {
	data = source.data;
	source.data = nullptr;
	cout << "move constructor called" << endl;
}

Data::~Data() {
	if (data != nullptr) {
		cout << "destructor called to free memory" << endl;
	}
	delete data;
};

void display_object(Data  s) {
	cout << "Shallow.data: " << s.get_data() << endl;
}

Data create_data() {
	Data new_shallow{ 100 };
	return new_shallow;
}

int main() {
	// This call the move constructor:
	display_object(create_data());

	// This does not:
	// display_object(Data{ 123 });

	// This does:
	// display_object(std::move(Data{ 123 }));
}

We can observe that the unreused (we assume this is the case) variable returned from create_data() does not trigger the copy constructor, for which the copy constructor is supposed to allocate new memory to store our temporary object.

Now the function call will be way more efficient if the object to pass into the function is very large.

References
