January 12, 2025

AWS Presigned URLs for File-Uploading

aws

Contents

Mechanism Explained

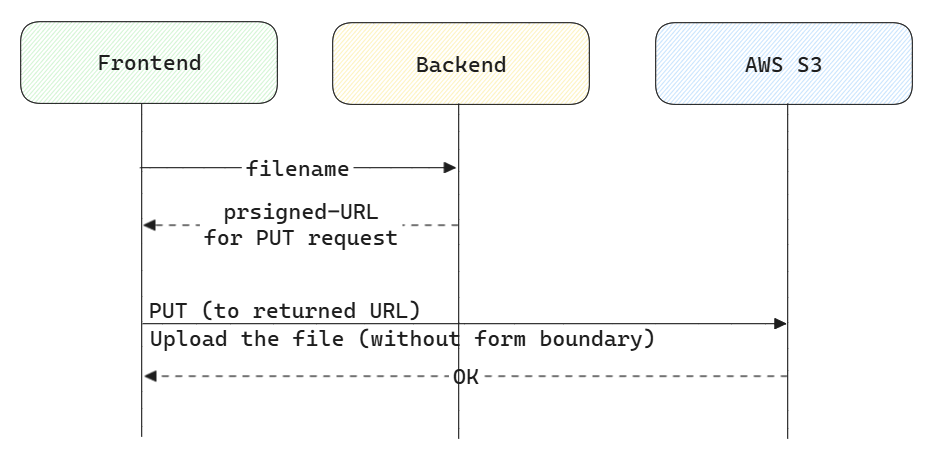

Sequence Diagram

Example

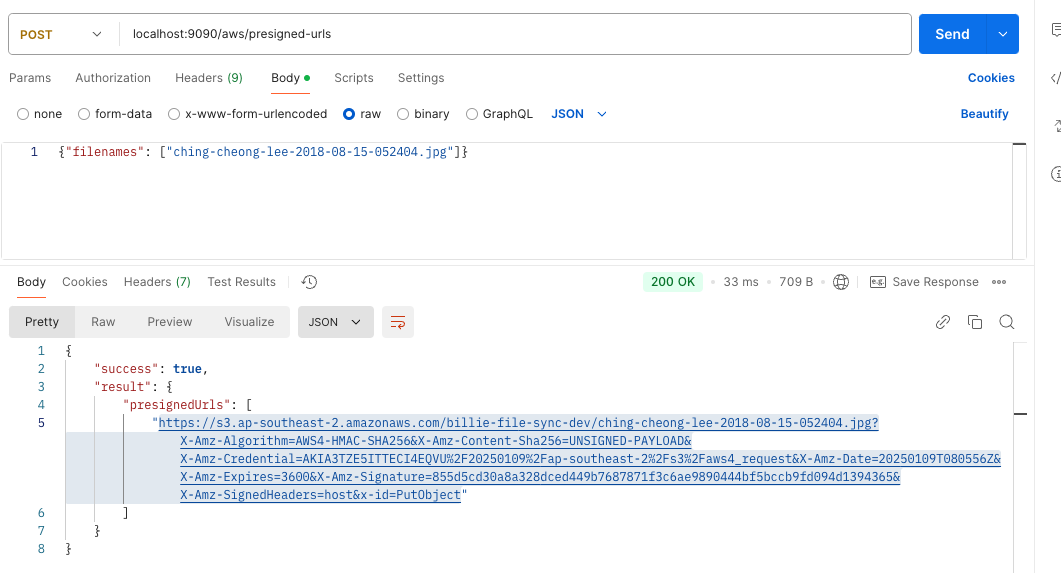

Create a prsigned url for file uploading

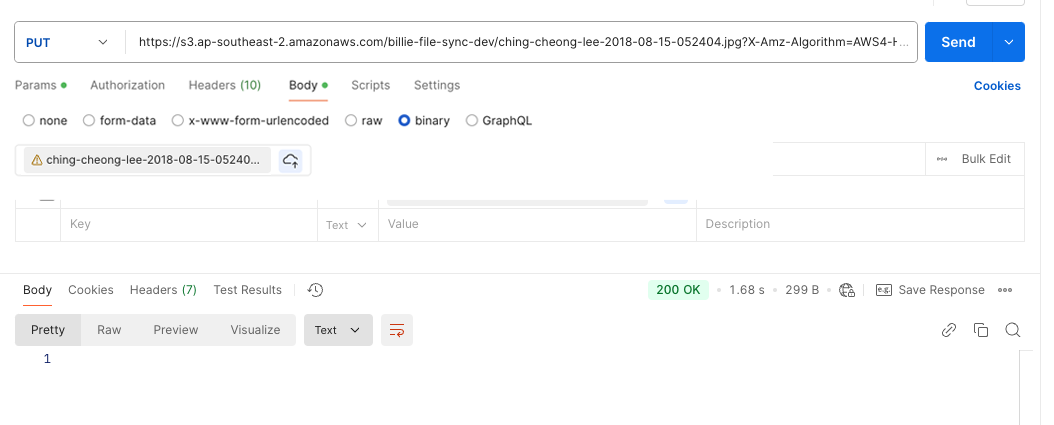

Upload the file using raw bytes

S3 Bucket

Bucket Policy

As usual if we wish to let everyone download the files in the bucket, we simply add:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "Statement1",
      "Effect": "Allow",
      "Principal": "*",
      "Action": "s3:GetObject",
      "Resource": "arn:aws:s3:::wb-admin-frontend/*"
    }
  ]
}
The CORS Problem

There is no CORS restriction to GET requests, but it does for PUT request. To successfully upload file to the S3 bucket we need to go to permissions > CORS (scroll down) and write:

[
  {
    "AllowedHeaders": [
        "*"
    ],
    "AllowedMethods": [
        "PUT",
        "GET"
    ],
    "AllowedOrigins": [
        "http://localhost:5173"
    ],
    "ExposeHeaders": [
        "ETag"
    ]
  }
]

Backend: createPresignedURL (props: { bucket:string, key: string })

// awsS3Util.ts

import { S3Client, PutObjectCommand } from "@aws-sdk/client-s3";
import { getSignedUrl } from "@aws-sdk/s3-request-presigner";
import { Request, Response } from "express";

type PresignedUrlParams = {
    bucket: string;
    key: string;
}

const createPresignedUrl = async (params: PresignedUrlParams): Promise<string> => {
    const region = process.env.BUCKET_REGION
    const client = new S3Client({
        region,
        endpoint: `https://s3.${region}.amazonaws.com`,
        forcePathStyle: true
    });

    const command = new PutObjectCommand({
        Bucket: params.bucket,
        Key: params.key
    });

    return await getSignedUrl(client, command, { expiresIn: 3600 });
};

export default {
    createPresignedUrl
}

We then create a controller to handle presigned-url request:

export default class AwsController {
    public static getPresignedURL = async (req: Request, res: Response): Promise<void> => {
        const { filenames } = req.body as { filenames: string[] }
        try {
            const bucket = process.env.FILE_SYNC_BUCKET || "";
            const presignedUrls = await Promise.all(filenames.map(filename => {
                return awsS3Util.createPresignedUrl({ bucket, key: filename })
            }))
            res.json({
                success: true,
                result: { presignedUrls }
            });
        } catch (error) {
            res.status(500).json({
                success: false,
                error: error instanceof Error ? error.message : 'Unknown error occurred'
            });
        }
    }
}

Frontend: Upload Raw Bytes to PresignedURL

React
// component to upload file:
export default () => {
    const [file, setFile] = useState(null);

    const handleFileChange = (event: ChangeEvent<HTMLInputElement>) => {
        const selectedFile = event.target.files?.[0];
        if (selectedFile) {
            setFile(selectedFile);
        }
    };

    const uploadFile = async () => {
        const uploadUrl = await getPresignedURL([file.name]); // make api call
        await uploadFileToS3(uploadUrl, file)
    }

    return (
        <>
            ...
            <input type="file" onChange={handleFileChange} />
        <>
    )
}

// util function:
const uploadFileToS3 = async (uploadUrl: string, file: File) => {
    const res = await fetch(uploadUrl, {
        method: "PUT",
        body: file,
        headers: {
            "Content-Type": "application/octet-stream",
        },
    })
    console.log("[uploadFileS3Native]", res)
    return res
}
React Native
export const uploadFileToS3 = async ({ uploadUrl, fileUri }: { uploadUrl: string; fileUri: string }) => {
    const file = await fetch(fileUri).then((res) => res.blob())
    const res = await fetch(uploadUrl, {
        method: "PUT",
        body: file,
        headers: {
            "Content-Type": "application/octet-stream",
        },
    })
    return res
}
