AWS Websocket-API 2: Complete Integration of React and Spring Boot using Websocket-API from API-Gateway

web-socket

Contents

Set up Websocket API from API Gateway

We have a quick guide on how to use the websocket api here:

However, raw websocket api is highly unreliable, especially without socket.io we need robust mechanism to handle socket reconnection and retry on error. Luckily there is already a popular library:

npm package: reconnecting-websocket

Let's

yarn add reconnecting-websocket
Set up Ping Route

We need to send data to websocket api regularly on a 9-minutes basis as any idle connection can only be kept for at most 10 minutes.

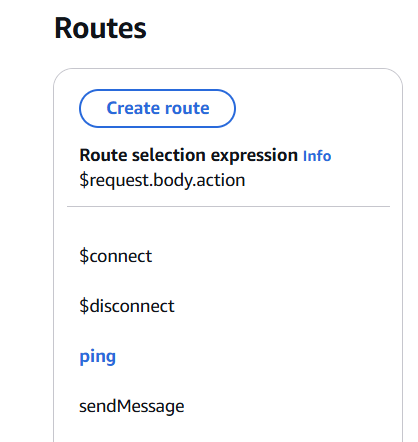

For that, we define an endpoint to send dummy data:

the dummy data will be

const pingMessage = JSON.stringify({
  action: "ping",
  content: "ping",
});

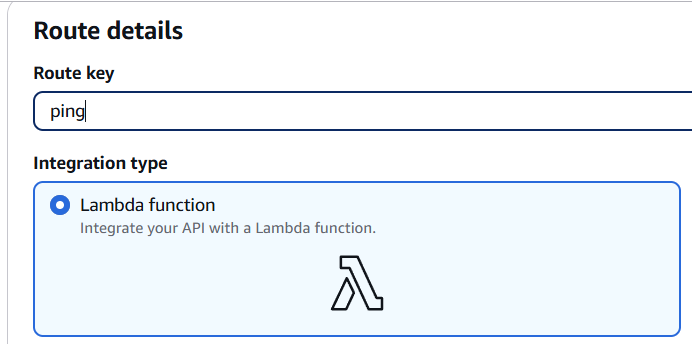

and it will be processed by our lambda function (configured when we create that route):

whereas the lambda function is as simple as:

export const handler = async (event) => {
  const response = {
    statusCode: 200,
    body: "pong",
  };
  return response;
};
Set up Route and functions to save and remove connectionId of websocket
$connect

In the following we delegate the persistence of connectionId to our own backend:

// lambda function for connection

export const handler = async (event) => {
  const connectionId = event.requestContext.connectionId;
  const userId = event.queryStringParameters.userId;
  const platform = event.queryStringParameters.platform;
  await insert(userId, connectionId, platform);
  return { statusCode: 200, body: "Connected." };
};

const insert = async (userId, connectionId, platform) => {
  const url = "https://my-own-domain:8080/gateway-websocket/connect";
  await fetch(url, {
    method: "POST",
    headers: {
      "Content-Type": "application/json",
    },
    body: JSON.stringify({
      userId: userId,
      connectionId: connectionId,
      platform: platform,
    }),
  });
};

Note that we can provide queryStringParameters when we make a websocket connection to the endpoint:

const url = `${webSocketURL}?userId=${userId}&platform=${platform}`;
// new WebSocket(url)
new ReconnectingWebSocket(url);

Here ReconnectingWebSocket is an enhanced version of Websocket that will be introduced soon in the upcoming section.

$disconnect

Again we delegate the disconnection (removal of connectionId from our database) to our own domain:

// lambda function for disconnection

export const handler = async (event) => {
  const connectionId = event.requestContext.connectionId;
  await deleteConnection(connectionId);
  return { statusCode: 200, body: "disConnected." };
};

const deleteConnection = async (connectionId) => {
  try {
    const response = await fetch(
      `https://my-own-domain:8080/gateway-websocket/disconnect/${connectionId}`,
      {
        method: "DELETE",
        headers: {
          "Content-Type": "application/json",
        },
      }
    );

    if (!response.ok) {
      throw new Error(`HTTP error! status: ${response.status}`);
    }

    const data = await response.json();
    console.log(data);
  } catch (error) {
    console.error("Error:", error);
  }
};

Receive Data from Frontend (React)

Define a custom hook to initiate websocket connection
1import ReconnectingWebSocket from "reconnecting-websocket"
2
3const useAWSGatewaySocket = (newCallbacks: { callback: (data: AllWSResponses) => void }[]) => {
4    const webSocketURL = process.env.VITE_SOCKET_URL
5    const callbackDataRef = useRef(newCallbacks)
6    const userId = useAppSelector((s) => s.auth.userId)
7    const socketRef = useRef<ReconnectingWebSocket | null>(null)
8    const dispatch = useAppDispatch()
9    const setChatSocketConnectionStatus = (on: boolean, socketId: string) => {
10        dispatch(chatSlice.actions.updateChatSocket({ on, socketId }))
11    }
12    const heartbeatInterval = useRef<ReturnType<typeof setInterval> | null>(null)
13    const HEARTBEAT_INTERVAL = 540000 // 9 minutes in milliseconds
14
15    const getSocketConnection = async (userId: string) => {
16        try {
17            if (!userId) {
18                return
19            }
20            if (socketRef.current) {
21                return
22            }
23            const rws = new ReconnectingWebSocket(`${webSocketURL}?userId=${userId}&platform=pc`)
24            socketRef.current = rws
25
26            const pingMessage = JSON.stringify({
27                action: "ping",
28                content: "ping",
29            })
30
31            socketRef.current.onerror = (e) => {
32                dispatch(appSlice.actions.setIsConnected(false))
33            }
34
35            socketRef.current.onopen = (e) => {
36                console.log("websocket connected")
37                dispatch(appSlice.actions.setIsConnected(true))
38                if (heartbeatInterval.current) {
39                    clearInterval(heartbeatInterval.current)
40                }
41                heartbeatInterval.current = setInterval(() => {
42                    if (rws.readyState === WebSocket.OPEN) {
43                        rws.send(pingMessage)
44                        console.log("Heartbeat sent")
45                    }
46                }, HEARTBEAT_INTERVAL)
47            }
48
49            socketRef.current.addEventListener("message", (e: MessageEvent<string>) => {
50                // the content in callbackDataRef is ever-changing,
51                // based on the state change passing into the useAWSGatewaySocket hook.
52                // we use useEffect to update the content in callbackDataRef
53                try {
54                    const parsedData = JSON.parse(e?.data || "{}") as Payload
55                    callbackDataRef.current.forEach(({ callback }) => {
56                        callback(parsedData)
57                    })
58                } catch (err) {
59                    console.error("websocket incoming event parsing error", err, e)
60                }
61            })
62        } catch (err) {
63            socketRef.current = null
64            __DEV__ && msgUtil.tmpError(JSON.stringify(err))
65        }
66    }
67
68    // only disconnect when the component is unmounted
69    useEffect(() => {
70        console.log("userId changed", userId)
71        if (userId) {
72            getSocketConnection(userId)
73        }
74        if (!userId) {
75            socketRef.current?.close()
76            socketRef.current = null
77        }
78    }, [userId])
79
80    useEffect(() => {
81        callbackDataRef.current = newCallbacks
82    }, [newCallbacks])
83
84    return { socketRef }
Listeners for incoming socket messages

Note that useAWSGatewaySocket accepts parameter: (newCallbacks: { callback: (data: Payload) => void }[]), we can register the listeners as follow:

const someState = ...
useAWSGatewaySocket([
    {
        callback: (payload) => {
            if (payload.type === SomeKey1) {
                // do something to payload.data
            }
        },
    },
    {
        callback: (payload) => {
            if (payload.type === SomeKey2) {
                // do something to payload.data
            }
        },
    },
    {
        callback: (payload) => {
            if (payload.type === SomeKey2) {
                // this will update the listener when someState changed
                if (someState === "Something") {
                    // do something to payload.data
                }
            }
        },
    }
])

  • We need to agree the type definition of payload.data with backend developers.

  • Note that by this approach we didn't pass a closure to socketRef.current.addEventListener, any state change will directly change the listeners to handle socket messages.

  • Therefore our application can behaviour dynamically with different app states.

Send Data from Backend (Kotlin)

There are plenty of examples in nodejs, let's study an example in Kotlin.

Dependencies
// build.gradle

dependencies {
  implementation(platform("aws.sdk.kotlin:bom:1.0.48"))
  implementation("aws.sdk.kotlin:apigatewaymanagementapi")
  implementation("aws.sdk.kotlin:aws-core")
  implementation("aws.smithy.kotlin:http-client-engine-okhttp4:1.3.30")
  implementation("org.jetbrains.kotlinx:kotlinx-coroutines-core:1.7.3")
  implementation("org.jetbrains.kotlinx:kotlinx-coroutines-jdk8:1.7.3")
  ...
}
Bean for ApiGatewayManagementClient
import aws.sdk.kotlin.services.apigatewaymanagementapi.ApiGatewayManagementClient
import aws.smithy.kotlin.runtime.net.url.Url
import org.springframework.beans.factory.annotation.Value
import org.springframework.context.annotation.Bean
import org.springframework.context.annotation.Configuration
import aws.smithy.kotlin.runtime.http.engine.okhttp4.OkHttp4Engine

@Configuration
class ApiGatewayManagementApiClientConfig(
    @Value("\${socket.endpoint}") private val socketEndpoint: String,
    @Value("\${socket.aws-region}") private val awsRegion: String,
) {
    @Bean
    fun createClient(): ApiGatewayManagementClient {
        return ApiGatewayManagementClient {
            this.endpointUrl = Url.parse(socketEndpoint)
            this.region = awsRegion
            this.httpClient = OkHttp4Engine()
        }
    }
}
WebsocketNotificationService
data class SocketMessage(
    val connectionId: String,
    val payload: Payload
) {
  data class Payload(
    val type: String,
    val data: SomeType
  )
}

@Service
class WebsocketNotificationService(
    private val apiGatewayClient: ApiGatewayManagementClient,
) {
    private val logger = KotlinLogging.logger {}
    private val gson = Gson()

    suspend fun sendMessageToConnection(socketMessage: SocketMessage) {
        val (connectionId, payload) = socketMessage
        val request = PostToConnectionRequest {
            this.connectionId = connectionId
            this.data = gson.toJson(payload).toByteArray()
        }
        apiGatewayClient.postToConnection(request)
    }
}

Back to highlighted line 54 in Define a custom hook to initiate websocket connection section we have

type Payload = { type: string; data: any };
const parsedData = JSON.parse(e?.data || "{}") as Payload;

This e?.data is exactly (if exists) the json string of Payload object from kotlin side.
