September 21, 2024

SSE, Coroutine and Channel to Notify Frontend for Stripe Events in Spring Boot and Kotlin

kotlin

springboot

Contents

SSE via WebFlux in the Past

We have a simple illustration of SSE using spring boot via Java in

Moreover, we stick everything with native Kotlin nature using coroutines.

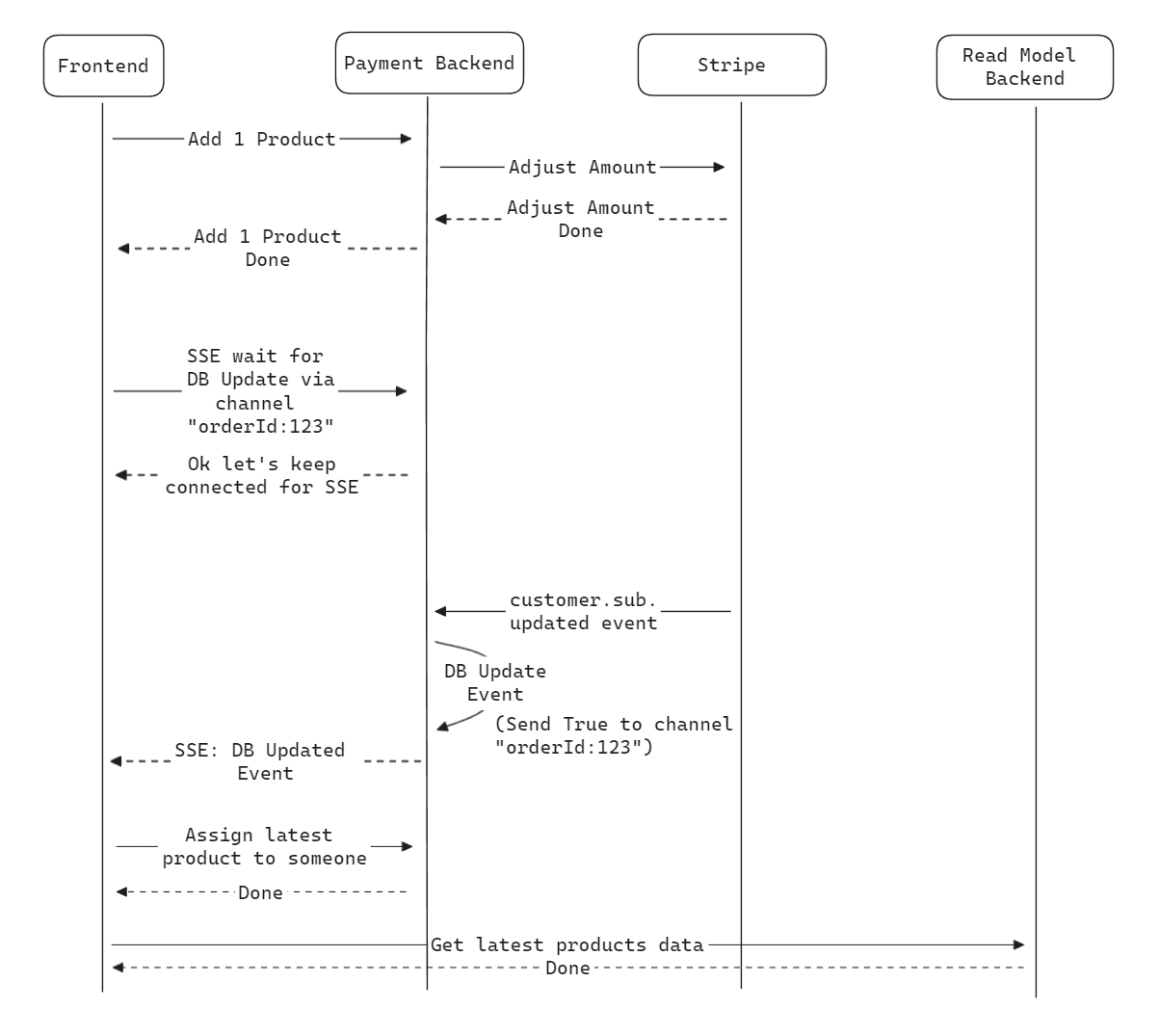

Solution Architecture: Sequence Diagram

In the sequel we plan to achieve the following:

  1. We add one product in stripe's customer subscription

  2. Once the request is finished, we send a GET request for SSE connection

  3. The SSE-get request handler responses an header to ask the frontend to keep connection, meanwhile, it launches a coroutine in which a channel (defined below) is created with channel identifier: orderId (for each subscription update we have a self-managed table recording all orders), and we suspend the coroutine by a channel.receive() method.

  4. The thread pool shared with Dispatchers.IO will resume the task once channel.receive() gets resolved.

  5. Once Stripe sends a customer.subscription.updated event to our payment backend, we update the database, and dispatch an OrderCompletedEvent in the system. One of the EventHandler's will send success true via the channel associated with orderId. When this Event fails to happen, the channel will be closed due to the default timeout.

  6. Finally we close the scope lauching the channel to avoid memory leakage.

Before we dive into it, let's build a machinery:

Channel

We will use the following abstraction:

@Component
class SuccessResponseChannelManager<T> {
    private val channels = ConcurrentHashMap<String, Channel<T>>()
    private val mutex = Mutex()

    suspend fun createChannel(id: String): Channel<T> = mutex.withLock {
        channels.getOrPut(id) { Channel() }
    }

    suspend fun getResult(id: String): T {
        val channel = channels[id] ?: throw IllegalArgumentException("No channel found for id: $id")
        val result = channel.receive()
        closeChannel(id)
        return result
    }

    suspend fun sendResult(id: String, result: T) {
        val channel = channels[id]
        channel?.send(result)
    }

    private suspend fun closeChannel(id: String) = mutex.withLock {
        channels.remove(id)?.close()
    }
}

We start off from a simple illustrative example. Later we will modify it into the one we use in the sequence diagram:

Simple Illustration First

Frontend with EventSourcePolyfill
const evtSource = new EventSourcePolyfill(
  "http://localhost:8081/order/sse-get-stripe-event-notification",
  { headers: { Authorization: "Bearer " + authToken } }
);
evtSource.addEventListener("SomeEvent", (event) => {
  console.log("eventevent", event);
});
  • We use EventSourcePolyfill because the native API EventSource in the browser does not support setting custom headers.
Backend Simply Steaming 1 to 100

Next in the backend we use a blocking way to deliver the request and let a non-blocking coroutine-block handles the SSE Task:

@GetMapping("/sse-get-stripe-event-notification", produces = [MediaType.TEXT_EVENT_STREAM_VALUE])
fun getOrderNotificationViaChannel(): SseEmitter {
    println("Hint SSE Rroute")
    val emitter = SseEmitter(Long.MAX_VALUE)
    emitter.onCompletion { println("SSE completed") }
    emitter.onTimeout { println("SSE timed out") }
    emitter.onError { e -> println("SSE error: ${e.message}") }

    CoroutineScope(Dispatchers.IO).launch {
        repeat(100) { index ->
            println("SSE $index")
            val eventData = SseEmitter.event()
                .name("SomeEvent")
                .data(index)
                .id(index.toString())
            emitter.send(eventData)
            delay(2000)
        }
        emitter.complete()
    }
    return emitter
}

  • The emitter is returned and the coroutine is launched at the same time. The main thread delivering the request to handler is released

  • The async task is delegated to the thread-pool allocated to Dispatchers.IO

  • Note that in nodejs (see this post) we need to add

    res.writeHead(200, {
  "Content-Type": "text/event-stream",
  Connection: "keep-alive",
  "Cache-Control": "no-cache",
});

    in the response header, these will be handled by Spring Boot when we return an SseEmitter instance.

Event in Frontend

In frontend you will see something like (forgive me I didn't record the result in screenshot):

event: { id: "1", type: "SomeEvent", data: <JSON.stringified data> }

Complete Example

Frontend

Based on the result in the previous section, we define a helper hook

export default <EventDataType extends { success: boolean }>() => {
    const authToken = useAppSelector(s => s.auth.clientAccessToken);
    const eventSource = useRef<EventSourcePolyfill | null>(null);

    const subscribe = (props: {
        sseEventURL: string,
        eventName: string
    }): Promise<{ success: boolean, result?: EventDataType }> => {
        const { eventName, sseEventURL } = props;
        return new Promise((resolve, _) => {
            try {
                const evtSource = new EventSourcePolyfill(
                    sseEventURL,
                    { headers: { "Authorization": "Bearer " + authToken } }
                );
                eventSource.current = evtSource;
                eventSource.current.addEventListener(eventName, async (event) => {
                    const data = JSON.parse((event as any).data as any) as EventDataType
                    eventSource.current = null;
                    resolve({ success: true, result: data });
                })
            } catch (err) {
                eventSource.current = null;
                resolve({ success: false });
            }
        })
    }

    return { subscribe }
}

It is a simple wrapper to hide the detail, next inside of our component we define:

const { subscribe } = useSSE();

const addAndAssign = async () => {
  PurchaseSeatAlertDialog.close();
  const { orderId } = await addTeamplan(1); // remark 1

  const { success } = await subscribe({
    // remark 2.
    sseEventURL: apiRoutes.GET_ORDER_SUCCESS_SSE(orderId),
    eventName: "DatabaseUpdated",
  });
  if (success) {
    // remark 3.
    await dispatch(
      SeatThunkAction.assignTeamPlan({ targetUserEmails: [userEmail] })
    ).unwrap();
    dispatch(SeatThunkAction.getSeatsFromDB());
  }
};

Remark 1.

  • Teamplan is a stripe product

  • orderId is our self-managed database record id

Remark 2.

  • Waiting for Stripe event and waiting for database update to be completed

Remark 3.

  • Once succeeded, we fetch request to change the database (which is only valid when database is synced with Stripe's event, otherwise we get an exception of not-enough resource for assignment)

  • Finally we fetch finalized result

Backend
The Request Handler
    // here what apiRoutes.GET_ORDER_SUCCESS_SSE(orderId) above resolved into:
    @GetMapping("/sse-get-stripe-event-notification/{orderId}", produces = [MediaType.TEXT_EVENT_STREAM_VALUE])
    fun getOrderSuccessNotificationViaChannel(@PathVariable("orderId") orderId: String): SseEmitter {
        val emitter = SseEmitter(Long.MAX_VALUE)
        emitter.onCompletion { println("SSE completed") }
        emitter.onTimeout { println("SSE timed out") }
        emitter.onError { e -> println("SSE error: ${e.message}") }
        val scope = CoroutineScope(Dispatchers.IO)
        scope.launch {
            try {
                logger.info { "Listening for orderSuccess response" }
                successResponseChannelManager.createChannel(orderId)
                val result = successResponseChannelManager.getResult(orderId)
                val eventData = SseEmitter.event()
                    .name(SSEEvent.DATABASE_UPDATED.code)
                    .data(DatabaseUpdate(result))
                    .id("1")
                emitter.send(eventData)
                emitter.complete()
            } finally {
                scope.cancel()
            }
        }
        return emitter
    }
The Event Handler

Since all database changes are governed by EventHandler's (in a Domain Driven Design methodology), adding new functionality is as simple as adding a new EventHandler:

@EventHandlerLogging
@Component
class OrderEventHandler(private val ...dependencies) {
    @EventListener
    fun on(event: OrderSucceededEvent) {
        val order = stripeorderDao.findById(event.orderId) ?: throw Exception("Order cannot be null")
        order.status = Status.SUCCEEDED
        order.succeededat = event.succeededAt
        stripeorderDao.update(order)
    }

    @EventListener
    fun sendSuccessResultToChannelOn(event: OrderSucceededEvent) = mono {
        val (orderId, succeededAt) = event
        successResponseChannelManager.sendResult(orderId.toString(), true)
    }
    ...
}
