March 20, 2023

Install Opencv and Libtorch for CMake Project

C++

deep-learning

Windows

OpenCV
  • In the official guide we can download the pre-built library, for example, we choose 4.6.0 and download the exe file

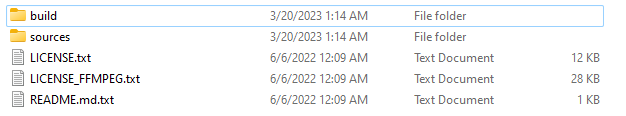

    By running this .exe file we can decompress and extract files into a single folder that follows this structure:

    As a routine I will save all libraries like opencv, libtorch and boost, etc, into a folder called C++Library. These libraries will be shared among different projects.

  • Next in the root level CMakelists.txt we include

    set(CMAKE_CXX_STANDARD 14)
    set(CPACK_PROJECT_NAME ${PROJECT_NAME})
    set(CPACK_PROJECT_VERSION ${PROJECT_VERSION})
    set(OpenCV_DIR "C:\\Users\\user\\Repos\\C++Libraries\\opencv\\build\\x64\\vc16")
    find_package(OpenCV REQUIRED)
    message(STATUS "OpenCV_INCLUDE_DIRS = ${OpenCV_INCLUDE_DIRS}")
    message(STATUS "OpenCV_LIBS = ${OpenCV_LIBS}")

    Change the path for OpenCV_DIR when needed.

  • Then we can use

    target_link_libraries(some_target PUBLIC ... ${OpenCV_LIBS} ...)

    to link the library when the project needs it.

libtorch
  • We can download the libtorch pre-built library from official pytorch website. The structure is like this:

  • In the root level CMakeLists.txt we include

    set(CMAKE_PREFIX_PATH "C:\\Users\\user\\Repos\\C++Libraries\\libtorch")
    find_package(Torch REQUIRED)
    set(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} ${TORCH_CXX_FLAGS}")
    if (MSVC)
      message("copying dll files")
      file(GLOB TORCH_DLLS "${TORCH_INSTALL_PREFIX}/lib/*.dll")
      add_custom_command(TARGET EyeCatching
                        POST_BUILD
                        COMMAND ${CMAKE_COMMAND} -E copy_if_different
                        ${TORCH_DLLS}
                        $<TARGET_FILE_DIR:EyeCatching>)
    endif (MSVC)
  • Then we can link the library by

    target_link_libraries(some_target PUBLIC ... ${TORCH_LIBRARIES} ...)

Mac

OpenCV_

We install opencv directly by homebrew:

brew install opencv

Then the pre-built library can be found in /opt/homebrew/Cellar/opencv/. It remains to link it in our cmake project.

The cmake instruction remains the same as windows, in my case my path to the libary is /opt/homebrew/Cellar/opencv/4.7.0_1.

libtorch_

We can still download pre-built libtorch library in official pytorch website. The cmake instruction remains the same as windows.
