PlantUML for EventSourcing and an GUI-application (for Editing)

1.Install VSCode Plugin and PUML Definitions
- 1.1.VSCode Plugin
- 1.2.The Visualized Result
2.Custom Definition of Objects in PlantUML and Examples in DDD
- 2.1.lib_eventstorming.puml, a Modularized File
- 2.2.timetable.puml
  - 2.2.1.The Diagram Result
  - 2.2.2.The Code Implementation
3.Some Useful Reposition Trick
- 3.1.Group Together
- 3.2.Align Vertically
4.Generate PDF File
5.GUI Application
- 5.1.Pladitor
- 5.2.!include failed, now we use !includeurl
6.References

August 17, 2025

Puml

System-Design

1.Install VSCode Plugin and PUML Definitions
- 1.1.VSCode Plugin
- 1.2.The Visualized Result
2.Custom Definition of Objects in PlantUML and Examples in DDD
- 2.1.lib_eventstorming.puml, a Modularized File
- 2.2.timetable.puml
  - 2.2.1.The Diagram Result
  - 2.2.2.The Code Implementation
3.Some Useful Reposition Trick
- 3.1.Group Together
- 3.2.Align Vertically
4.Generate PDF File
5.GUI Application
- 5.1.Pladitor
- 5.2.!include failed, now we use !includeurl
6.References

1. Install VSCode Plugin and PUML Definitions

1.1. VSCode Plugin

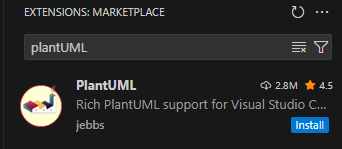

Install the following plugin in VSCode

1.2. The Visualized Result

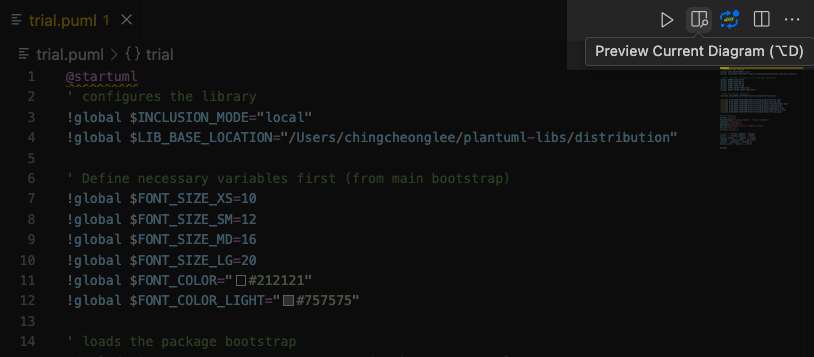

Now we make use of the plugin we just installed in vscode to preview the puml file:

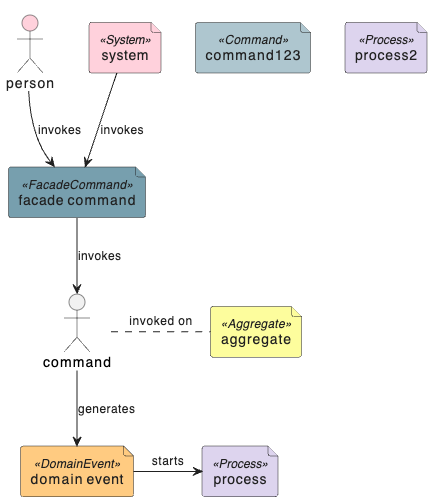

We get the live-preview visualized from the PlantUML definitions:

2. Custom Definition of Objects in PlantUML and Examples in DDD

2.1. lib_eventstorming.puml, a Modularized File

In this file we have defined the following syntax:

The ones we use most of the time:

Command
Aggrgate
Policy
Handler

The remaining comes in handy:

EsEntity
Arrow
FacadeCommmand
Result
Event
DomainEvent
IntegrationEvent
Query
ReadeModel
UserInterface
Service
Saga
Process
Timer
Person
System
Comment

1!global $ICON_FORMAT="png"
2!global $TEXT_WIDTH_MAX=200
3!global $MSG_WIDTH_MAX=150
4!global $FONT_SIZE_XS=10
5!global $FONT_SIZE_SM=12
6!global $FONT_SIZE_MD=16
7!global $FONT_SIZE_LG=20
8!global $FONT_COLOR="#212121"
9!global $FONT_COLOR_LIGHT="#757575"
10
11!procedure EsEntity($shape, $stereotype, $id, $label="")
12  !if ($label != "")
13    $shape "$label" as $id <<$stereotype>>
14  !else
15    $shape $id <<$stereotype>>
16  !endif
17!endprocedure
18
19show stereotype
20
21skinparam defaultTextAlignment center
22skinparam wrapWidth 400
23skinparam maxMessageSize 150
24
25skinparam Arrow {
26    Color $FONT_COLOR
27    FontColor $FONT_COLOR
28    FontSize $FONT_SIZE_SM
29}
30
31' definition of the Item eventstorming/Element/FacadeCommand
32skinparam file<<FacadeCommand>> {
33    StereotypeFontSize $FONT_SIZE_SM
34    shadowing false
35    FontColor $FONT_COLOR
36    BorderColor $FONT_COLOR
37    BackgroundColor #779fae
38}
39
40!procedure FacadeCommand($id, $label="")
41  EsEntity('file', 'FacadeCommand', $id, $label)
42!endprocedure
43' definition of the Item eventstorming/Element/Command
44
45skinparam file<<Command>> {
46    StereotypeFontSize $FONT_SIZE_SM
47    shadowing false
48    FontColor $FONT_COLOR
49    BorderColor $FONT_COLOR
50    BackgroundColor #aec6cf
51}
52
53!procedure Command($id, $label="")
54  EsEntity('file', 'Command', $id, $label)
55!endprocedure
56
57' definition of the Item eventstorming/Element/Result
58skinparam file<<Result>> {
59    StereotypeFontSize $FONT_SIZE_SM
60    shadowing false
61    FontColor $FONT_COLOR
62    BorderColor $FONT_COLOR
63    BackgroundColor #cfcfc4
64}
65
66!procedure Result($id, $label="")
67  EsEntity('file', 'Result', $id, $label)
68!endprocedure
69' definition of the Item eventstorming/Element/Event
70
71
72skinparam file<<Event>> {
73    StereotypeFontSize $FONT_SIZE_SM
74    shadowing false
75    FontColor $FONT_COLOR
76    BorderColor $FONT_COLOR
77    BackgroundColor #ffb853
78}
79
80!procedure Event($id, $label="")
81  EsEntity('file', 'Event', $id, $label)
82!endprocedure
83
84' definition of the Item eventstorming/Element/DomainEvent
85skinparam file<<DomainEvent>> {
86    StereotypeFontSize $FONT_SIZE_SM
87    shadowing false
88    FontColor $FONT_COLOR
89    BorderColor $FONT_COLOR
90    BackgroundColor #ffcb81
91}
92
93!procedure DomainEvent($id, $label="")
94  EsEntity('file', 'DomainEvent', $id, $label)
95!endprocedure
96
97' definition of the Item eventstorming/Element/IntegrationEvent
98skinparam file<<IntegrationEvent>> {
99    StereotypeFontSize $FONT_SIZE_SM
100    shadowing false
101    FontColor $FONT_COLOR
102    BorderColor $FONT_COLOR
103    BackgroundColor #ffdeaf
104}
105
106!procedure IntegrationEvent($id, $label="")
107  EsEntity('file', 'IntegrationEvent', $id, $label)
108!endprocedure
109
110' definition of the Item eventstorming/Element/Query
111skinparam file<<Query>> {
112    StereotypeFontSize $FONT_SIZE_SM
113    shadowing false
114    FontColor $FONT_COLOR
115    BorderColor $FONT_COLOR
116    BackgroundColor #62d862
117}
118
119!procedure Query($id, $label="")
120  EsEntity('file', 'Query', $id, $label)
121!endprocedure
122
123' definition of the Item eventstorming/Element/ReadModel
124aram file<<ReadModel>> {
125    StereotypeFontSize $FONT_SIZE_SM
126    shadowing false
127    FontColor $FONT_COLOR
128    BorderColor $FONT_COLOR
129    BackgroundColor #77dd77
130}
131
132!procedure ReadModel($id, $label="")
133  EsEntity('file', 'ReadModel', $id, $label)
134!endprocedure
135
136' definition of the Item eventstorming/Element/UserInterface
137skinparam file<<UserInterface>> {
138    StereotypeFontSize $FONT_SIZE_SM
139    shadowing false
140    FontColor $FONT_COLOR
141    BorderColor $FONT_COLOR
142    BackgroundColor #a2e8a2
143}
144
145!procedure UserInterface($id, $label="")
146  EsEntity('file', 'UserInterface', $id, $label)
147!endprocedure
148
149' definition of the Item eventstorming/Element/Aggregate
150skinparam file<<Aggregate>> {
151    StereotypeFontSize $FONT_SIZE_SM
152    shadowing false
153    FontColor $FONT_COLOR
154    BorderColor $FONT_COLOR
155    BackgroundColor #fdfd9d
156}
157
158!procedure Aggregate($id, $label="")
159  EsEntity('file', 'Aggregate', $id, $label)
160!endprocedure
161
162' definition of the Item eventstorming/Element/Service
163skinparam file<<Service>> {
164    StereotypeFontSize $FONT_SIZE_SM
165    shadowing false
166    FontColor $FONT_COLOR
167    BorderColor $FONT_COLOR
168    BackgroundColor #fcfc78
169}
170
171!procedure Service($id, $label="")
172  EsEntity('file', 'Service', $id, $label)
173!endprocedure
174' definition of the Item eventstorming/Element/Policy
175
176skinparam file<<Policy>> {
177    StereotypeFontSize $FONT_SIZE_SM
178    shadowing false
179    FontColor $FONT_COLOR
180    BorderColor $FONT_COLOR
181    BackgroundColor #b6a2db
182}
183
184!procedure Policy($id, $label="")
185  EsEntity('file', 'Policy', $id, $label)
186!endprocedure
187
188' definition of the Item eventstorming/Element/Saga
189skinparam file<<Saga>> {
190    StereotypeFontSize $FONT_SIZE_SM
191    shadowing false
192    FontColor $FONT_COLOR
193    BorderColor $FONT_COLOR
194    BackgroundColor #c9bbe5
195}
196
197!procedure Saga($id, $label="")
198  EsEntity('file', 'Saga', $id, $label)
199!endprocedure
200
201' definition of the Item eventstorming/Element/Process
202skinparam file<<Process>> {
203    StereotypeFontSize $FONT_SIZE_SM
204    shadowing false
205    FontColor $FONT_COLOR
206    BorderColor $FONT_COLOR
207    BackgroundColor #ddd4ee
208}
209
210!procedure Process($id, $label="")
211  EsEntity('file', 'Process', $id, $label)
212!endprocedure
213
214' definition of the Item eventstorming/Element/Timer
215skinparam file<<Timer>> {
216    StereotypeFontSize $FONT_SIZE_SM
217    shadowing false
218    FontColor $FONT_COLOR
219    BorderColor $FONT_COLOR
220    BackgroundColor #cfcfc4
221}
222
223!procedure Timer($id, $label="")
224  EsEntity('file', 'Timer', $id, $label)
225!endprocedure
226
227' definition of the Item eventstorming/Element/Person
228skinparam actor<<Person>> {
229    StereotypeFontSize 0
230    shadowing false
231    FontColor $FONT_COLOR
232    BorderColor $FONT_COLOR
233    BackgroundColor #ffd1dc
234}
235
236!procedure Person($id, $label="")
237  EsEntity('actor', 'Person', $id, $label)
238!endprocedure
239
240' definition of the Item eventstorming/Element/System
241skinparam file<<System>> {
242    StereotypeFontSize $FONT_SIZE_SM
243    shadowing false
244    FontColor $FONT_COLOR
245    BorderColor $FONT_COLOR
246    BackgroundColor #ffd1dc
247}
248
249!procedure System($id, $label="")
250  EsEntity('file', 'System', $id, $label)
251!endprocedure
252
253' definition of the Item eventstorming/Element/Comment
254skinparam file<<Comment>> {
255    StereotypeFontSize $FONT_SIZE_SM
256    shadowing false
257    FontColor $FONT_COLOR
258    BorderColor $FONT_COLOR
259    BackgroundColor transparent
260}
261
262!procedure Comment($id, $label="")
263  EsEntity('file', 'Comment', $id, $label)
264!endprocedure
265
266
267skinparam rectangle<<Handler>> {
268    StereotypeFontSize $FONT_SIZE_SM
269    shadowing false
270    FontColor $FONT_COLOR
271    BorderColor $FONT_COLOR
272    BackgroundColor #e8f4fd
273}
274
275!procedure Handler($id, $label="")
276  EsEntity('file', 'Handler', $id, $label)
277!endprocedure

2.2. timetable.puml

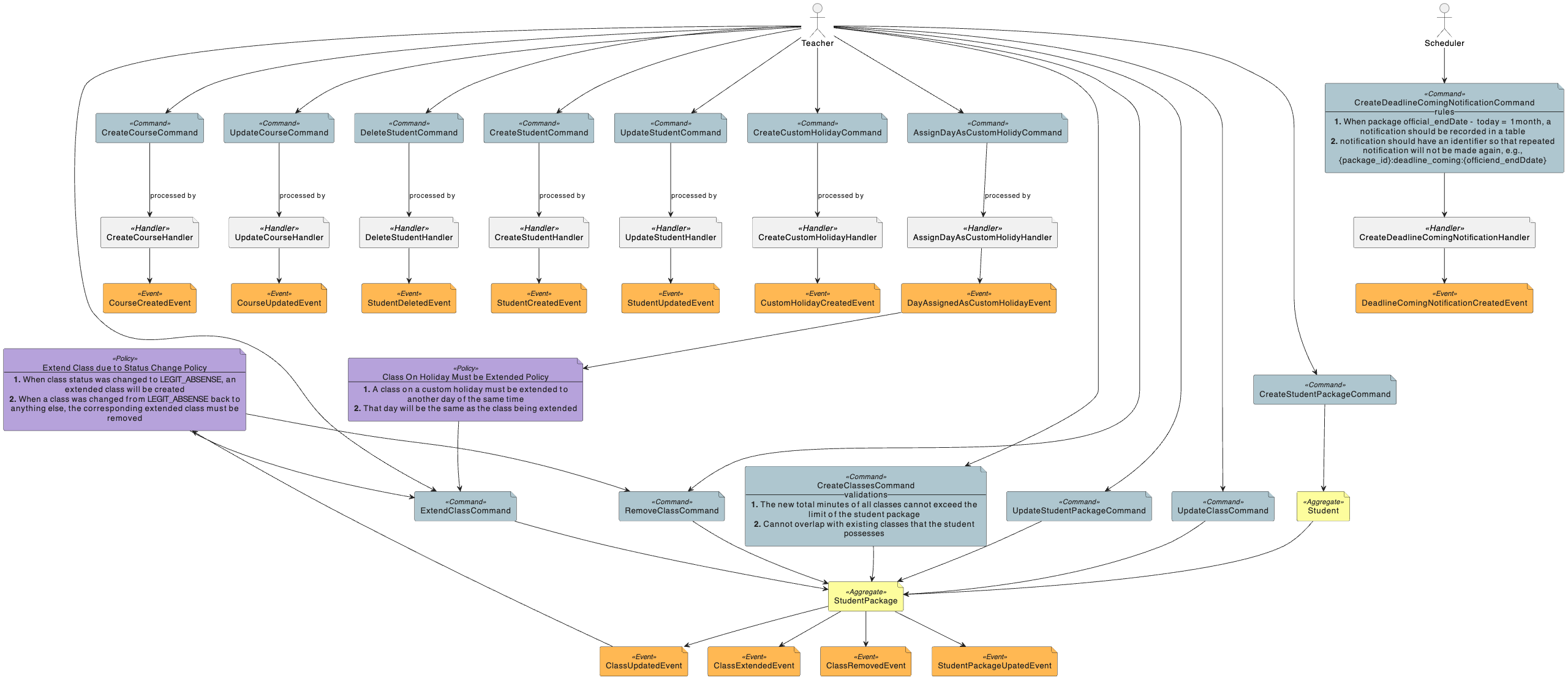

2.2.1. The Diagram Result

2.2.2. The Code Implementation

Let's import the definition (the highlighted line) and draw the diagram as follows:

1@startuml
2!include lib_eventstorming.puml
3
4actor Teacher as Teacher
5
6
7Aggregate("Student")
8
9together {
10    Command("CreateCourseCommand")
11    Command("UpdateCourseCommand")
12    Command("DeleteStudentCommand")
13}
14
15Command("CreateStudentPackageCommand")
16
17together{
18    Command("CreateStudentCommand")
19    Command("UpdateStudentCommand")
20    Command("CreateCustomHolidayCommand")
21    Command("AssignDayAsCustomHolidyCommand")
22}
23
24Handler("CreateCourseHandler")
25Event("CourseCreatedEvent")
26CreateCourseCommand --> CreateCourseHandler : "processed by"
27CreateCourseHandler --> CourseCreatedEvent
28Handler("UpdateCourseHandler")
29Event("CourseUpdatedEvent")
30UpdateCourseCommand --> UpdateCourseHandler : "processed by"
31UpdateCourseHandler --> CourseUpdatedEvent
32Handler("DeleteStudentHandler")
33Event("StudentDeletedEvent")
34DeleteStudentCommand --> DeleteStudentHandler : "processed by"
35DeleteStudentHandler --> StudentDeletedEvent
36Handler("UpdateStudentHandler")
37Event("StudentUpdatedEvent")
38UpdateStudentCommand --> UpdateStudentHandler : "processed by"
39UpdateStudentHandler --> StudentUpdatedEvent
40
41CreateCourseCommand-[hidden]down-CreateStudentCommand
42Handler("CreateCustomHolidayHandler")
43Event("CustomHolidayCreatedEvent")
44CreateCustomHolidayCommand --> CreateCustomHolidayHandler : "processed by"
45CreateCustomHolidayHandler --> CustomHolidayCreatedEvent
46Handler("CreateStudentHandler")
47Event("StudentCreatedEvent")
48CreateStudentCommand --> CreateStudentHandler : "processed by"
49CreateStudentHandler --> StudentCreatedEvent
50Event("DayAssignedAsCustomHolidayEvent")
51
52Handler("AssignDayAsCustomHolidyHandler")
53AssignDayAsCustomHolidyCommand --> AssignDayAsCustomHolidyHandler : "processed by"
54AssignDayAsCustomHolidyHandler --> DayAssignedAsCustomHolidayEvent
55
56together{
57    Command("CreateClassesCommand")[
58        CreateClassesCommand
59        --validations--
60        **1.** The new total minutes of all classes cannot exceed the limit of the student package
61        **2.** Cannot overlap with existing classes that the student possesses
62    ]
63    Aggregate("StudentPackage")
64    Command("UpdateClassCommand")
65    Command("RemoveClassCommand")
66    Command("UpdateStudentPackageCommand")
67}
68
69CreateClassesCommand-[hidden]down-StudentPackage
70
71Policy("ClassOnHolidayMustExtendPolicy")[
72    Class On Holiday Must be Extended Policy
73    --
74    **1.** A class on a custom holiday must be extended to another day of the same time
75    **2.** That day will be the same as the class being extended
76]
77
78' Position ExtendClassCommand directly below the policy
79Command("ExtendClassCommand")
80
81Policy("ExtendClassPolicy")[
82    Extend Class due to Status Change Policy
83    --
84    **1.** When class status was changed to LEGIT_ABSENSE, an extended class will be created
85    **2.** When a class was changed from LEGIT_ABSENSE back to anything else, the corresponding extended class must be removed
86]
87
88
89DayAssignedAsCustomHolidayEvent --> ClassOnHolidayMustExtendPolicy
90ClassOnHolidayMustExtendPolicy --> ExtendClassCommand
91
92' Use hidden connection to force vertical alignment
93ClassOnHolidayMustExtendPolicy -[hidden]down- ExtendClassCommand
94
95together{
96    Event("ClassExtendedEvent")
97    Event("ClassUpdatedEvent")
98    Event("ClassRemovedEvent")
99    Event("StudentPackageUpatedEvent")
100}
101
102Student --> StudentPackage
103
104Teacher --> CreateCourseCommand
105Teacher --> UpdateCourseCommand
106Teacher --> CreateStudentCommand
107Teacher --> UpdateStudentCommand
108Teacher --> DeleteStudentCommand
109Teacher --> CreateStudentPackageCommand
110Teacher --> UpdateStudentPackageCommand
111Teacher --> CreateClassesCommand
112Teacher --> UpdateClassCommand
113Teacher --> RemoveClassCommand
114Teacher --> ExtendClassCommand
115Teacher --> CreateCustomHolidayCommand
116Teacher --> AssignDayAsCustomHolidyCommand
117
118UpdateStudentPackageCommand --> StudentPackage
119CreateClassesCommand --> StudentPackage
120UpdateClassCommand --> StudentPackage
121RemoveClassCommand --> StudentPackage
122CreateStudentPackageCommand --> Student
123
124UpdateStudentPackageCommand-[hidden]down-StudentPackage
125
126StudentPackage --> ClassExtendedEvent
127StudentPackage --> ClassUpdatedEvent
128StudentPackage --> ClassRemovedEvent
129StudentPackage --> StudentPackageUpatedEvent
130ClassUpdatedEvent --> ExtendClassPolicy
131ExtendClassPolicy --> ExtendClassCommand
132ExtendClassPolicy --> RemoveClassCommand
133ExtendClassCommand --> StudentPackage
134
135actor Scheduler as Scheduler
136
137Command("CreateDeadlineComingNotificationCommand")[
138    CreateDeadlineComingNotificationCommand
139    --rules--
140    **1.** When package official_endDate - today = 1month, a notification should be recorded in a table
141    **2.** notification should have an identifier so that repeated notification will not be made again, e.g., {package_id}:deadline_coming:{officiend_endDdate}
142]
143Handler("CreateDeadlineComingNotificationHandler")
144Event("DeadlineComingNotificationCreatedEvent")
145CreateDeadlineComingNotificationCommand --> CreateDeadlineComingNotificationHandler
146CreateDeadlineComingNotificationHandler --> DeadlineComingNotificationCreatedEvent
147
148Scheduler --> CreateDeadlineComingNotificationCommand
149
150@enduml

3. Some Useful Reposition Trick

3.1. Group Together

1together {
2    <element1>
3    <element2>
4}

3.2. Align Vertically

Note that it is not strictly vertically aligned, the horizontal position is still calculated by the native algorithm

1<element1>-[hidden]down-<element2>

4. Generate PDF File

I have built a docker image to produce a pdf file inside the container:

1docker run --rm -v $(pwd):/data machingclee/plantuml-pdf -tpdf timetable.puml

5. GUI Application

5.1. Pladitor

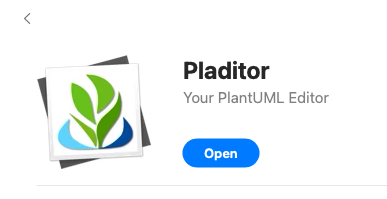

When our diagram becomes very huge, it would be better to reach our code via clicking the diagram. Luckily there is already a GUI-application to achieve this called Pladitor:

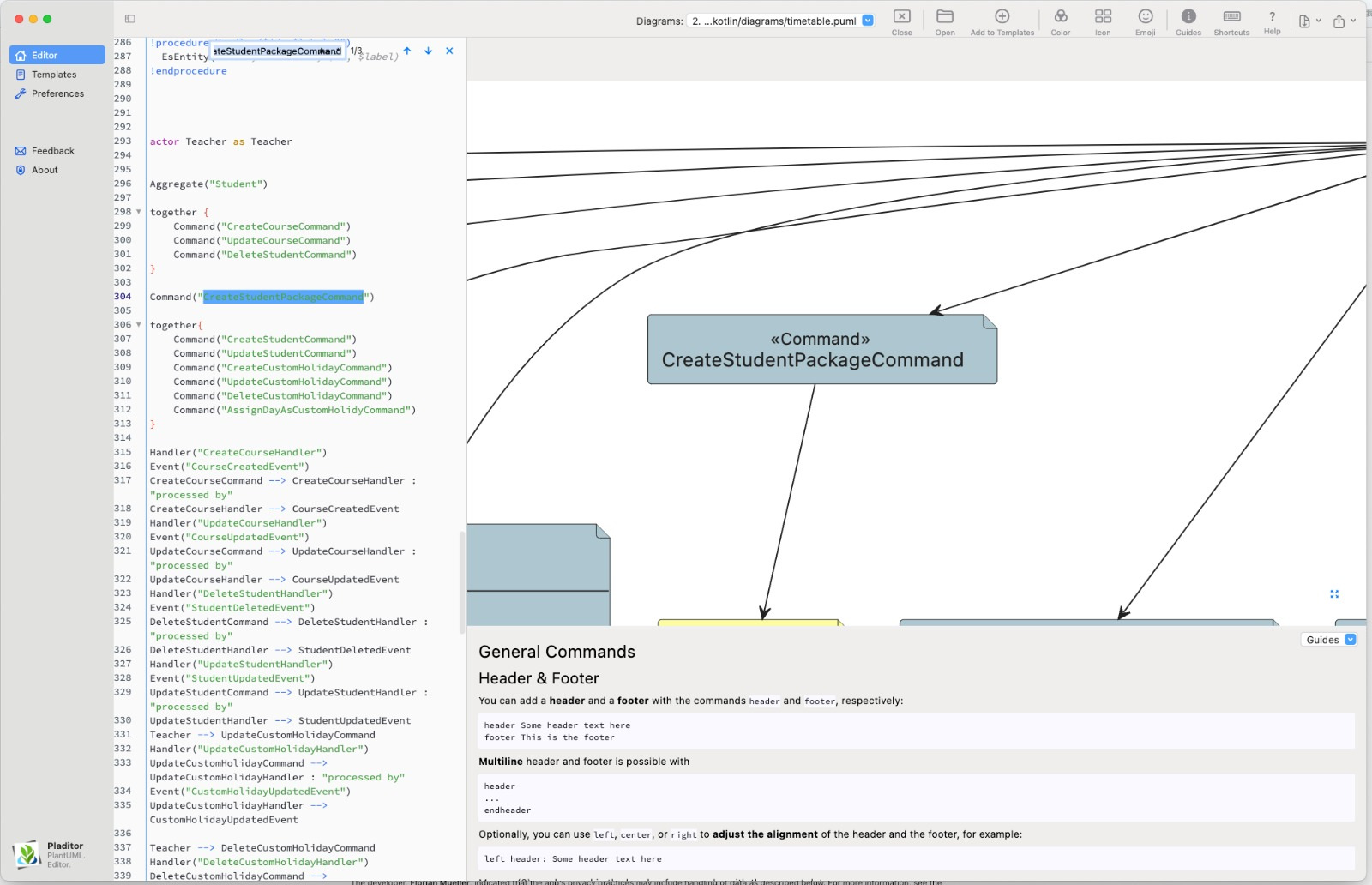

it costs HKD 88 but now we can click our "card" to reach our code easily:

5.2. !include failed, now we use !includeurl

Unforturnately the !incldue macro is not available in pladitor, however we can upload the puml definition to github and import it as follows:

1@startuml
2!includeurl https://raw.githubusercontent.com/machingclee/2025-08-23-plantUML-config/refs/heads/main/lib_eventstorming.puml

Contents
