March 30, 2022

Ctrl- and Middle-Clickable Button; Method to Scroll to Target Element

react

Contents

Make Button able to be Ctrl-Clicked and Middle-Clicked

If we simply make a button with history.push() registered as a click event, then this button cannot be ctrl-clicked and middle-clicked. Or even if we implement window.open(href, "_blank") when only these two operations are performed, we cannot manage to keep the browser to stay in the current tab.

The only possible way is to use anchor, so let's record the following function that keep ordinary anchor behaviour and use history.push for simple left-click!

The key boolean we need is:

const middleClickedOrCtrlPressed = event.button === 1 || event.ctrlKey;

This indicates either

  • the middle-button is clicked or
  • the control key is pressed, with that:
  const navToArticle = (articleId: string) => (event?: MouseEvent<HTMLElement>) => {
    if (event) {
      if (event.button === 1 || (event.ctrlKey && event.button === 0)) {
        // middle-click or ctrl+leftclick
        window.open(urlByArticleId(articleId), "_blank");
      }
      else {
        history.push(urlByArticleId(articleId))
      }
    }
  }
  return (
    ...
    <a
      href={urlByArticleId(articleId)}
      onClick={navToArticle(articleId)}
    >
      <Button>
      ...
      </Button>
    </a>
  )

Sometimes we use <a/> to wrap <button/> element that may have animation effect, we may need to setTimeout for history.push (with 50ms, say) for smoother experience.

Scroll to Target Element

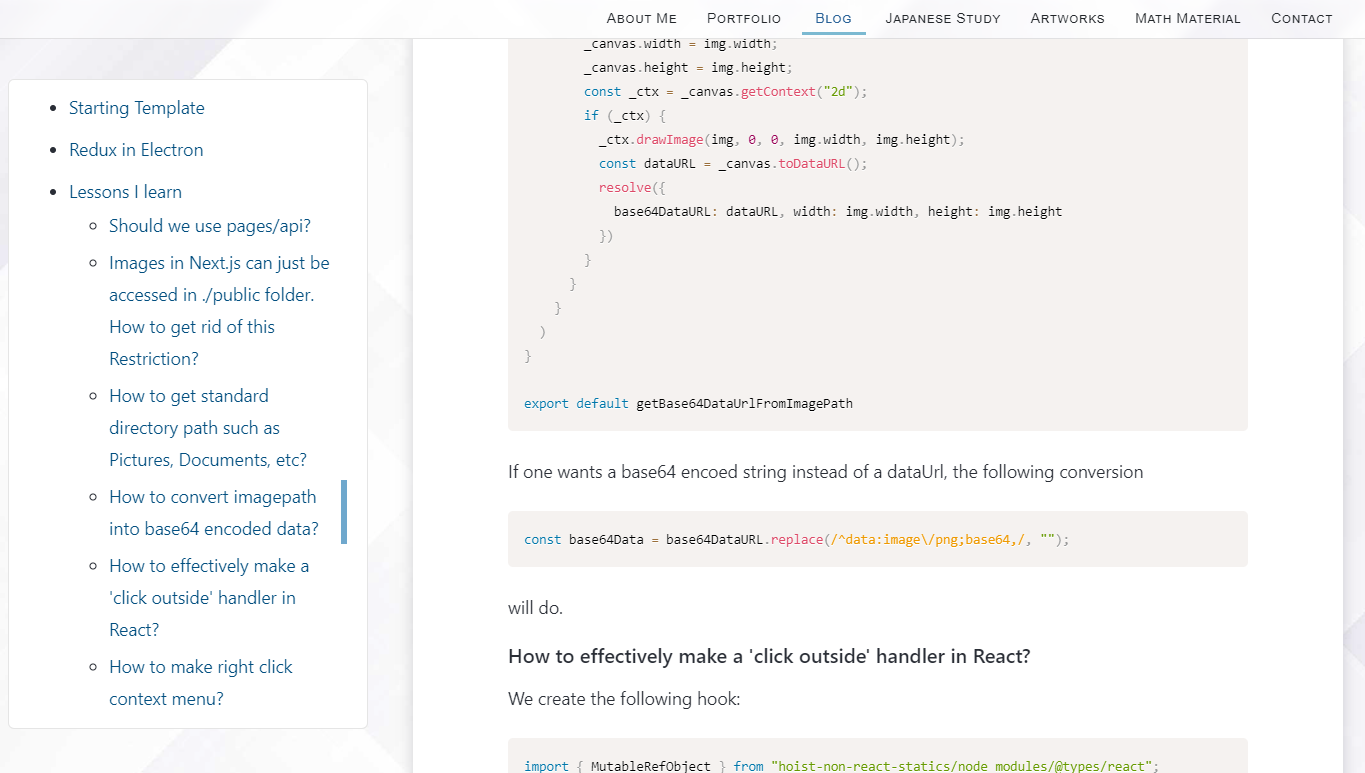

Recently I have implemented a floating TOC (as shown in the picture or LHS of this article), this will pop up when the browser scroll down and go across some threshold depending on the bottom of the top TOC:

But when there are too many titles, for example: in this article, then it is natural to wish the floating TOC can highlight and scroll to that title automatically.

For highlighting title, behind the scene we calculate at which position we have scrolled to and assign the corresponding active anchor in the floating TOC an active className. We now focus on how to get the relative position of our active anchor from the top of its parent --- the floating TOC.

Suppose as in the picture we want to highlight the active anchor: How to convert imagepath into base64 encoded data, which is stored in the variable titleAnchor, then:

  • The relative position of titleAnchor to its parent is calculated by
    const scrollDistance = (titleAnchor as HTMLAnchorElement).offsetTop;
  • We get the parent by the assigned id
    const floatingToc = document.querySelector("#floating-toc");
  • Then we scroll to the specfic position by
    floatingToc?.scrollTo({
  left: 0,
  top: scrollDistance,
  behavior: "smooth",
});
