April 13, 2025

Amazon EventBridge Schedule to Trigger Springboot Endpoint

aws

Contents

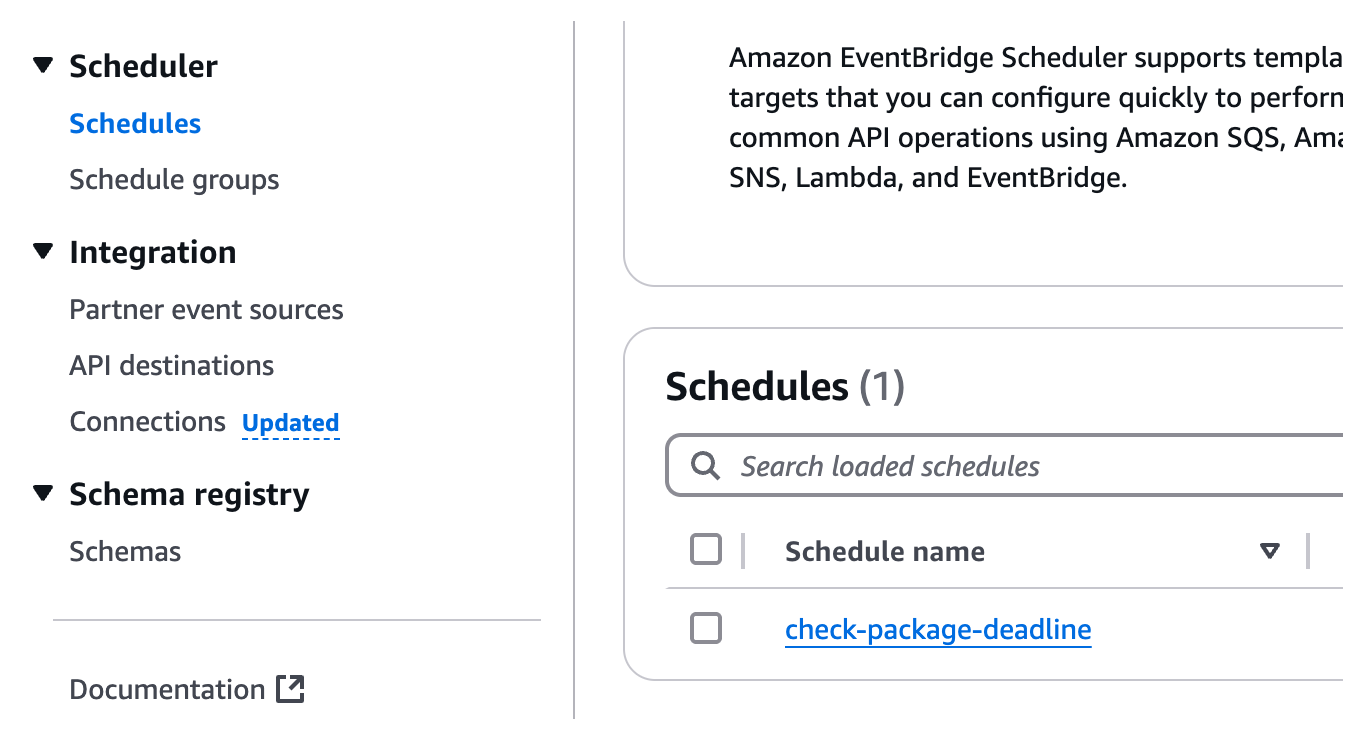

Create a Simple Scheduler from EventBridge

Create a Lambda Function and let the Schedule Triggers it

Our execution flow involves the following steps:

  1. Scheduler triggers a lambda function in js written in the aws console.
  2. This js lamdba invoke our springboot lambda via client-lambda sdk.
  3. Springboot lambda handles the task.

Remark 1. This springboot lamdba can be sheerly internal, meaning that this is simply a function and not exposed to the public via api-gateway nor via load-balancer.

Remark 2. Unless our springboot lambda is also exposed to the public, we can add signature to the payload sent from js lambda to springboot lamdba (by using the same secret in both ends). For simplicity in this article we simply send a GET request to an endpoint.

import {
  InvokeCommand,
  LambdaClient,
  ListLayersCommand,
} from "@aws-sdk/client-lambda";

export const handler = async (event) => {
  const client = new LambdaClient({ region: process.env.AWS_REGION });

  const apiGatewayEvent = {
    httpMethod: "GET",
    path: "/scheduling/package-deadline/check",
    headers: {
      "Content-Type": "application/json",
    },
    requestContext: {
      identity: {
        sourceIp: "127.0.0.1",
      },
    },
  };

  const command = new InvokeCommand({
    FunctionName: "alice-timetable-kotlin-dev-api",
    Payload: JSON.stringify(apiGatewayEvent),
    InvocationType: "RequestResponse",
  });

  const response = await client.send(command);
  console.log(JSON.stringify(response, null, 4));

  const res = {
    statusCode: 200,
    body: "Response: " + JSON.stringify(response),
  };
  return res;
};

Now this lambda function will invoke our springboot application (alice-timetable-kotlin-dev-api) by calling our endpoint /scheduling/package-deadline/check regularly (depends on how long you scheduled repeatedly).

The Endpoint to be Invoked Regularly: /scheduling/package-deadline/check

In our springboot application we have defined

package dev.james.alicetimetable.controller

import dev.james.alicetimetable.commons.models.APIResponse
import org.springframework.web.bind.annotation.GetMapping
import org.springframework.web.bind.annotation.RequestMapping
import org.springframework.web.bind.annotation.RestController


@RestController
@RequestMapping("/scheduling")
class ScehduleController {
    @GetMapping("/package-deadline/check")
    fun checkPackagesDeadline(): APIResponse<String> {
        println("I am checking deadline")
        return APIResponse("This is the trigger route for deadline-checking.")
    }
}
The Policy

In order for schedule's lambda function to invoke our springboot lambda, let's create an inline-policy:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Action": ["lambda:InvokeFunction"],
      "Resource": [
        "arn:aws:lambda:ap-northeast-1:562976154517:function:alice-timetable-kotlin-dev-api"
      ],
      "Effect": "Allow"
    }
  ]
}

Ideally for relatively serious project we should manage this policy in terraform code. For small project it is fine to simply create it manually (be sure to do the same thing in all environments).

Cloudwatch Results

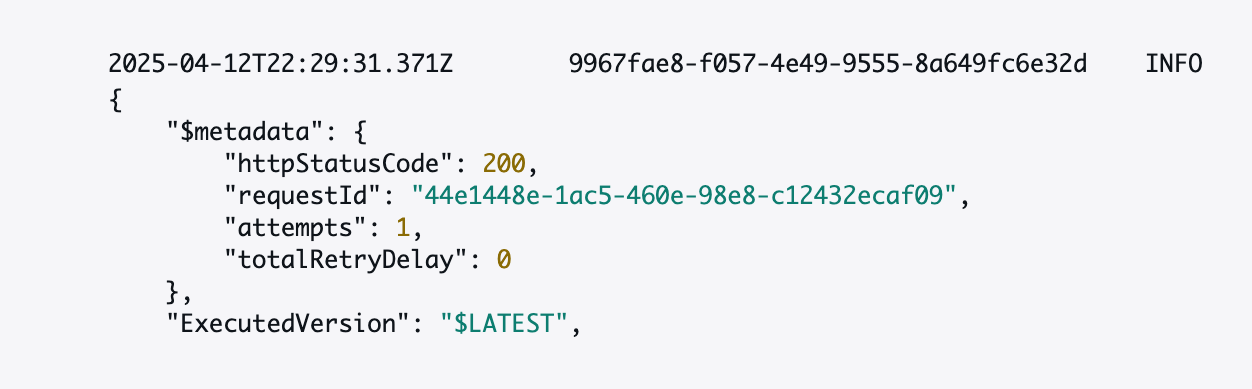

The Schedule, aka, Invoker (Lamdba)

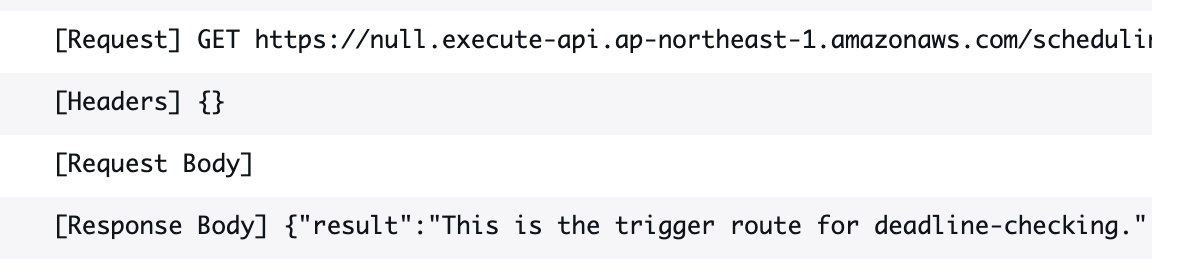

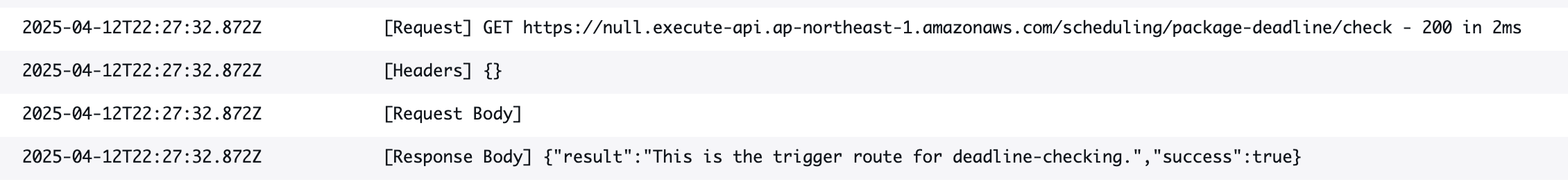

The Springboot
