K8S Basics Part II: Networking

k8s

Contents

Repository

Revisit Deployment and Service

Let's start with a simple deployment and service script:

  • # users-deployment.yml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: users-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: users
  template:
    metadata:
      labels:
        app: users
    spec:
      containers:
        - name: users
          image: machingclee/kub-demo-users
  • k apply -f users-deployment.yml
  • # k8s/users-service.yml
apiVersion: v1
kind: Service
metadata:
  name: users-service
spec:
  selector:
    app: users
  type: LoadBalancer
  ports:
    - protocol: TCP
      port: 8080 # outside facing
      targetPort: 8080 # container expected port

    Note the choice of service type here:

    • ClusterIP This is the default choice, it is equipped with an internal IP with internal load balanacing.
    • NodePort The IP address is not stable as nodes are changing when being created and deleted.
    • LoadBalancer will expose the target deployment selected by selector to the public.
  • k apply -f k8s/users-service.yml
  • minikube service users-service <-- minikube only, k8s service provider should provide the address automatically

This sequence of ymls and scripts can deploy a deployment and expose that deployment by service to outside of the k8s cluster.

Networking within Pods in a k8s Cluster

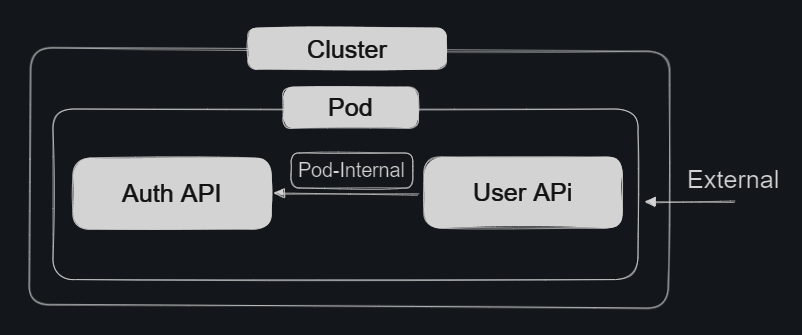

Two Containers in a Pod

It is possible to deploy two containers using one pod to mimic what we have done in a docker compose:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: users-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: users
  template:
    metadata:
      labels:
        app: users
    spec:
      containers:
        - name: users
          image: machingclee/kub-demo-users:latest
        - name: auth
          image: machingclee/kub-demo-auth:latest

  • Note that we add :latest in the image name so that k8s always refetch the latest one for deployment.

  • The above configruation tries to run two containers inside the same pod.

  • In that case, two containers can commuicate with each other by the magic address http://localhost:<port>.

Two Containers in Seperated Pods with

auth-deployment.yml and auth-service.yml

Our auth-deployment.yml and auth-service.yml:

# auth-deployment.yml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: auth-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: auth
  template:
    metadata:
      labels:
        app: auth
    spec:
      containers:
        - name: auth
          image: machingclee/kub-demo-auth:latest
# auth-service.yml
apiVersion: v1
kind: Service
metadata:
  name: auth-service
spec:
  selector:
    app: auth
  type: ClusterIP
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80
Method 1: By k8s Generated Environemnt Variable

  • The networking configuration provided by auth-service.yml has a metadata called auth-service

  • Therefore the address inside a k8s cluster can be retrieved by AUTH_SERVICE_SERVICE_HOST

  • Which can be directly applied in our code as shown by the highlighted:

    const express = require('express');
const bodyParser = require('body-parser');
const axios = require('axios');

const app = express();

app.use(bodyParser.json());

app.post('/signup', async (req, res) => {
  // It's just a dummy service - we don't really care for the email
  const email = req.body.email;
  const password = req.body.password;

  if (
    !password ||
    password.trim().length === 0 ||
    !email ||
    email.trim().length === 0
  ) {
    return res
      .status(422)
      .json({ message: 'An email and password needs to be specified!' });
  }

  try {
    const hashedPW = await axios.get(`http://${process.env.AUTH_SERVICE_SERVICE_HOST}/hashed-password/` + password);
    // const hashedPW = "dummy text";

    // since it's a dummy service, we don't really care for the hashed-pw either
    console.log(hashedPW, email);
    res.status(201).json({ message: 'User created!' });
  } catch (err) {
    console.log(err);
    return res
      .status(500)
      .json({ message: 'Creating the user failed - please try again later.' });
  }
});
Method 2: By k8s' core-DNS

  • Alternatively, a namespace of each service has been provided automatically inside a k8s cluster by the core-DNS feature.

  • Therefore in users-deployment script we can as well:

    apiVersion: apps/v1
kind: Deployment
metadata:
  name: users-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: users
  template:
    metadata:
      labels:
        app: users
    spec:
      containers:
        - name: users
          image: machingclee/kub-demo-users:latest
          env:
            - name: AUTH_ADDRESS
              value: "auth-service.default" # actually a namespace

    Now to communicate with auth-service pod we simply use http://${AUTH_ADDRESS}/* in our deployment.
