November 16, 2024

Snapstarted Lambda running Spring Boot and Transition into Spring Boot as a Node.js Developer

aws

lambda

serverless

springboot

Contents

Lambda function configuration

serverless.yml

Note that the highlighted line enables us to snapshot a lambda function:

service: <your-application-name>
package:
  individually: true
  artifact: build/libs/function.jar
provider:
  name: aws
  region: ap-southeast-2
  stage: dev
  runtime: java17

functions:
  api:
    timeout: 900
    handler: com.your.package.LambdaHandler
    snapStart: true
    environment:
      SPRING_PROFILES_ACTIVE: dev
      MAIN_CLASS: com.your.package.ApplicationKt
    events:
      - http: ANY /
      - http: ANY /{proxy+}

custom:
  scriptable:
    hooks:
      "before:package:createDeploymentArtifacts": >
        docker run --rm
        -v %cd%:/app
        -w /app
        gradle:jdk17
        gradle lambdaJar

plugins:
  - serverless-scriptable-plugin

Here %cd% is for windows machine, if you are using linux, please change it to $(pwd).

The LambdaHandler
package com.your.package

import com.amazonaws.serverless.proxy.model.AwsProxyRequest
import com.amazonaws.serverless.proxy.model.AwsProxyResponse
import com.amazonaws.services.lambda.runtime.Context
import com.amazonaws.services.lambda.runtime.RequestHandler
import com.amazonaws.serverless.proxy.spring.SpringBootLambdaContainerHandler

class LambdaHandler : RequestHandler<AwsProxyRequest, AwsProxyResponse> {
    companion object {
        private val handler = SpringBootLambdaContainerHandler.getAwsProxyHandler(BillieApplication::class.java)
    }

    override fun handleRequest(input: AwsProxyRequest,  context: Context): AwsProxyResponse {
        return handler.proxy(input, context)
    }
}
Minimal build.gradle.kts for a Complete Project
import org.springframework.boot.gradle.tasks.bundling.BootJar

plugins {
    kotlin("jvm") version "1.9.25"
    kotlin("plugin.spring") version "1.9.25"
    id("org.springframework.boot") version "3.3.0-SNAPSHOT"
    id("io.spring.dependency-management") version "1.1.6"
    kotlin("plugin.jpa") version "1.9.25"
    kotlin("plugin.serialization") version "2.0.0"
}

group = "com.your" // com.your.project, here "your" is usually a company
version = "0.0.1-SNAPSHOT"

java {
    toolchain {
        languageVersion = JavaLanguageVersion.of(17)
    }
}

repositories {
    mavenCentral()
    maven { url = uri("https://repo.spring.io/milestone") }
    maven { url = uri("https://repo.spring.io/snapshot") }
}

dependencies {
    implementation("org.springframework.boot:spring-boot-starter")
    implementation("org.springframework.boot:spring-boot-starter-web")
    implementation("org.springframework.boot:spring-boot-starter-data-jpa")
    implementation("org.springframework.boot:spring-boot-starter-aop")
    implementation("com.amazonaws.serverless:aws-serverless-java-container-springboot3:2.0.3")
    implementation("org.jetbrains.kotlinx:kotlinx-serialization-json:1.7.1")
    implementation("io.github.oshai:kotlin-logging-jvm:5.1.0")

    implementation("com.google.api-client:google-api-client:2.0.0")
    implementation("com.google.oauth-client:google-oauth-client-jetty:1.34.1")
    implementation("com.google.apis:google-api-services-gmail:v1-rev20220404-2.0.0")
    implementation("com.google.code.gson:gson:2.11.0")
    implementation("javax.mail:mail:1.4.7")

    implementation("com.amazonaws:aws-lambda-java-core:1.2.3")
    implementation("com.amazonaws:aws-lambda-java-events:3.11.3")
    implementation("com.fasterxml.jackson.module:jackson-module-kotlin")
    implementation("org.jetbrains.kotlin:kotlin-reflect")
    implementation("io.fusionauth:fusionauth-jwt:5.3.3")
    implementation("at.favre.lib:bcrypt:0.10.2")
    runtimeOnly("org.postgresql:postgresql")
    testImplementation("org.springframework.boot:spring-boot-starter-test")
    testImplementation("org.jetbrains.kotlin:kotlin-test-junit5")
    testRuntimeOnly("org.junit.platform:junit-platform-launcher")
}

kotlin {
    compilerOptions {
        freeCompilerArgs.addAll("-Xjsr305=strict")
    }
}

allOpen {
    annotation("jakarta.persistence.Entity")
    annotation("jakarta.persistence.MappedSuperclass")
    annotation("jakarta.persistence.Embeddable")
}

tasks.withType<Test> {
    useJUnitPlatform()
}

tasks.register<Jar>("lambdaJar") {
    archiveFileName.set("function.jar")
    destinationDirectory.set(layout.buildDirectory.dir("libs"))
    from(sourceSets.main.get().output)
    into("lib") {
        from(configurations.runtimeClasspath) {
            exclude("**/tomcat-*.jar")
        }
    }
    duplicatesStrategy = DuplicatesStrategy.EXCLUDE
}

tasks.named<Jar>("lambdaJar") {
    group = "application"
    description = "Creates a jar file suitable for AWS Lambda deployment"
}

tasks.withType<BootJar> {
    targetJavaVersion = JavaVersion.VERSION_17
}

Spring Boot in Node.js Developer Perspective

Replacement of Middleware by AOP Programming

In node.js we usually write

app.use("/file", jwtAuthMiddleware, fileRouter);
app.use("/search", jwtAuthMiddleware, searchRouter);

to validate incoming requests or to inject desired object into our context object before reaching any of our routers (in express case, the context is our req).

Filter and HandlerInterceptor, no, not what we want

In spring boot there are two similar concepts that serve this purpose:

  • Filter (Servlet Level)
  • Interceptor (Application Level in which @Bean's are available)

The drawback using these approches is the interception is highly implicit. For example, to add an interceptor at applicaiton level we need to define our customer HandlerInterceptor class object and add it manually:

@Configuration
class JwtWebMvcConfigurer(
    private val jwtHandlerInterceptor: JwtHandlerInterceptor
) : WebMvcConfigurer {

    override fun addInterceptors(registry: InterceptorRegistry) {
        registry.addInterceptor(jwtHandlerInterceptor).addPathPatterns("/course/**")
    }
}

Adding a filter follows a simular pattern.

Adding middleware via direct annotation

Instead we can annotate a controller by @AccessToken which do all the token-validation and "user-data-injection" for us:

@RestController
@RequestMapping("/hello")
@AccessToken
class HelloController(
    @Value("\${stage.env}") private val env: String,
    private val orderRepository: OrderRepository,
    private val eventRepository: EventRepository,
    private val gmailService: GmailService,
    private val roleRepository: RoleRepository,
) {
    @GetMapping("/create-relation")
    @Transactional
    ...

Let's define our @AccessToke!

Define an Aspect Triggered by @AccessToken
package com.your.package.commons.aop

import com.wonderbricks.billie.service.JwtPayload
import com.wonderbricks.billie.service.JwtService
import org.aspectj.lang.annotation.Aspect
import org.aspectj.lang.annotation.Pointcut
import org.springframework.stereotype.Component
import org.springframework.web.context.request.RequestContextHolder
import org.springframework.web.context.request.ServletRequestAttributes
import io.fusionauth.jwt.JWTExpiredException
import org.aspectj.lang.ProceedingJoinPoint
import org.aspectj.lang.annotation.Around
import org.aspectj.lang.reflect.MethodSignature

@Target(AnnotationTarget.CLASS)
@Retention(AnnotationRetention.RUNTIME)
annotation class AccessToken

@Target(AnnotationTarget.VALUE_PARAMETER)
@Retention(AnnotationRetention.RUNTIME)
annotation class RequestUser

@Aspect
@Component
class AccessTokenAspect(private val jwtService: JwtService) {
    private val authHeader: String = "authorization"

    @Pointcut("@within(com.wonderbricks.billie.commons.aop.AccessToken)")
    fun getUserPointcut() {
    }

    @Around("getUserPointcut()")
    fun logBefore(joinPoint: ProceedingJoinPoint): Any? {
        val requestAttributes = RequestContextHolder.getRequestAttributes() as? ServletRequestAttributes
        val request = requestAttributes?.request
        try {
            val accessToken = request?.getHeader(authHeader)?.replace("Bearer ", "") ?: ""
            if (accessToken == "") {
                throw Exception("AccessToken cannot be empty")
            }
            val payload: JwtPayload = jwtService.parseAndVerifyToken(accessToken)!!

            val method = (joinPoint.signature as MethodSignature).method
            val args = joinPoint.args
            val modifiedArgs = Array(args.size) { index ->
                if (method.parameters[index].isAnnotationPresent(RequestUser::class.java)) {
                    payload
                } else {
                    args[index]
                }
            }
            return joinPoint.proceed(modifiedArgs)

        } catch (exception: Exception) {
            val errorMessage = when (exception) {
                is JWTExpiredException -> "JWT_EXPIRED"
                else -> exception.toString()
            }
            throw Exception(errorMessage)
        }
    }
}

For more refined access control using custom annotations, we may simply ask chat-gpt for the code implementation.

HandlerMethodArgumentResolver: Configure Spring Boot to Resolve @RequestUser

We want to access our data annotated by @RequestUser in the same fashion as @RequestBody.

However by default spring boot will validate all parameters passing through the argument of each method (e.g., @RequestBody or @PathVariable), in which it has no idea how to validate our @RequestUser-annotated data.

Therefore we need to make configuration to let spring boot ignore this annotation in the input argument of a controller method:

package com.your.package.commons.config

import com.wonderbricks.billie.commons.aop.RequestUser
import org.springframework.context.annotation.Configuration
import org.springframework.core.MethodParameter
import org.springframework.stereotype.Component
import org.springframework.web.bind.support.WebDataBinderFactory
import org.springframework.web.context.request.NativeWebRequest
import org.springframework.web.method.support.HandlerMethodArgumentResolver
import org.springframework.web.method.support.ModelAndViewContainer
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer

@Component
class RequestUserArgumentResolver : HandlerMethodArgumentResolver {
    override fun supportsParameter(parameter: MethodParameter): Boolean {
        return parameter.hasParameterAnnotation(RequestUser::class.java)
    }

    override fun resolveArgument(
        parameter: MethodParameter,
        mavContainer: ModelAndViewContainer?,
        webRequest: NativeWebRequest,
        binderFactory: WebDataBinderFactory?
    ): Any? {
        // By returning null, it skips Spring's default parameter resolution, allowing custom logic (such as an aspect) to inject the value.
        return null
    }
}

@Configuration
class WebMvcConfig(private var requestUserArgumentResolver: RequestUserArgumentResolver) : WebMvcConfigurer {
    override fun addArgumentResolvers(resolvers: MutableList<HandlerMethodArgumentResolver>) {
        resolvers.add(requestUserArgumentResolver)
    }
}

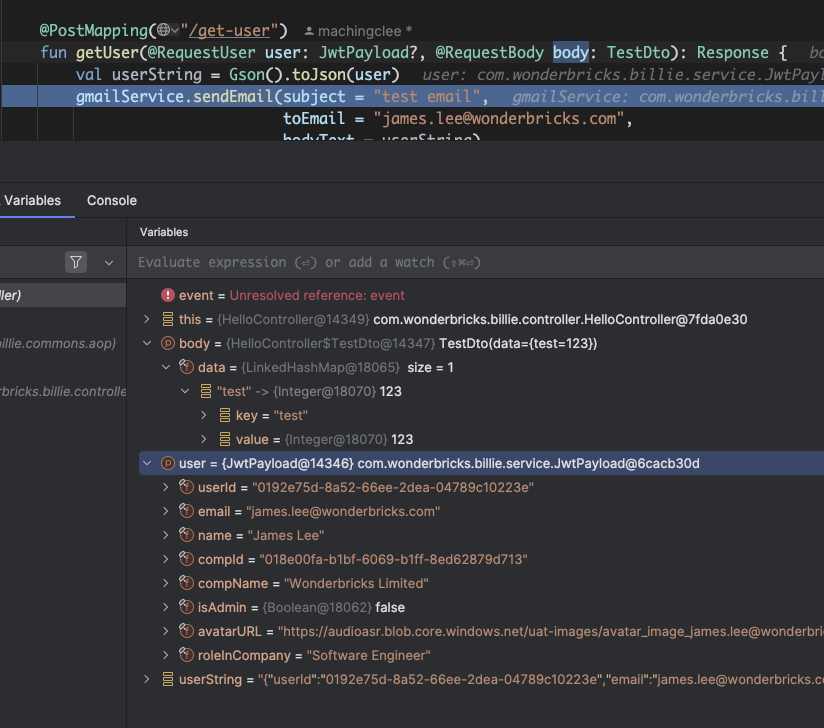

Now we get the parsed user object easily via anntation!

File Uploading

In node.js we handle file uploading (with formdata as request body) by using

import multiparty from "multiparty";

const handler = (req: Request, res: Response) => {
    const form = new multiparty.Form();
    form.parse(req);
    form.on("part", async (inputStream: multiparty.Part) => {
        ...
    })
}

Now in spring boot:

@PostMapping("/upload)
fun fileUpload(@RequestPart("file") file: MultipartFile?) {
    val uploadFile = file?.inputStream?.let {
        ...
    }
}

Remember to enable Multipart file option:

# appplication.yml
spring:
  servlet:
    multipart:
      enabled: true
      max-file-size: 10MB
      max-request-size: 10MB
JPA using relation tables
The Prisma Model

By mentioning Prisma with spring boot, it implicitly means that we are using database-first approach. Therefore we need to reverse-engineer existing database into jpa @Entity classes. We have mentioned how to do it in this article with the help of JOOQ.

Beware of the detail of:

  • how to handle PostgreSQL enums and
  • how to config PostgreSQL to enclose the table name in every single query by double quotes. These are discussed in depth in the article as well.

Let's read about a prisma definition of our 3 tables, which is basically a one-to-many model (one role has many permissions):

model Role {
  id                String                @id @default(dbgenerated("ulid_as_uuid()")) @db.Uuid
  name              String
  displayName       String
  description       String
  createdAt         Float                 @default(dbgenerated("gen_created_at()"))
  createdAtHK       String                @default(dbgenerated("gen_created_at_hk_timestr()"))
  updatedAt         Float                 @default(0)
  RelRolePermission Rel_Role_Permission[]
  RelProjectRole    Rel_Project_Role[]

  @@unique([name])
  @@index([id])
}

model Permission {
  id                String                @id @default(dbgenerated("ulid_as_uuid()")) @db.Uuid
  codeName          String
  displayName       String
  description       String
  createdAt         Float                 @default(dbgenerated("gen_created_at()"))
  createdAtHK       String                @default(dbgenerated("gen_created_at_hk_timestr()"))
  updatedAt         Float                 @default(0)
  RelRolePermission Rel_Role_Permission[]

  @@unique([codeName])
  @@index([id])
}

model Rel_Role_Permission {
  id           Int        @id @default(autoincrement())
  roleId       String     @db.Uuid
  Role         Role       @relation(fields: [roleId], references: [id])
  permissionId String     @db.Uuid
  Permission   Permission @relation(fields: [permissionId], references: [id])
  createdAtHK  String     @default(dbgenerated("gen_created_at_hk_timestr()"))
  createdAt    Float      @default(dbgenerated("gen_created_at()"))
  updatedAt    Float      @default(0)

  @@unique([permissionId, roleId])
  @@index([permissionId, roleId])
}
The JPA Equivalent Definition

Now let's try to model this relation by an @Entity class in jpa:

@Entity
@DynamicInsert
@Table(
    name = "Role",
    schema = "public"
)
class Role(
    @Id
    @Column(name = "id")
    @GeneratedValue(generator = "ulid_as_uuid")
    var id: UUID? = null,
    @Column(name = "name", nullable = false)
    var name: String,
    @Column(name = "displayName", nullable = false)
    var displayname: String,
    @Column(name = "description", nullable = false)
    var description: String,
    @Column(name = "createdAt")
    var createdat: Double? = null,
    @Column(name = "createdAtHK")
    var createdathk: String? = null,
    @Column(name = "updatedAt")
    var updatedat: Double? = null
) {
    @OneToMany
    @Cascade(CascadeType.ALL)
    @JoinTable(
        name = "\"Rel_Role_Permission\"",
        joinColumns = [JoinColumn(name = "roleId", referencedColumnName = "id")],
        inverseJoinColumns = [JoinColumn(name = "permissionId", referencedColumnName = "id")]
    )
    val permissions: MutableSet<Permission> = mutableSetOf()
}

  • Note that our relation table name must be enclosed by double quotes due to the presence of capital letters.

  • We use @Cascade(CascadeType.ALL) to ask jpa to help us persist the in-memory state of Rel_Role_Permission and Permission tables.

    Note that we even didn't mention the presense of the Permission table in our @JoinTable definition! It is implicit in our foreign-key relation (if defined correctly).

The Magic Happens

Now in the past when creating a relation with data-centric approach we need to

  1. persist an entity in Role
  2. persist an entity in Permission
  3. finally persist an entity in Rel_Role_Permission

Now the creation of these entities boils down to an object-oriented orchestration:

@Transactional
fun createRoleAndPermission () {
    val newRole = Role(name = "TEST_ROLE",
                       displayname = "Test Role",
                       description = "This is a test role")
    val newPermission = Permission(codename = "TEST_PERMISSION_$index",
                                   displayname = "Test Permission $index",
                                   description = "this is a test permission number $index")
    newRole.add(newPermission)
    roleRepository.save(newRole)
}

and 3 entities are persisted automatically.

The Problem

In spring boot there is a well-known trap for beginners called problem. Which basically means

  • query for fetching entities and
  • each of entities dispatches one additional query; causing a total of queries for a single data-fetching.

Let's explain it and solve it by a concrete example. But before that let's add the following to investigate the generated SQL:

# application.yml

spring:
  jpa:
    open-in-view: false
    show-sql: true
    properties:
      hibernate:
        format_sql: true

Now consider the following relations:

which by code is modelled as follows:

class Projectmember(
    @Id
    @Column(name = "id")
    @GeneratedValue(generator = "ulid_as_uuid")
    var id: UUID? = null,
    @Column(name = "userId", nullable = false)
    var userid: UUID,
    @Column(name = "roleId", nullable = false)
    var roleid: UUID,
    @Column(name = "createdAt")
    var createdat: Double? = null,
    @Column(name = "createdAtHK")
    var createdathk: String? = null,
) {
    @OneToOne
    @JoinTable(
        name = "Rel_Project_ProjectMember",
        joinColumns = [JoinColumn(name = "projectMemberId", referencedColumnName = "id")],
        inverseJoinColumns = [JoinColumn(name = "projectId", referencedColumnName = "id")]
    )
    var project: Project? = null
}

Suppose that we run

@Transactional
fun getMembersRecord() {
    return projectMemberRepository.findByUserid(UUID.fromString(userId))
}

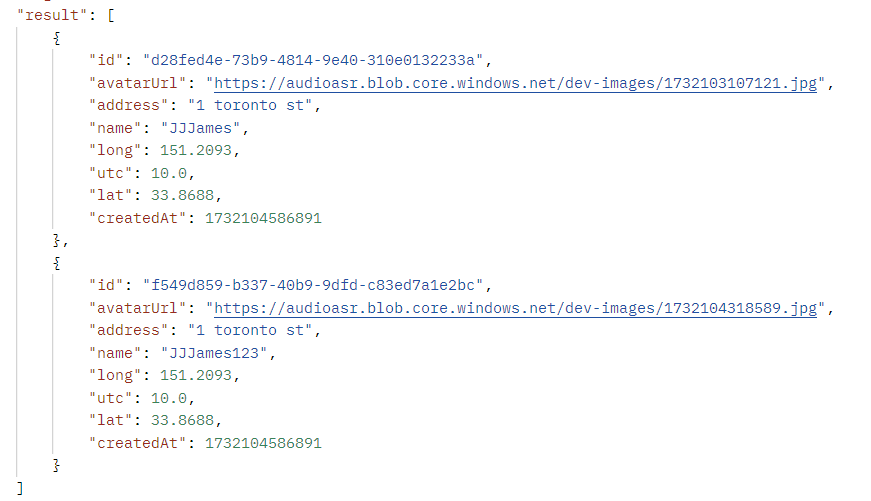

then we get two records from our database:

Trouble Happended. Since we directly return the result, behind the scene an eager-loading is triggered to dispatch 2 additional queries due to the @OneToOne relation (the case is worse if it is @OneToMany), resulting in queries:

Hibernate:
    select
        p1_0."id",
        p1_0."createdAt",
        p1_0."createdAtHK",
        p1_0."roleId",
        p1_0."userId",
        p1_1."projectId"
    from
        "public"."ProjectMember" p1_0
    left join
        "Rel_Project_ProjectMember" p1_1
            on p1_0."id"=p1_1."projectMemberId"
    where
        p1_0."userId"=?
Hibernate:
    select
        p1_0."id",
        p1_0."address",
        p1_0."avatarUrl",
        p1_0."companyId",
        p1_0."createdAt",
        p1_0."createdAtHK",
        p1_0."lat",
        p1_0."long",
        p1_0."name",
        p1_0."region",
        p1_0."userId",
        p1_0."utc"
    from
        "public"."Project" p1_0
    where
        p1_0."id"=?
Hibernate:
    select
        p1_0."id",
        p1_0."address",
        p1_0."avatarUrl",
        p1_0."companyId",
        p1_0."createdAt",
        p1_0."createdAtHK",
        p1_0."lat",
        p1_0."long",
        p1_0."name",
        p1_0."region",
        p1_0."userId",
        p1_0."utc"
    from
        "public"."Project" p1_0
    where
        p1_0."id"=?

To solve it, in our repository we add:

interface ProjectMemberRepository : CrudRepository<Projectmember, UUID> {
    // or @EntityGraph(attributePaths = ["project"])
    @Query("SELECT pm FROM Projectmember pm LEFT JOIN FETCH pm.project where pm.userid = ?1")
    fun findByUserid(userid: UUID): List<Projectmember>?
}

Now our new results are all fetched by simply one query!

Hibernate:
    select
        p1_0."id",
        p1_0."createdAt",
        p1_0."createdAtHK",
        p1_0."roleId",
        p1_0."userId",
        p2_0."id",
        p2_0."address",
        p2_0."avatarUrl",
        p2_0."companyId",
        p2_0."createdAt",
        p2_0."createdAtHK",
        p2_0."lat",
        p2_0."long",
        p2_0."name",
        p2_0."region",
        p2_0."userId",
        p2_0."utc"
    from
        "public"."ProjectMember" p1_0
    left join
        "Rel_Project_ProjectMember" p1_1
            on p1_0."id"=p1_1."projectMemberId"
    left join
        "public"."Project" p2_0
            on p2_0."id"=p1_1."projectId"
    where
        p1_0."userId"=?

Remarks.

  • Here we prefer to use the JPQL @Query approach because it provides a certain extent of type-safty (we even get an auto-completion based on the properties in the class of Projectmember) while @EntityGraph does not.

  • Also try to avoid having multiple left join fetch's in a single JPQL as it might be buggy and not performant:

    The error cannot simultaneously fetch multiple bags occurs in JPA when trying to eagerly fetch multiple collection relationships (like @OneToMany or @ManyToMany) in a single query. This is due to limitations in how JPA handles collections with JOIN fetches.

    You can define findByUseridFetchA, findByUseridFetchB with different left join fetch clauses based on your actual need.
