Networking in Linux Kernel: Part IX, Deep Dive of connect

April 21, 2026

C

Linux

Networking

Contents

1.

Overview of connect

In client side, after we create a socket, we connect to a remote backend via:

int main(){
    fd = socket(AF_INET, SOCK_STREAM, 0);
    connect(fd, ...);
    ......
}

There are many technical details behind this single call. We have discussed how a socket object is created, but in userspace we only hold the file descriptor fd as an integer.

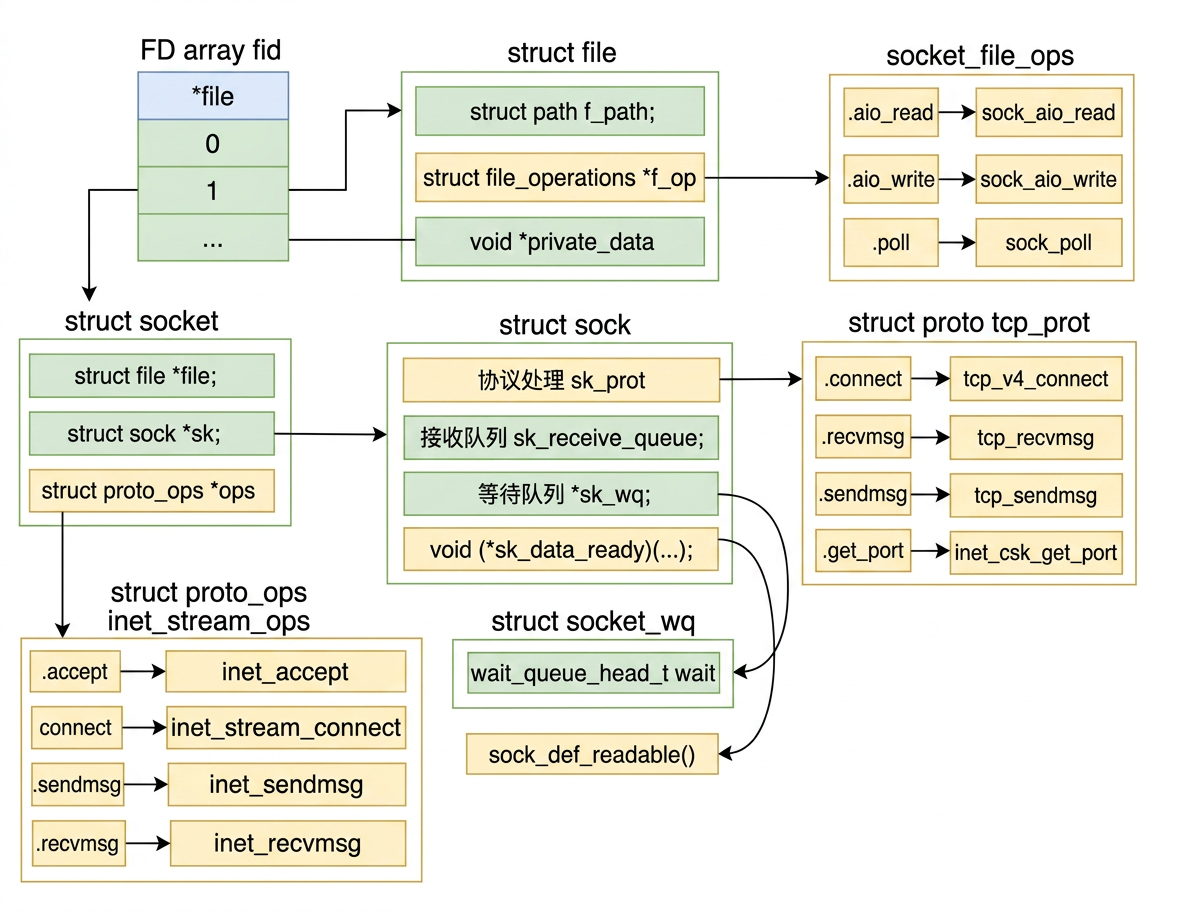

In the Linux kernel it is a combination of multiple objects — file, socket, sock, etc. — each with an ops function pointer set attached. The socket data structure looks like this:

2.

The Syscall Entry

When connect is invoked on the client side, the following system call in the Linux kernel is executed:

SYSCALL_DEFINE3(connect, int, fd, struct sockaddr __user *, uservaddr,
                int, addrlen)
{
    struct socket *sock;

    //根据用户fd查找内核中的socket对象
    sock = sockfd_lookup_light(fd, &err, &fput_needed);

    //进行connect
    err = sock->ops->connect(sock, (struct sockaddr *)&address, addrlen,
                            sock->file->f_flags);
    ......
}

sockfd_lookup_light resolves the integer fd into the kernel socket object.

3.

From inet_stream_connect to tcp_v4_connect

Since sock is of type AF_INET, sock->ops->connect points to inet_stream_connect:

int inet_stream_connect(struct socket *sock, ...)
{
    ...
    __inet_stream_connect(sock, uaddr, addr_len, flags);
}

int __inet_stream_connect(struct socket *sock, ...)
{
    struct sock *sk = sock->sk;

    switch (sock->state) {
    case SS_UNCONNECTED:
        err = sk->sk_prot->connect(sk, uaddr, addr_len);
        sock->state = SS_CONNECTING;
        break;
    }
    ...
}

A freshly created socket is in state SS_UNCONNECTED.

Inside the switch block, sk->sk_prot->connect points to tcp_v4_connect:

int tcp_v4_connect(struct sock *sk, struct sockaddr *uaddr, int addr_len)
{
    //设置 socket 状态为TCP_SYN_SENT
    tcp_set_state(sk, TCP_SYN_SENT);

    //动态选择一个端口
    err = inet_hash_connect(&tcp_death_row, sk);

    //函数用来根据sk中的信息，构建一个syn报文，并将它发送出去。
    err = tcp_connect(sk);
}

The socket state is immediately promoted to TCP_SYN_SENT. After that, inet_hash_connect selects an available local port, and tcp_connect builds and transmits the SYN packet.

4.

Ephemeral Port Selection: inet_hash_connect

int inet_hash_connect(struct inet_timewait_death_row *death_row,
                      struct sock *sk)
{
    return __inet_hash_connect(death_row, sk,
                              inet_sk_port_offset(sk),
                              __inet_check_established,
                              __inet_hash_nolisten);
}

inet_sk_port_offset(sk) computes a pseudo-random starting offset by hashing the 4-tuple (src IP, dst IP, dst port, net namespace) against a per-boot random secret. This means the port search begins at a different position on every connect() call, providing port randomization as a security measure.

__inet_check_established is passed as the collision-check callback. It verifies that the candidate port does not produce a duplicate 4-tuple in the established connections table.

5.

Inside __inet_hash_connect: Scanning the Port Range

int __inet_hash_connect(...)
{
    //是否绑定过端口
    const unsigned short snum = inet_sk(sk)->inet_num;

    //获取本地端口范围
    inet_get_local_port_range(&low, &high);
    remaining = (high - low) + 1;

    if (!snum) {
        //遍历查找
        for (i = 1; i <= remaining; i++) {
            port = low + (i + offset) % remaining;
            ...
        }
    }
}

If snum is zero the socket has not been bind()-ed manually, so the kernel must pick a port from the ephemeral range. inet_get_local_port_range reads net.ipv4.ip_local_port_range — defaults to 32768–60999 on most Linux systems.

Remark. If we call bind() before connect() on the client side, inet_sk(sk)->inet_num will already hold the bound port number, so snum is non-zero and the kernel skips the entire port-search loop — it simply uses whatever port we specified.

This is almost never desirable in client code: it prevents us from opening more than one simultaneous connection to the same remote endpoint, and it can collide with ports already in use. bind() before connect() is a server-side pattern for pinning a well-known port. In client code, we should leave it out and let the kernel handle ephemeral port selection.

Starting from offset, the loop tries every port in a circular fashion until an available one is found. The port availability check is:

int __inet_hash_connect(...)
{
    for (i = 1; i <= remaining; i++) {
        port = low + (i + offset) % remaining;

        //查看是否是保留端口，是则跳过
        if (inet_is_reserved_local_port(port))
            continue;

        //查找和遍历已经使用的端口的哈希链表
        head = &hinfo->bhash[inet_bhashfn(net, port,
                                          hinfo->bhash_size)];
        inet_bind_bucket_for_each(tb, &head->chain) {

            //如果端口已经被使用
            if (net_eq(ib_net(tb), net) &&
                tb->port == port) {

                //通过 check_established 继续检查是否可用
                if (!check_established(death_row, sk,
                                      port, &tw))
                    goto ok;
            }
        }

        //未使用的话
        tb = inet_bind_bucket_create(hinfo->bind_bucket_cachep, ...);
        ......
        goto ok;
    }

    return -EADDRNOTAVAIL;

ok:
    ......
}

inet_is_reserved_local_port skips any port listed in net.ipv4.ip_local_reserved_ports. We can add application ports there to prevent the kernel from accidentally picking them as ephemeral ports.

hinfo->bhash is a hash map recording all ports currently bound to a socket. A port absent from bhash is unconditionally available — inet_bind_bucket_create registers it and the loop exits via goto ok.

If a port is already in bhash, the loop does not give up immediately — it delegates to check_established to determine whether the port can be safely reused (see the next section).

If no port is available after exhausting the entire range, -EADDRNOTAVAIL is returned to userspace as:

Cannot assign requested address

When we encounter this error in production, the first thing to check is whether net.ipv4.ip_local_port_range is wide enough for our connection volume.

#define       EADDRNOTAVAIL   99

6.

Port Reuse and the 4-Tuple Uniqueness Rule

When a port is already in bhash, check_established (which resolves to __inet_check_established) is called:

static int __inet_check_established(struct inet_timewait_death_row *death_row,
                                    struct sock *sk, __u16 lport,
                                    struct inet_timewait_sock **twp)
{
    //找到哈希桶
    struct inet_ehash_bucket *head =
        inet_ehash_bucket(hinfo, hash);

    //遍历看看有没有四元组一样的，一样的话就报错
    sk_nulls_for_each(sk2, node, &head->chain) {
        if (sk2->sk_hash != hash)
            continue;

        if (likely(INET_MATCH(sk2, net, acookie,
                              saddr, daddr, ports, dif)))
            goto not_unique;
    }

unique:
    //要用了，记录，返回 0（成功）
    return 0;

not_unique:
    return -EADDRNOTAVAIL;
}

inet_ehash_bucket is the hash table of all sockets currently in ESTABLISHED or SYN_SENT state. For each bucket entry, INET_MATCH compares the full 4-tuple:

#define INET_MATCH(__sk, __net, __cookie, __saddr, __daddr, __ports, __dif) \
    (inet_sk(__sk)->inet_portpair == (__ports) && \
    (inet_sk(__sk)->inet_daddr    == (__saddr)) && \
    (inet_sk(__sk)->inet_rcv_saddr == (__daddr)) && \
    (!(__sk)->sk_bound_dev_if || \
    ((__sk)->sk_bound_dev_if == (__dif)) && \
      net_eq(sock_net(__sk), (__net))))

The 4-tuple checked is (local IP, local port, remote IP, remote port). A port is reusable as long as no existing connection shares the exact same 4-tuple. This is why the same local port can legitimately back multiple simultaneous connections — each goes to a different remote IP or remote port, making every 4-tuple globally unique.

7.

Why One Machine Can Have Far More Than 65535 Connections

The common misconception is that port numbers cap us at 65535 connections. In reality TCP uniqueness is governed by the full 4-tuple, not just the local port alone:

(local IP : local port, remote IP : remote port)

If we connect to N different servers, each local port can be reused once per distinct remote endpoint. With a port range of ~28000 ports and connections spread across many remote IPs and ports, one machine can sustain hundreds of thousands or even millions of simultaneous outgoing connections — the limit is memory and CPU, not the port number space.

8.

Building and Sending the SYN: tcp_connect

Once inet_hash_connect returns a valid port, tcp_v4_connect calls tcp_connect:

int tcp_connect(struct sock *sk)
{
    //申请并设置skb
    buff = alloc_skb_fclone(MAX_TCP_HEADER + 15, sk->sk_allocation);
    tcp_init_nondata_skb(buff, tp->write_seq++, TCPHDR_SYN);

    //添加到发送队列sk_write_queue
    tcp_connect_queue_skb(sk, buff);

    //实际发出syn
    err = tp->fastopen_req ? tcp_send_syn_data(sk, buff) :
                       tcp_transmit_skb(sk, buff, 1, sk->sk_allocation);

    //启动重传定时器
    inet_csk_reset_xmit_timer(sk, ICSK_TIME_RETRANS,
                              inet_csk(sk)->icsk_rto, TCP_RTO_MAX);
}

tcp_connect performs four things in sequence:

  • Allocates an skb and initialises it as a SYN segment.
  • Enqueues it onto sk_write_queue.
  • Calls tcp_transmit_skb to pass it down the network stack and out the NIC.
  • Arms the retransmit timer so the SYN is resent if no SYN-ACK arrives in time.

9.

The Retransmit Timer

void tcp_connect_init(struct sock *sk)
{
    //初始化为TCP_TIMEOUT_INIT
    inet_csk(sk)->icsk_rto = TCP_TIMEOUT_INIT;
    ......
}
#define TCP_TIMEOUT_INIT ((unsigned)(1*HZ))

The initial retransmit timeout TCP_TIMEOUT_INIT is defined as 1 second (older kernel versions used 3 seconds). If the SYN is lost and no SYN-ACK is received within this window, the kernel doubles the timeout (exponential backoff) and retransmits, up to the limit set by net.ipv4.tcp_syn_retries.

10.

Summary on connect

  1. What happens locally when connect is called. The kernel immediately promotes the socket state to TCP_SYN_SENT, selects an available ephemeral port via inet_hash_connect, builds a SYN segment, transmits it with tcp_transmit_skb, and arms a retransmit timer — all before any network round-trip completes.

  2. Port exhaustion and EADDRNOTAVAIL. inet_hash_connect scans net.ipv4.ip_local_port_range (default 32768–60999) in a randomised order. If every port in the range is occupied, it returns -EADDRNOTAVAIL ("Cannot assign requested address"). The first tuning knob to reach for in production is widening ip_local_port_range, e.g.:

    sysctl -w net.ipv4.ip_local_port_range="1024 65535"

  3. Reserving ports with ip_local_reserved_ports. If certain port numbers must not be consumed as ephemeral ports (for example, because an application listens on them intermittently), add them to net.ipv4.ip_local_reserved_ports. The kernel's inet_is_reserved_local_port check will skip them during the search loop, preventing accidental conflicts.

  4. One machine can sustain far more than 65 535 connections. TCP uniqueness is enforced on the full 4-tuple (local IP, local port, remote IP, remote port), not on the local port alone. The same local port can back many simultaneous connections as long as each goes to a distinct remote endpoint. With enough remote diversity, a single machine can maintain hundreds of thousands — or even millions — of concurrent outgoing connections; the real limits are memory and CPU, not the 16-bit port number space.

  5. Port-search cost grows as the range fills up. Because the search starts at a pseudo-random offset, a lightly loaded system finds a free port in one or two iterations. As ip_local_port_range approaches saturation, the loop must cycle through progressively more occupied entries before landing on a usable port, driving up CPU cost per connect call. Keeping the range comfortably larger than peak concurrent connections avoids this degradation.

  6. Do not call bind before connect on the client side. Once bind assigns a port, inet_sk(sk)->inet_num is non-zero and the kernel skips the entire port-search loop, locking the socket to that single port. This prevents more than one simultaneous connection to the same remote endpoint from the same port and risks colliding with ports already in use. bind before connect is a server-side pattern for pinning a well-known port; in client code, omit it and let the kernel manage ephemeral port selection.
